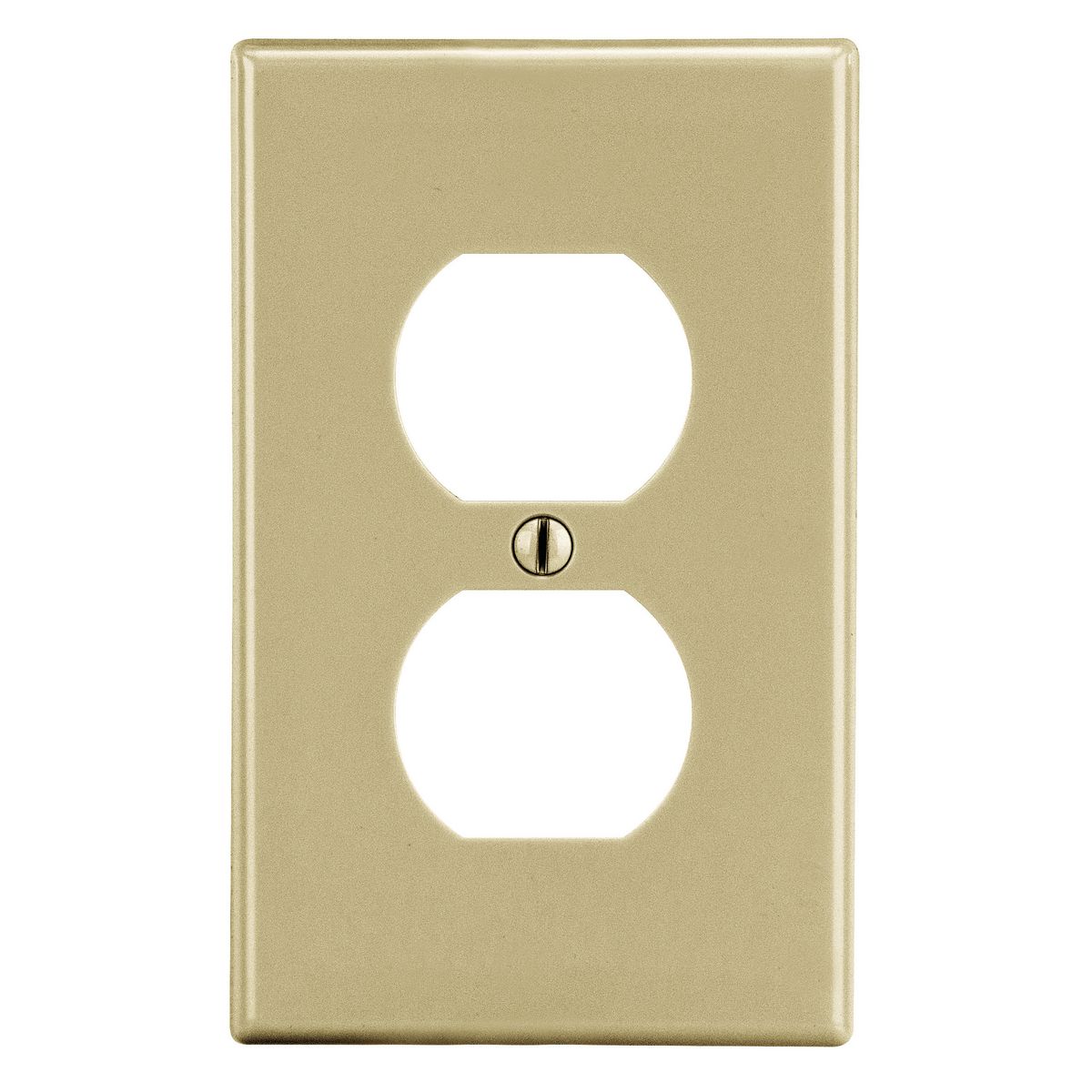

Hubbell PJ8I Wallplate M-Size 1-G 1) DUP Ivory

Product Description

The Hubbell PJ8I Wallplate is designed for use with duplex receptacles. It features a mid-size design with one gang configuration. The dimensions are four point nine four inches in length and three point one five inches in width. This wallplate is made of polycarbonate thermoplastic and is available in ivory color.

• Fits standard duplex receptacle boxes
• Vertical orientation with threaded mounting
• High impact and self-extinguishing construction

Product Highlights

This wallplate offers a smooth satin finish and a captive screw feature for quick installation.

Product Information

Standard Information

• Application: For duplex receptacle
• Color: Ivory

Technical Specifications

• Construction: High Impact/Self-Extinguishing
• Cutout: One point one three inches in length x one point three four inches in width Duplex Receptacle
• Finish: Smooth Satin
• Manufacturer Part Number: PJ8I
• Material: Polycarbonate Thermoplastic
• Mounting: Threaded
• Number of Gangs: 1
• Orientation: Vertical
• Size: Four point nine four inches in length x three point one five inches in width
• Standards/Approvals: UL 94-V2 Flammability Rating, cULus Listed
• Type: Mid-Size
