Hubbell PDB12LP PDB12LP HUB 1.25 DEEP 1 GANG LOW PROFILE BOX

Product Description

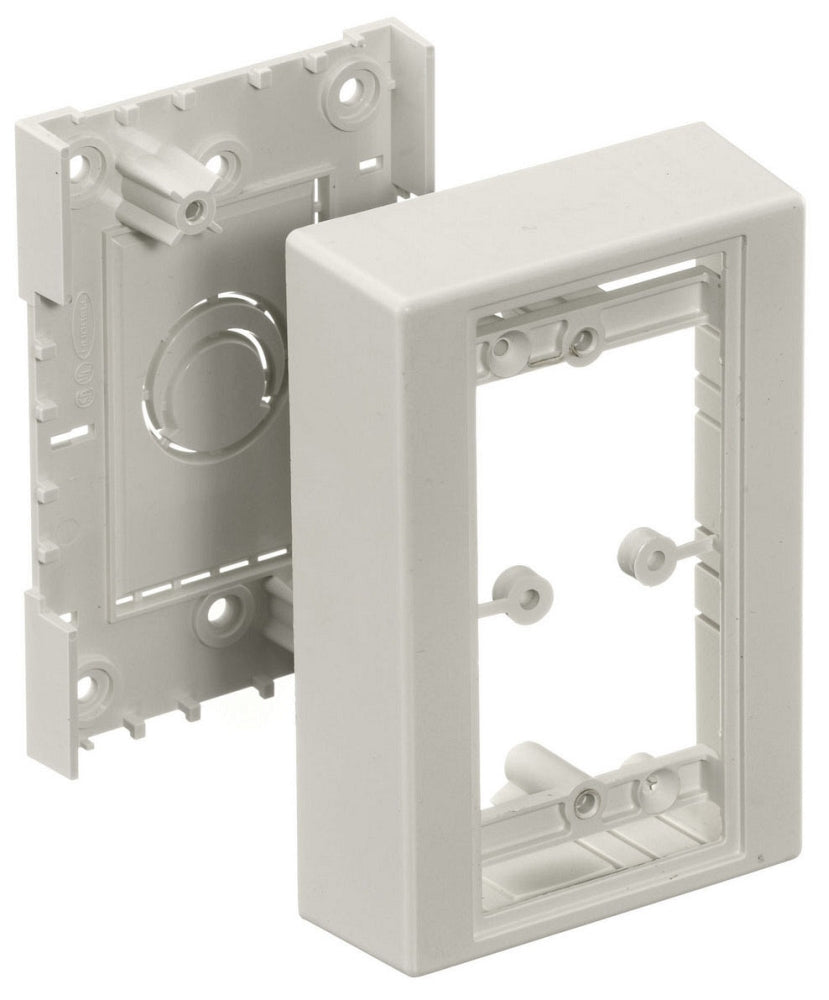

The Hubbell PDB12LP is a one-gang extruded low profile non-metallic standard device box. This product measures eight inches in length, five inches in width, and one point seven inches in height. It is suitable for use with PW2 WallTrak, LANTrak PL1, PremiseTrak PP1, and PolyTrak series non-metallic raceways. The Hubbell PDB12LP is designed for non-hazardous locations and operates efficiently in temperatures ranging from negative twenty-five point six degrees to one hundred fifty-eight degrees Fahrenheit.

• Designed for shallow switches and receptacles
• Eliminates the need for multiple box orders
• Without knockouts

Product Highlights

This device box simplifies installations and reduces inventory requirements.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358509039

Technical Specifications

• Application: Non-Hazardous Locations
• Manufacturer Part Number: PDB12LP
• Standards/Approvals: RoHS Compliant, UL File No. E118895/E119190, CSA C22.2 No. 62, TIA/EIA 569A, UL94 V-0 Flammability Rating, NEMA 1
• Type: 1-Gang Extruded Low Profile Non-Metallic Standard
