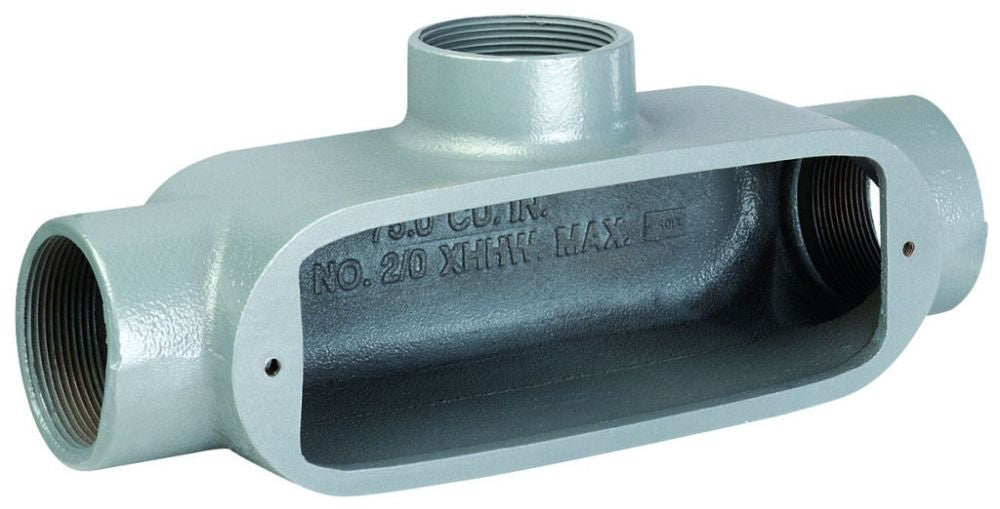

Hubbell OT-7 OT7 KIL 2-1/2 ELECTROLET CB

Product Description

The Hubbell OT-7 is a conduit body designed for effective access to conductors. It features a two and one-half inch hub and is made from aluminum with a powder-coated finish. The product dimensions are fifteen and one-eighth inches in length, five and three-fourths inches in width, and four inches in height.

• Tapered threaded hubs (NPT)
• Raintight when used with gasketed covers
• Suitable for wet locations with gasketed covers

Product Highlights

This product is perfect for providing access to conductors for pulling, splicing, and maintenance, as well as being threaded for Rigid/IMC conduit.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78393653007

Technical Specifications

• Application: Used to provide access to conductors for pulling, splicing, and maintenance and threaded for Rigid/IMC Conduit
• Color: Gray
• Connection Type: Tapered NPT
• Dimensions: 15-1/8 in L x 5-3/4 in W x 4 in H
• Finish: Powder Coated
• Hub Size: 2-1/2 in
• Material: Aluminum
• Number of Hubs: 3
• Series: O Series
• Standards/Approvals: UL File No. E3397|CSA LR11852
• Type: Type T
