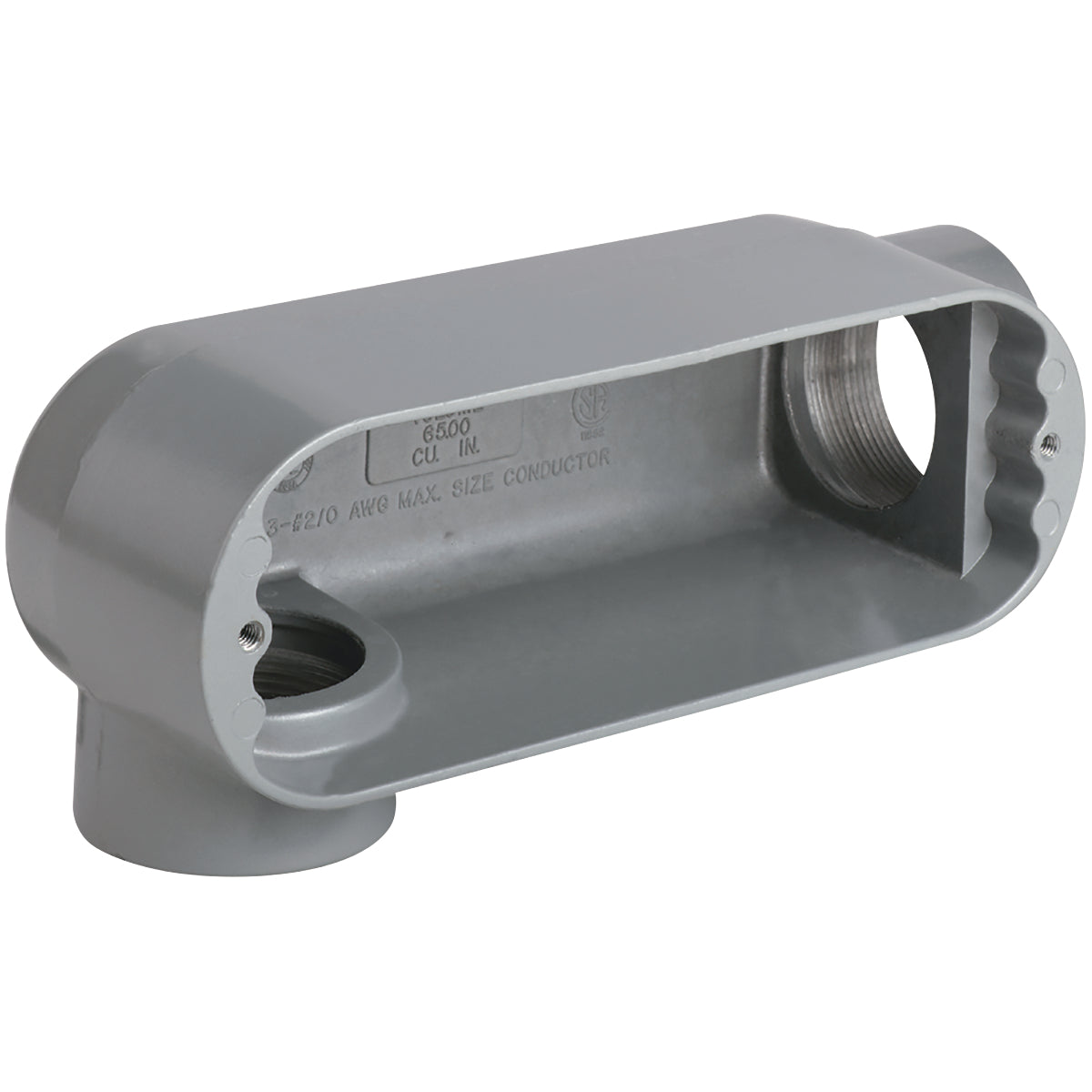

Hubbell OLR-3 O Series Type LR Conduit Body 1 in Hub 12 cu-in Capacity

Product Description

The Hubbell OLR-3 is a conduit body designed for efficient installation and maintenance. It features two hubs and is suitable for thread connection. This product is crafted from aluminum with a powder-coated finish to enhance durability and resistance to the elements.

• Two hubs for versatile connection options
• 12 cubic inches capacity for wire and cable management
• Raintight when used with gasketed covers

Product Highlights

This product is engineered for pulling, splicing, and maintenance tasks. It ensures reliable electrical connections and is compatible with rigid and IMC conduit systems.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: OLR-3

Technical Specifications

• Application: For pulling, splicing, and maintenance
• Color: Gray
• Connection Type: Thread
• Dimensions: 6-1/4 inches L x 2-9/16 inches W x 2 inches H
• Finish: Powder Coated
• Hub Size: 1 inch
• Material: Aluminum
• Number of Hubs: 2
• Series: O Series
• Standards/Approvals: UL File No. E3397 | CSA LR11852
• Type: Type LR
