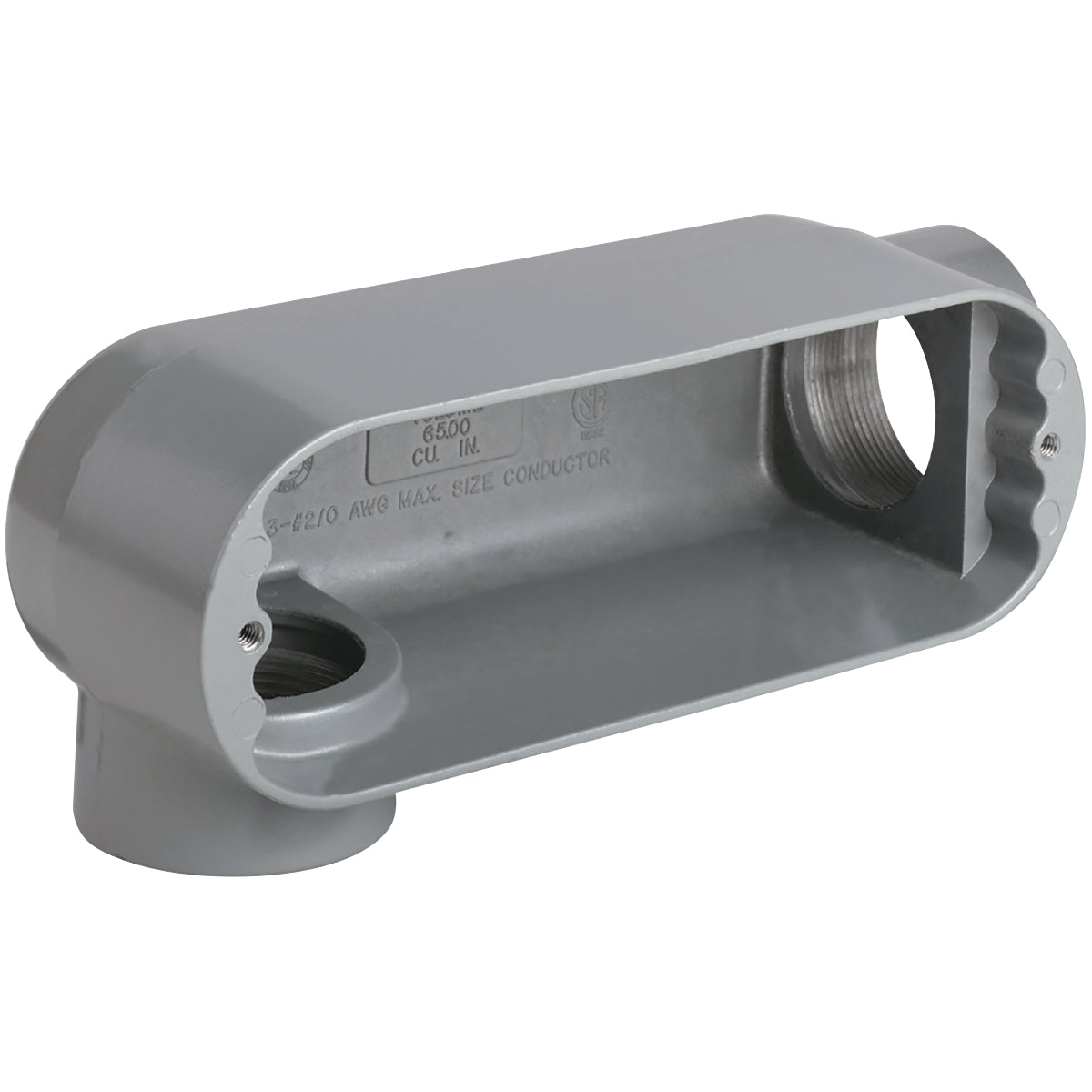

Hubbell OLR-2 O Series Type LR Conduit Body 3/4 in Hub

Product Description

The Hubbell OLR-2 is a conduit body designed for efficient access to conductors. It features a three-quarter inch hub and an overall capacity of seven cubic inches. This aluminum conduit body is suitable for rigid and IMC conduit applications. Its construction ensures durability and reliability in various conditions.

• Electrostatically applied powder coated for corrosion resistance
• Interchangeable with competitive products
• Designed for wet locations when used with gasketed covers

Product Highlights

The OLR-2 allows easy access for pulling, splicing, and maintenance.

Product Information

Standard Information

• Manufacturer: Hubbell
• Model Number: OLR-2

Technical Specifications

• Application: Rigid/IMC Conduit
• Color: Gray
• Connection Type: Thread
• Dimensions: 5-3/8 in L x 2-3/16 in W x 1-5/8 in H
• Finish: Powder Coated
• Hub Size: 3/4 in
• Material: Aluminum
• Number of Hubs: 2
• Series: O Series
• Standards/Approvals: PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|UL File No. E3397|CSA File No. LR11852|Federal Specification W-C-586D/A-A 50563|NEC 501.10(b) Class I Div 2, 502.10, 503.10
