Product Description

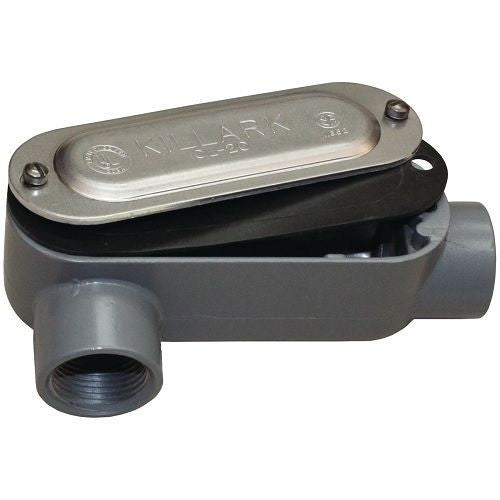

The Hubbell OLR-1CG is a conduit body designed for effective management of electrical wiring. It features a half-inch hub and is suitable for wet locations when used with gasketed covers. This product is made from aluminum and has a powder-coated finish, ensuring durability and resistance to the elements.
- Two hubs for versatile installation options
- Interchangeable with competitive products
- Electrostatically applied coating for enhanced performance
Product Highlights
Use this conduit body for pulling, splicing, and maintenance tasks in electrical installations.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: OLR-1CG
Technical Specifications
-
Application: For pulling, splicing, and maintenance
-
Color: Gray
-
Connection Type: Thread
-
Dimensions: 4-5/8 in L x 2 in W x 1-3/8 in H
-
Finish: Powder Coated
-
Hub Size: 1/2 in
-
Material: Aluminum
-
Number of Hubs: 2
-
Series: O Series
-
Standards/Approvals: UL File No. E3397 | CSA File No. LR11852 | Federal Specification W-C-586D/A-A 50563 | NEC 501.10(b)/502.10/503.10 Class I Div 2
-
Type: Type LR
