Hubbell OLL-8 OLL8 KIL 3-IN ELECTROLET CB

Product Description

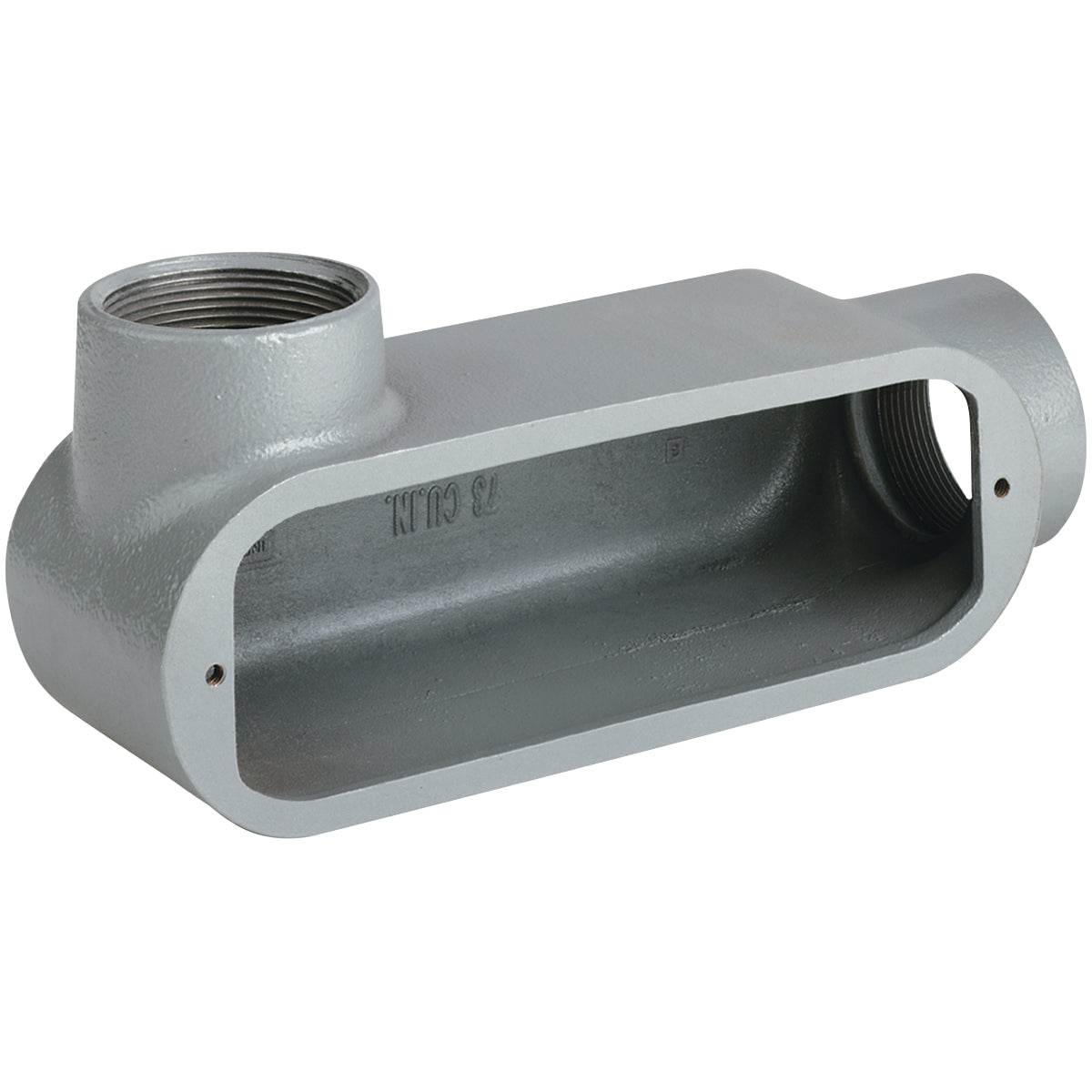

Hubbell OLL-8 is a conduit body designed for Rigid and IMC conduit applications. This Type LL Conduit Body features a three-inch hub and provides access for pulling, splicing, and maintenance of electrical conductors. It has a capacity of one hundred seventy-three cubic inches and is made from copper-free aluminum, ensuring durability and compliance with various standards.

• Capacity: 173 cubic inches
• Made from copper-free aluminum
• Threaded connection type for easy installation

Product Highlights

The OLL-8 is suitable for wet locations when used with gasketed covers and offers interchangeable compatibility with competitive products. The product includes stainless steel screws on both stamped and cast covers for added security.

Product Information

Standard Information

• Manufacturer: Hubbell
• Type: Type LL

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Color: Gray
• Connection Type: Thread
• Dimensions: Thirteen and eleven sixteenths inches long x five and three fourths inches wide x four and three fourths inches high
• Finish: Powder Coated
• Hub Size: Three inches
• Manufacturer Part Number: OLL-8
• Material: Aluminum
• Number of Hubs: Two
• Series: O Series
• Standards/Approvals: UL File No. E3397 | CSA File No. LR11852 | Federal Specification W-C-586D/A-A 50563 | NEC 501.10(b) Class I Div 2, 502.10, 503.10
