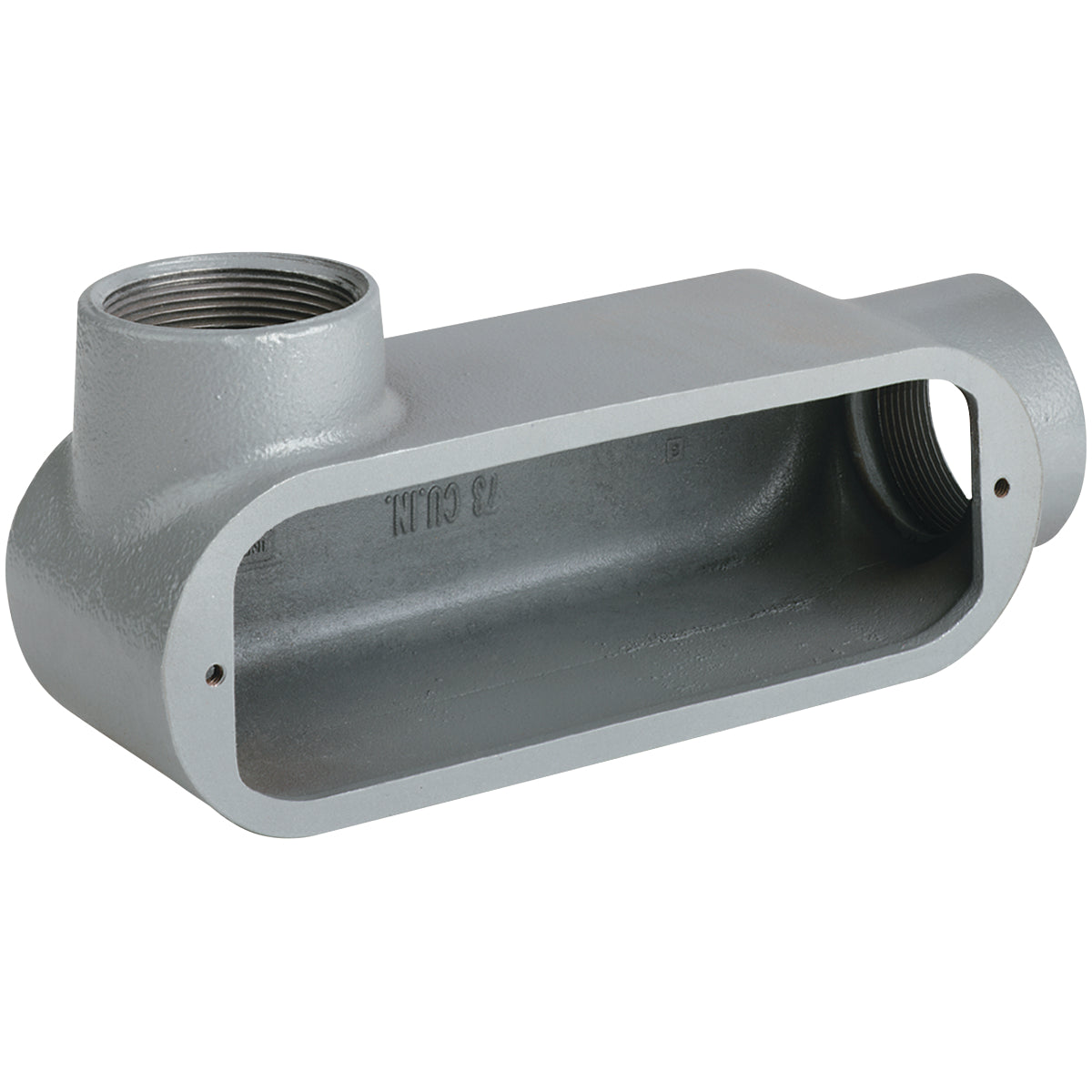

Hubbell OLL-3 O Series Type LL Conduit Body 1 in Hub 12 cu-in Capacity

Product Description

The Hubbell OLL-3 is a conduit body designed for type LL applications. This model features one inch hub size and provides secure connections for conductors. It has a twelve cubic inch capacity, making it suitable for various electrical installations.

• Access to conductors for pulling and maintenance
• Copper free aluminum for durability
• Threaded hubs for secure connections

Product Highlights

This conduit body is designed for use in rigid and IMC conduits. The aluminum material provides strength, while the powder-coated finish offers protection against corrosion.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78393649043

Technical Specifications

• Application: Rigid/IMC Conduit
• Color: Gray
• Connection Type: Thread
• Dimensions: 6-1/4 inches L x 2-9/16 inches W x 2 inches H
• Finish: Powder Coated
• Hub Size: 1 inch
• Material: Aluminum
• Number of Hubs: 2
• Series: O Series
• Standards/Approvals: PROP65, UL File No. E3397, CSA LR11852
• Type: Type LL
