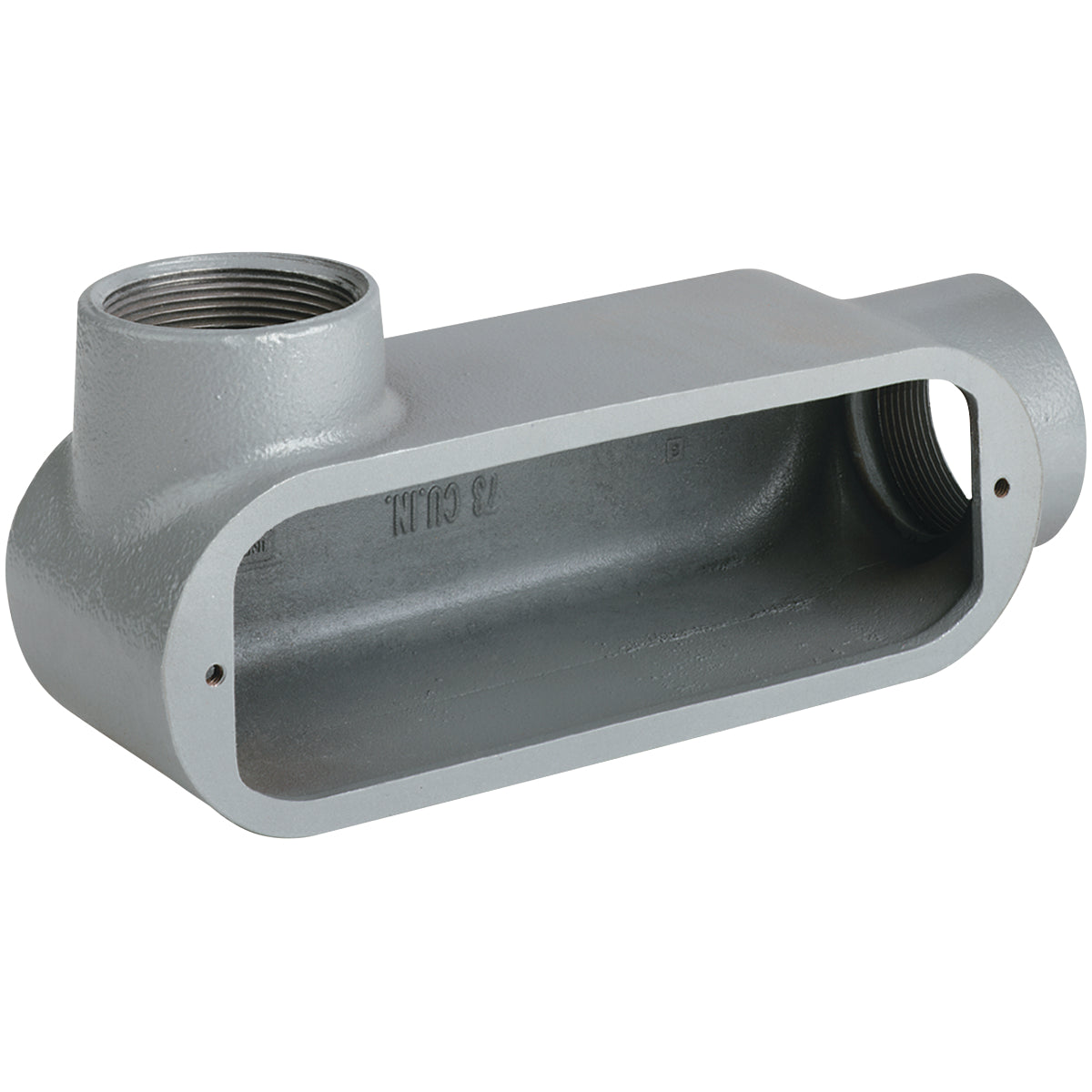

Hubbell OLL-2 O Series Type LL Conduit Body 3/4 in Hub

Product Description

The Hubbell OLL-2 is a conduit body designed for Rigid/IMC conduit applications. This Type LL conduit body features a three-quarter inch hub and has a capacity of seven cubic inches. It is manufactured from aluminum with a powder-coated finish for durability.

• Access for pulling, splicing, and maintenance
• Suitable for wet locations with gasketed covers
• Made from copper-free aluminum

Product Highlights

The OLL-2 provides reliable access to conductors while ensuring strong protection in various conditions, making it a suitable choice for electrical installations.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: OLL-2

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Color: Gray
• Connection Type: Thread
• Dimensions: 5-3/8 in L x 2-3/16 in W x 1-5/8 in H
• Finish: Powder Coated
• Hub Size: 3/4 in
• Material: Aluminum
• Number of Hubs: 2
• Series: O Series
• Standards/Approvals: UL File No. E3397 | CSA File No. LR11852 | Federal Specification W-C-586D/A-A 50563 | NEC 501.10(b) Class I Div 2, 502.10, 503.10
• Type: Type LL
