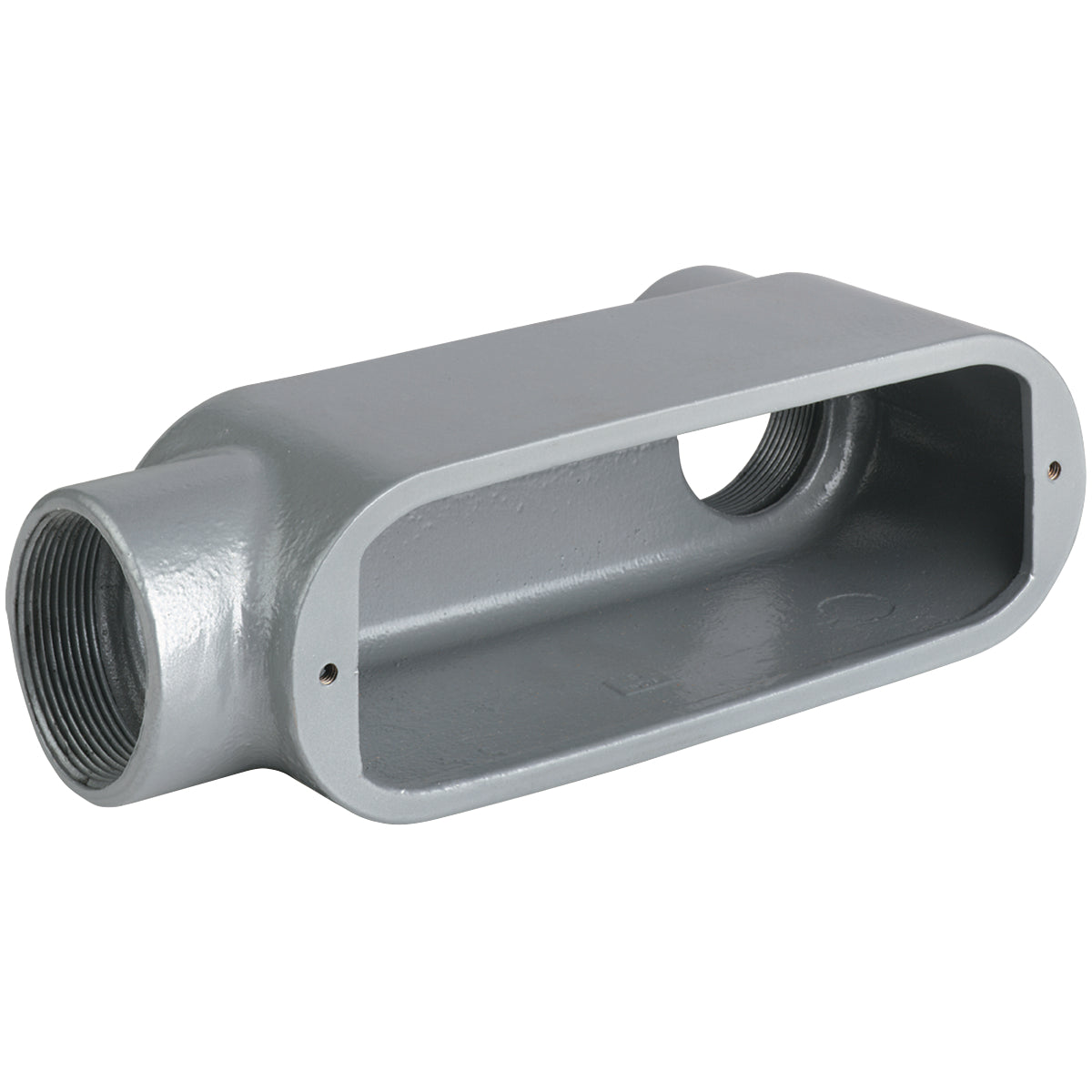

Hubbell OLB-8 OLB8 KIL 3-IN ELECTROLET CB 3 in Replacement MPN

Product Description

The Hubbell OLB-8 is a conduit body designed for electrical applications. With a three-inch hub and a capacity of one hundred seventy-three cubic inches, this product is suitable for various installation needs. It is made from copper-free aluminum and features a powder-coated finish for enhanced durability.

• Type LB conduit body
• Use to provide access to conductors for maintenance
• NPT connection type for secure fittings

Product Highlights

This conduit body is ideal for use in pulling, splicing, and maintaining conductors.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78393649032

Technical Specifications

• Application: Use to provide access to conductors for pulling, splicing, maintenance, threaded for rigid conduit and IMC
• Connection Type: NPT
• Material: Copper Free Aluminum
• Hub Size: 3 in
• Number of Hubs: 2
• Dimensions: 13-15/16 in L x 4-3/8 in W x 6-1/2 in H
• Finish: Powder Coated
• Standards/Approvals: UL File No. E3397|CSA File No. LR11852|Federal Specification W-C-586D/A-A 50563|NEC Approved|NEC 501.10(b)/502.10/503.10 Class I Div 2
