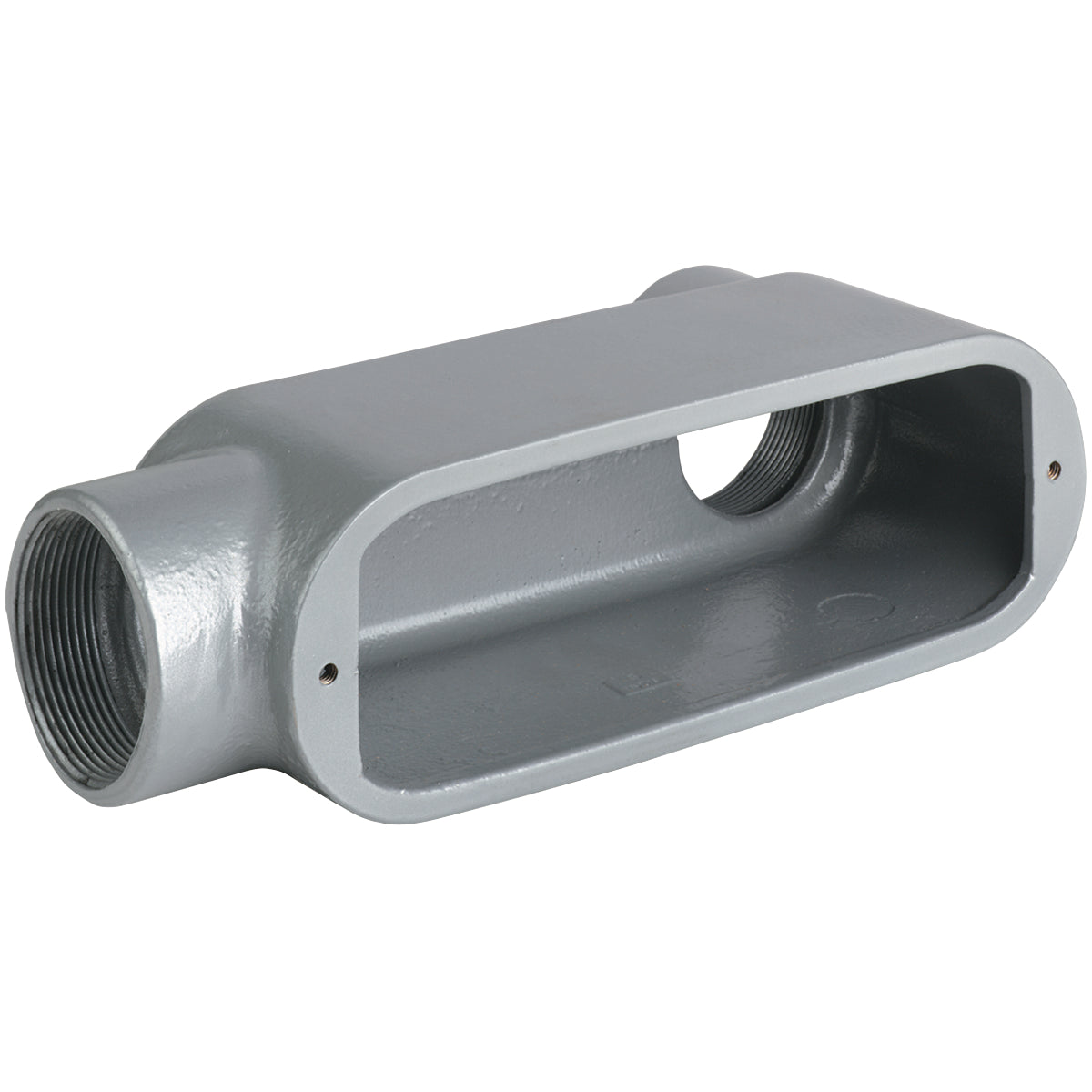

Hubbell OLB-6 O Series Type LB Conduit Body, 2 in Hub, 70 cu-in Capacity

Product Description

The Hubbell OLB-6 is a conduit body designed for secure installations in various applications. This Type LB conduit body features a two-inch hub and accommodates up to seventy cubic inches of capacity. Made from copper-free aluminum, it is suitable for wet locations when used with gasketed covers. The powder-coated finish aids in corrosion resistance and durability.

• Constructed from copper-free aluminum
• Two 2 inch hubs designed for thread connections
• Suitable for use in rigid and IMC conduit applications

Product Highlights

The OLB-6 conduit body is part of the O Series, known for its compact size and robust construction.

Product Information

Standard Information

• Application: Rigid/IMC Conduit Applications
• Color: Gray

Technical Specifications

• Dimensions: 10 in L x 3-1/8 in W x 4-13/16 in H
• Finish: Powder Coated
• Hub Size: 2 in
• Number of Hubs: 2
• Manufacturer Part Number: OLB-6
• Material: Aluminum
• Connection Type: Thread
• Standards/Approvals: UL File No. E3397|CSA Certified|Federal Specification W-C-586D/A-A 50563|CSA File No. LR11852|NEC 501.10(b) Class I Div 2, 502.10, 503.10
