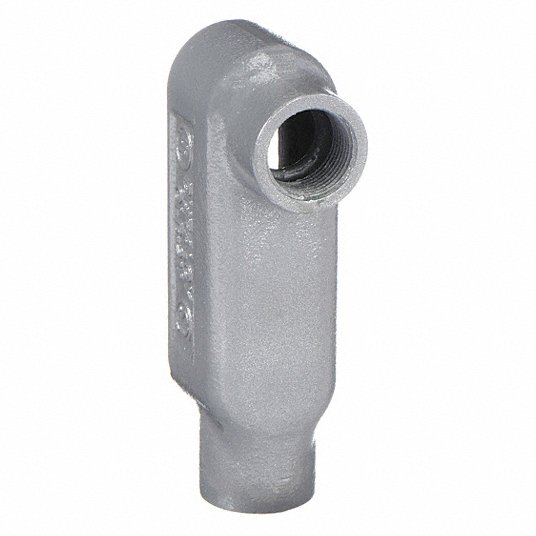

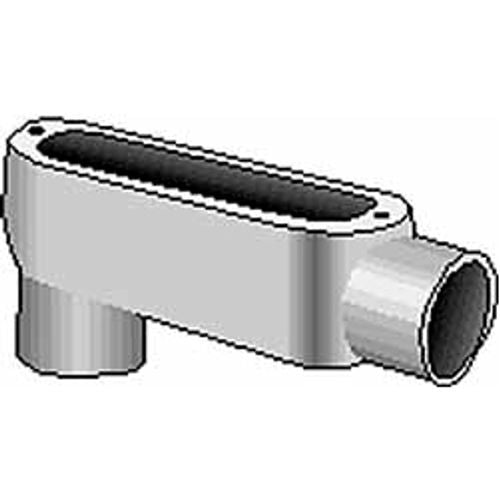

Hubbell OLB-5M Form 35, LB Body, 1-1/2 inches Trade, IMC, Rigid Malleable Iron Conduit Body

Product Description

The HUBBELL OLB-5M is a Form 35, LB Body, designed for 1-1/2" trade size IMC and rigid conduit. Constructed from malleable iron, this conduit body provides access to conductors for pulling, splicing, and maintenance. It is suitable for use in hazardous locations when installed according to NEC standards.

• Iron construction
• Raintight when used with gasketed covers
• Malleable iron suitable for use in concrete

Product Highlights

Provides access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: OLB-5M
• Country of Origin: India

Technical Specifications

• Size: 1-1/2"
• Material: Iron
• Type: LB
• Product Type: Conduit Body
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Catalog Number: OLB-5M
• Color: Gray
• Series: O Series
• UPC: 783936480466
• Height: 4 in
• Hub Size: 1-1/2 in
• Length: 10 in
• Weight: 3.17 lb
• Width: 3 in
• CSA File Number: LR11852
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• UL File Number: E3397
• Number of Hubs: 2
• Finish: Powder Coated
• Form: 5
• Capacity: 36 cu-in
• Standard & Approvals: Class I, Div. 2, 502.10 and 503.10, CSA LR11852, UL E3397
• Compatible Conduit Trade Size: 1-1/2 in
• Trade Size: 1-1/2 in
• Body Style: LB
• Connection Orientation: 90
• Connection Type: Threaded
• Body Capacity: 36 cu in
• Hub Style: Threaded
• Type of Body: Conduit Outlet Body
• Standards: CSA; UL
• Includes: Stainless Steel Screws
• For Use With: IMC; RMC
• Back Type: Flat
• Overall Width: 3 in
• Overall Length: 10 in
• Overall Height: 4 in
• Thread Size: 1-1/2 in
• Thread Gender: Female
• Thread Type: NPT
• Hazardous Location: Yes
• Item: Conduit Outlet Body
• Manufacturer: Hubbell
