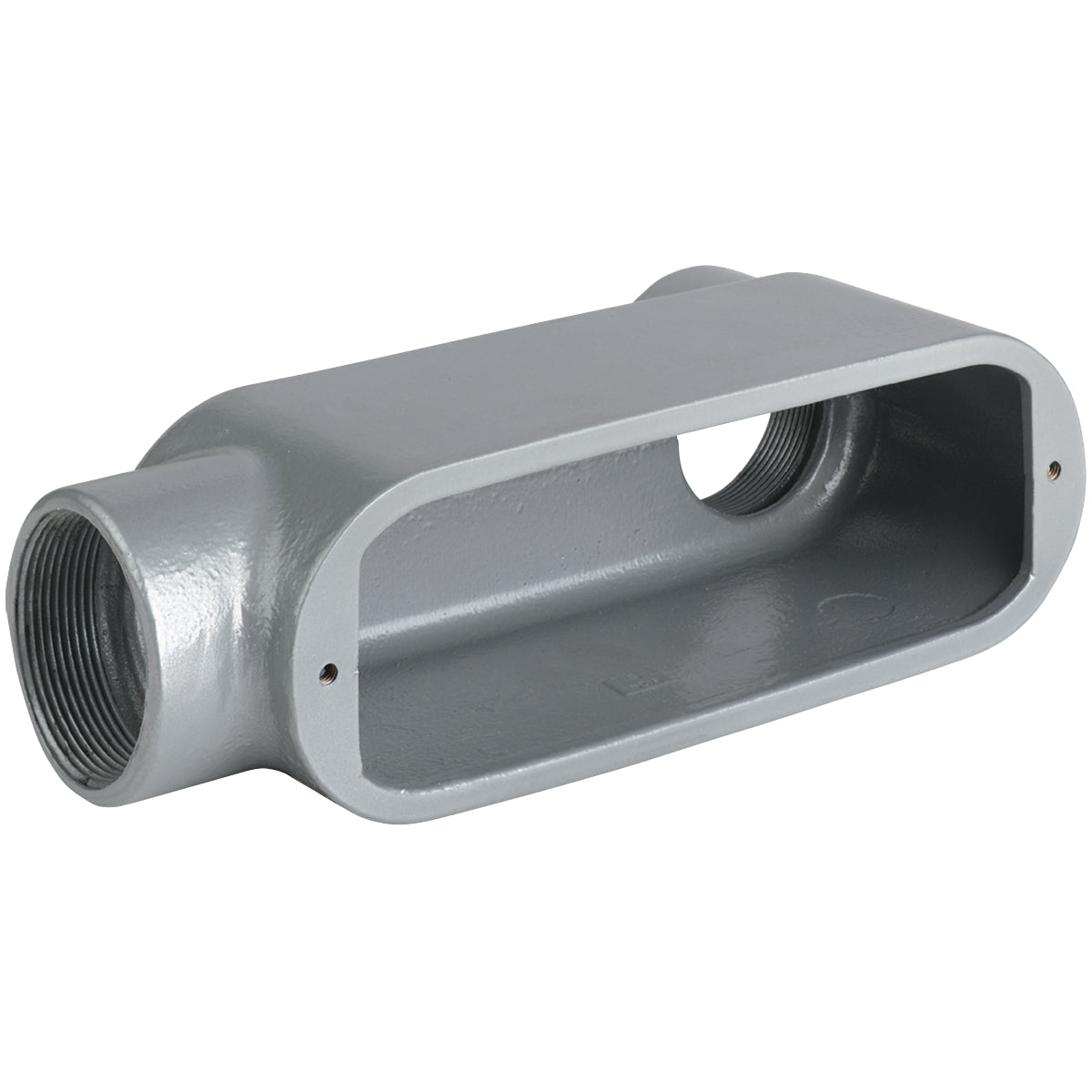

Hubbell OLB-1 OLB1 KIL 1/2 ELECTROLET CB 1/2 in

Product Description

The Hubbell OLB-1 is a conduit body designed for Rigid and IMC conduit applications. This product features a half-inch hub and provides a four cubic-inch capacity. Made from aluminum with a powder-coated finish, it is suitable for various environments. The OLB-1 is made to be durable, ensuring easy access for conductors during installation and maintenance.

• Tapered threaded hubs (NPT)
• Raintight with gasketed covers
• Suitable for use in hazardous locations

Product Highlights

Utilized in electrical installations, the OLB-1 eases the process of pulling and splicing conductors in tight spaces.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: OLB-1

Technical Specifications

• Type: Type LB
• Color: Gray
• Dimensions: 4-17/32 in L x 1-3/8 in W x 2-9/32 in H
• Hub Size: 1/2 in
• Material: Aluminum
• Number of Hubs: 2
• Series: O Series
• Finish: Powder Coated
• Connection Type: Thread
• Standards/Approvals: UL File No. E3397, Federal Specification W-C-586D/A-A 50563, CSA File No. LR11852
