Hubbell OC-8 O Series Type-C Conduit Body, 3 in Hub + Replacement MPN

Product Description

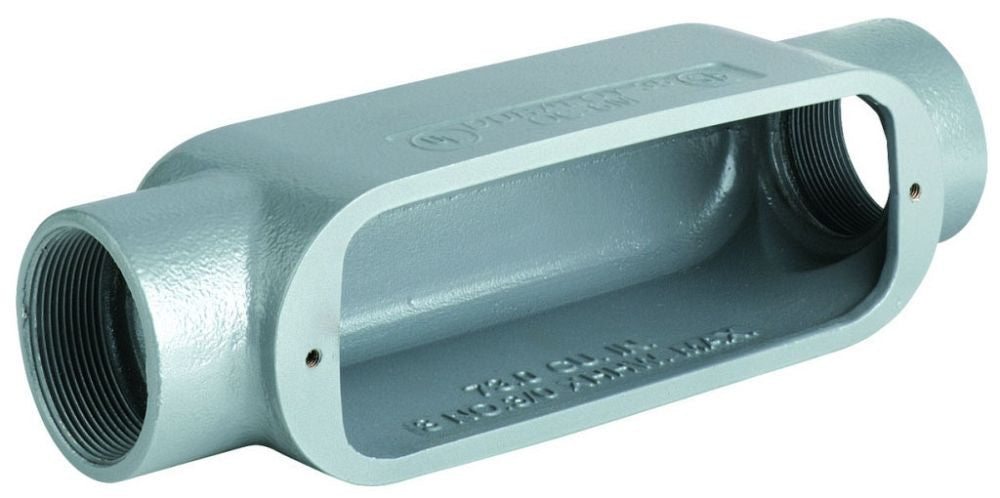

The Hubbell OC-8 conduit body is designed for use with rigid and intermediate metal conduit. This Type-C conduit body provides access to conductors for pulling, splicing, and maintenance. It features two hubs, and with a capacity of one hundred eighty-one cubic inches, it supports efficient and effective installation.

• Interchangeable with competitive products
• Suitable for hazardous locations when used properly
• Constructed from copper-free aluminum

Product Highlights

This conduit body is valuable for both general and specialized electrical installations, particularly in wet locations.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: OC-8

Technical Specifications

• Type: Type-C
• Color: Gray
• Material: Aluminum
• Finish: Powder Coated
• Hub Size: 3 in
• Dimensions: 15-1/8 in L x 4-3/8 in W x 4-3/4 in H
• Application: Access to conductors for pulling, splicing, and maintenance
• Number of Hubs: 2
• Connection Type: Tapered NPT
• Standards/Approvals: UL File No. E3397, Federal Specification W-C-586D/A-A 50563, CSA File No. LR11852, NEC 501.10(b) Class I Div 2, 502.10, 503.10
