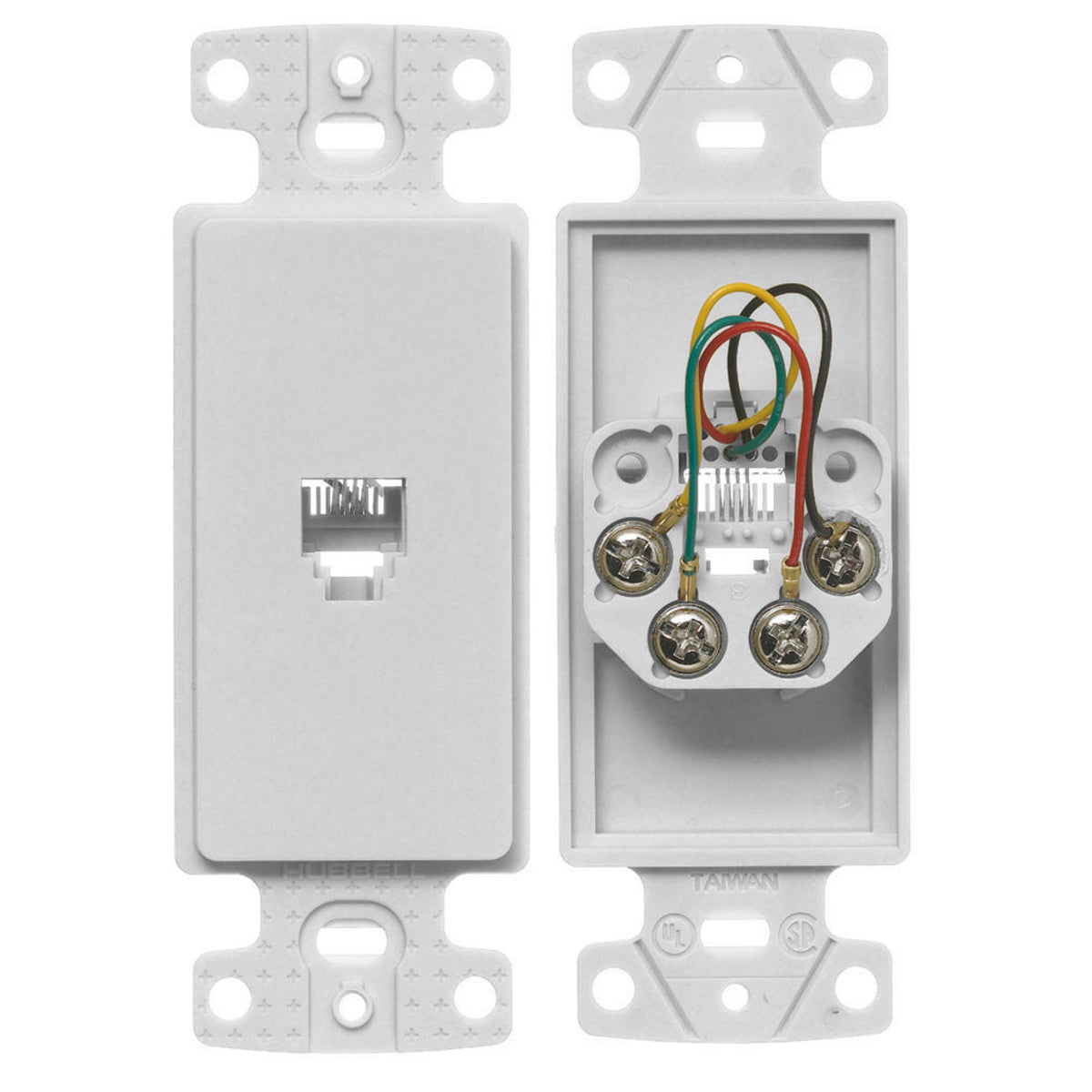

Hubbell NS770W HUBBELL PLATE, FRAME,W/JK,6POS,4CON,S/TERM,WH

Product Description

The Hubbell NS770W is a molded-in decorator frame designed for one-gang applications. This wiring device is part of the NS series and features a screw terminal connection and threaded mounting. It accommodates six-position four-conductor jacks, suitable for voice and data communication applications. The frame is made from high impact resistant thermoplastic, ensuring durability.

• Compatible with standard 1-gang boxes
• Designed for indoor use, requires protection for outdoor applications
• Operates in temperature ranges from negative forty degrees to seventy-five degrees Celsius

Product Highlights

The NS770W provides seamless integration for both communication and data applications thanks to its thoughtful design and robust construction.

Product Information

Standard Information

• Color: White
• Type: 1-Gang Standard

Technical Specifications

• Application: Communication and Indoor Dry Environment Applications; Voice and Data Communication Applications
• Connection Type: Screw Terminal
• Jack Position: 6-Position 4-Conductor
• Mounting Type: Threaded
• Standards/Approvals: ANSI Specified, CSA Certified, FCC Part 68, RoHS Compliant, TIA-568-C.2, UL Listed
• Manufacturer Part Number: NS770W
