Product Description

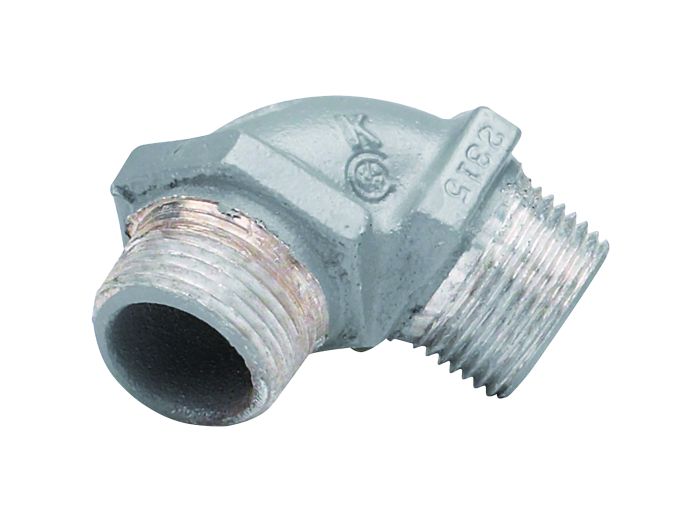

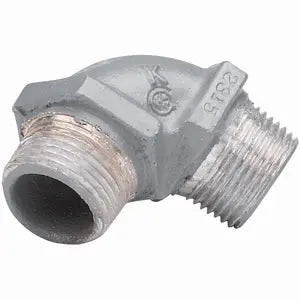

The HUBBELL MM90-1 is a 90° 1/2" Aluminum Elbow with male/male connections. It is threaded for rigid conduit or IMC. The smooth integral bushings prevent damage to wires. It changes direction in rigid or IMC conduit systems.
- Threaded for rigid conduit or IMC
- Smooth integral bushings to prevent damage to wires
- Electrostatically Applied Powder Coating
Product Highlights
The HUBBELL MM90-1 elbow is ideal for changing direction in rigid or IMC conduit systems while protecting wires.
Product Information
Standard Information
-
Brand: HUBBELL
-
Manufacturer Part Number: MM90-1
Technical Specifications
-
Application: To change direction in rigid or IMC conduit systems.
-
Catalog Number: MM-90-1
-
Color: Gray
-
Finish Type: Powder Epoxy Paint
-
Material: Aluminum, Copper Free (less than 4/10 of 1%)
-
Series: MM Series
-
Type: 90
Elbow
-
UPC: 783936407005
-
Hub Size: 1/2"
-
CSA File Number: LR11716
-
Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D
Class II, Divisions 1 & 2, Groups E, F, G
Class III, Divisions 1 & 2
-
UL File Number: E10514
-
Manufacturer Part Number: MM-90-1
-
Manufacturer: Killark
-
Product Series: MM
-
Family Series: Killark Fittings, MM Series
-
Description: MALE/MALE 90 1/2in. ELBOW (HF)
-
Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
-
Connection Type: Male to Male Thread
-
Angle: 90
-
Trade Size: 1/2 "
-
Composition: Metallic
-
Approvals: CSA, UL
