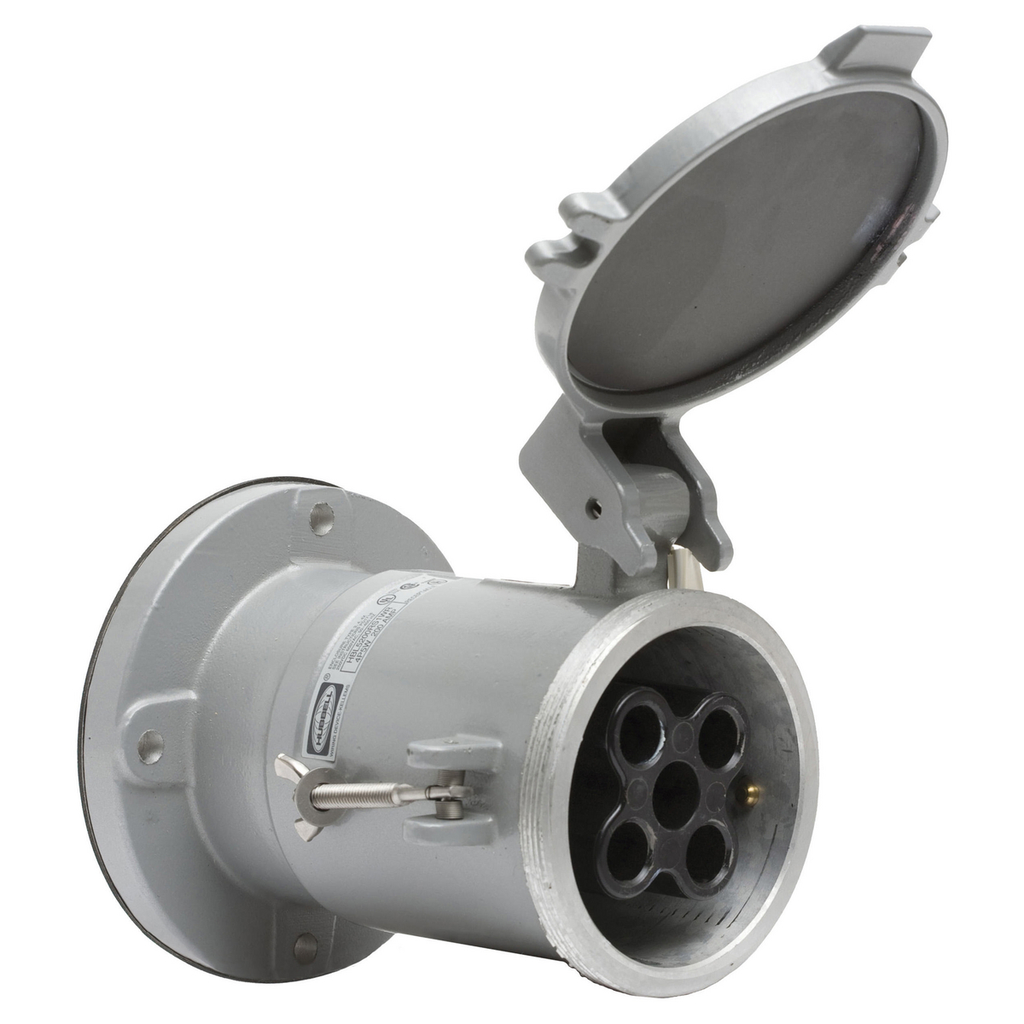

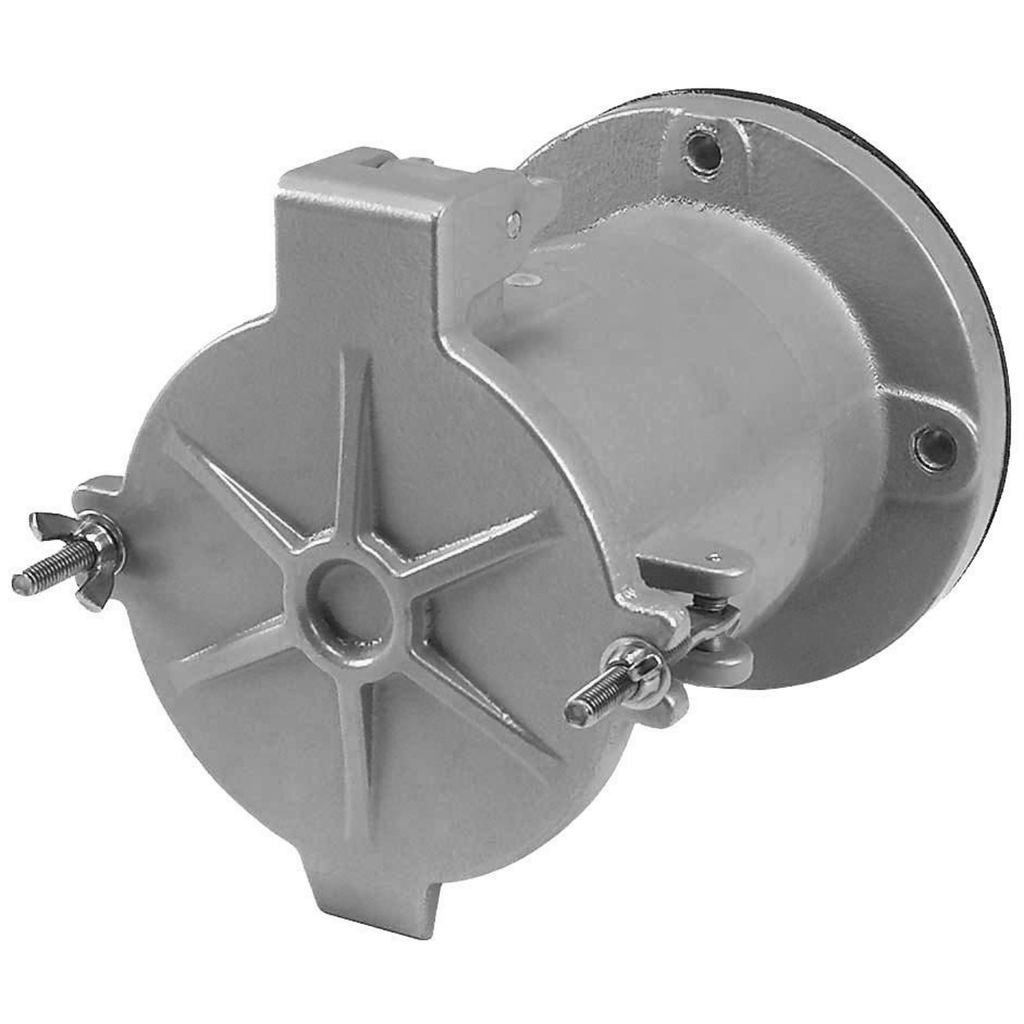

Hubbell M5200RS1 Marine PS, Ins, Repl, 600/250 Volt AC/DC

Product Description

The Hubbell M5200RS1 is a pin and sleeve receptacle designed for heavy-duty use. It features a waterproof construction, making it suitable for marine applications. This receptacle has a voltage rating of 600/250 volts AC/DC and operates within a frequency range of 50 to 400 Hertz.

• Water-tight design for durability.
• Rated for 200 amps and compatible with four poles and five wires.
• Operating temperature range from minus forty to seventy-five degrees Celsius.

Product Highlights

Designed for rigorous conditions, this receptacle accommodates various industrial applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358516183

Technical Specifications

• Voltage Rating: 600/250 Volt AC/DC
• Current Rating: 200 Amp
• Number of Poles: 4
• Number of Wires: 5
• Material: Polybutylene Terephthalate
• Approval: UL 1682, CSA C22.2
• Overall Dimension: 7.76 inches in length
• Dielectric Voltage: 3000 Volt AC
• Operating Temperature: Minus forty to seventy-five degrees Celsius
