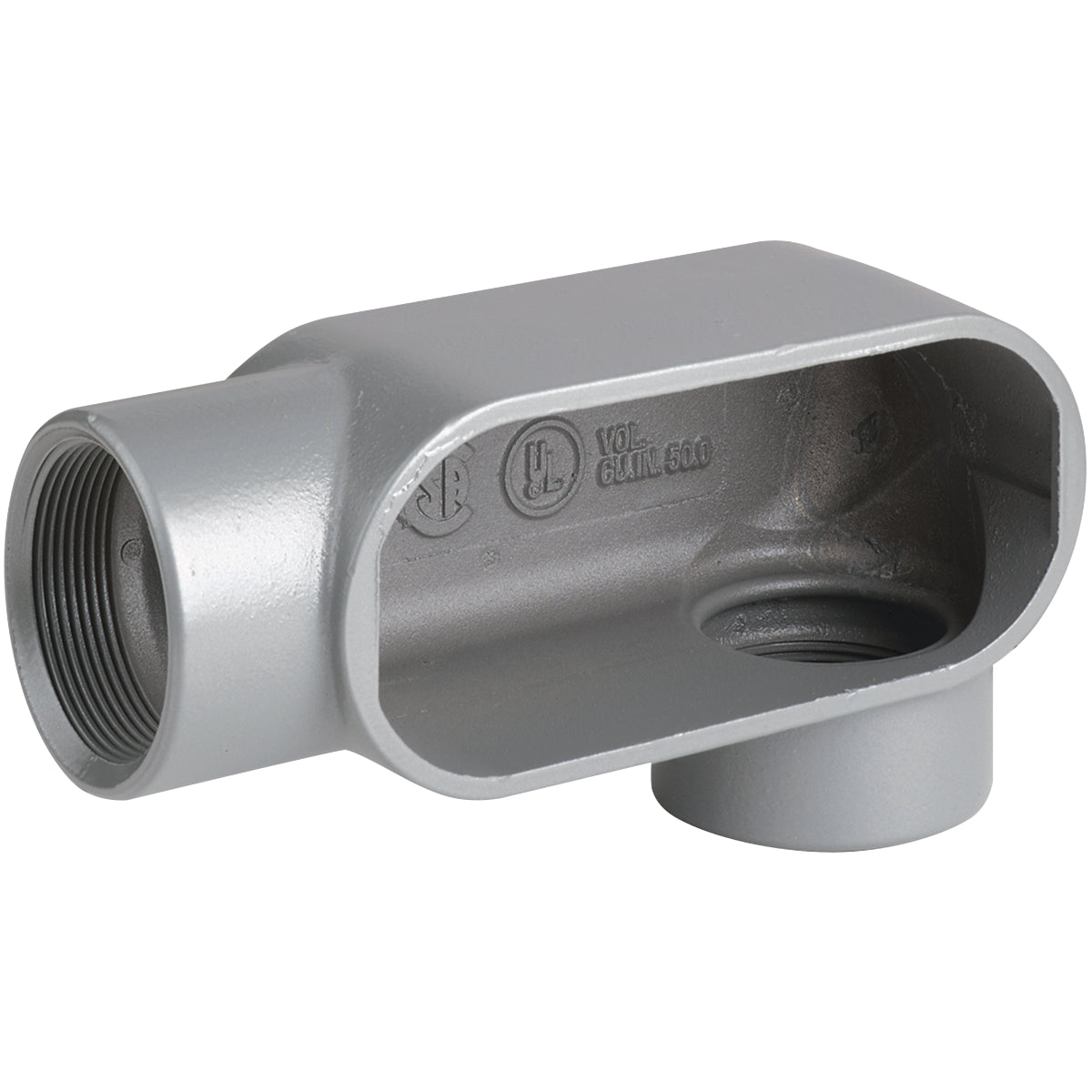

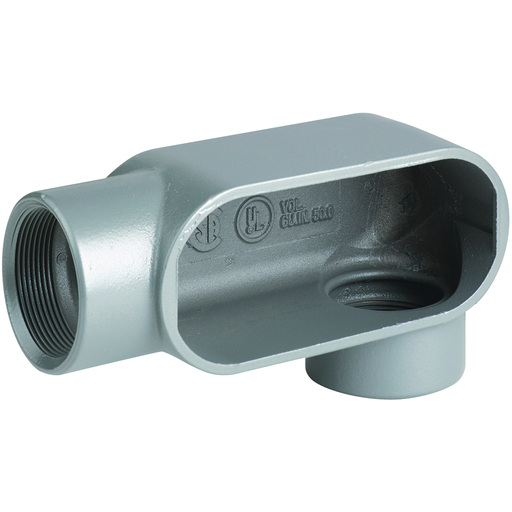

Hubbell LL47 1-1/4 Inch Gray Iron Type LL Conduit Body

Product Description

The Hubbell Electrical Systems LL47 is a 1-1/4 inch gray iron type LL conduit body, built to provide access to conductors for pulling, splicing, and maintenance. This conduit body is designed for use with threaded rigid conduit, accommodating both steel and aluminum materials.

• Constructed from durable gray iron material.
• Meets NEMA 3 seal requirements for enhanced sealing capabilities.
• UL Listed and CSA certified for intermateability with competitive products.

Product Highlights

This product features enhanced sealing capabilities with neoprene gaskets suitable for wet locations. The innovative spring clip design facilitates ease of installation and repeated usage, making it a reliable choice for various electrical applications.

Product Information

Standard Information

• Applications: Provides access to conductors for pulling, splicing, and maintenance.
• Hub Size: 1 1/4 inch.

Technical Specifications

• Material: Iron
• Type: Non-Reversing
• Height: 5-1/2 inches
• Length: 6.88 inches
• Width: 3.75 inches
• Country of Origin: Mexico
• 12-Digit UPC: 783936011134
