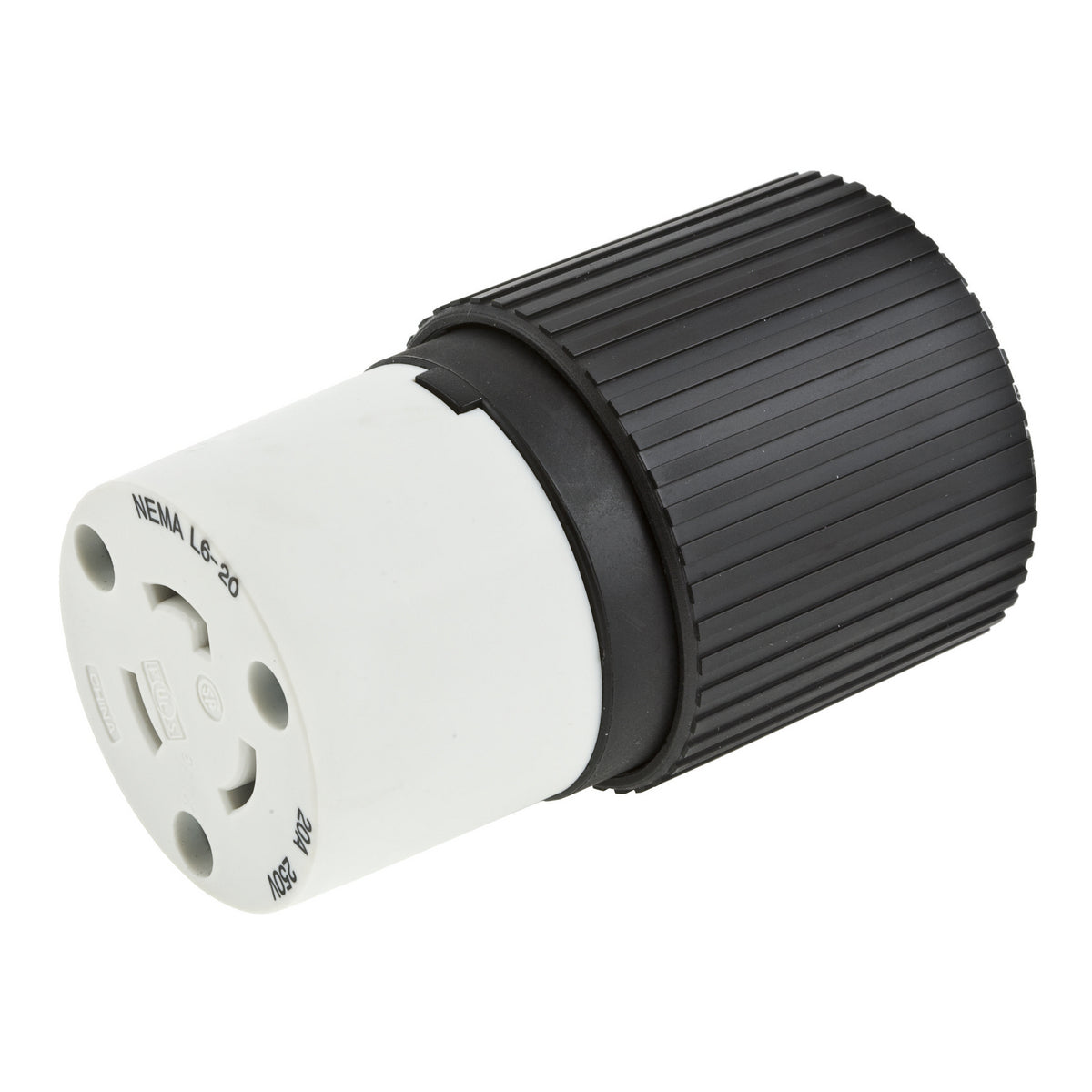

Hubbell L620C LKG CONN 20A 250V HUB PRO L6-20R

Product Description

The Hubbell L620C is a twist-lock locking connector designed for heavy-duty applications. It is rated for 20 amps and 250 volts. The connector features a female grounding standard cord mount configuration and has a NEMA L6-20R rating. This locking device ensures a secure connection between equipment loads and power sources.

• Rated for heavy-duty industrial applications.
• Temperature rating from negative forty to seventy-five degrees Celsius.
• Constructed with a durable composite body.

Product Highlights

This locking connector offers a reliable and safe disconnect feature and is suitable for various industrial environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: L620C

Technical Specifications

• Amperage Rating: 20 A
• Application: Heavy Duty Industrial Applications
• Color: Black/White
• Grade: Commercial/Industrial
• Material: Composite
• NEMA Rating: L6-20R
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: RoHS Compliant, CSA Certified, UL 498, NEMA WD1/WD5
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Type: Female Grounding Standard Cord Mount
• Voltage Rating: 250 VAC
