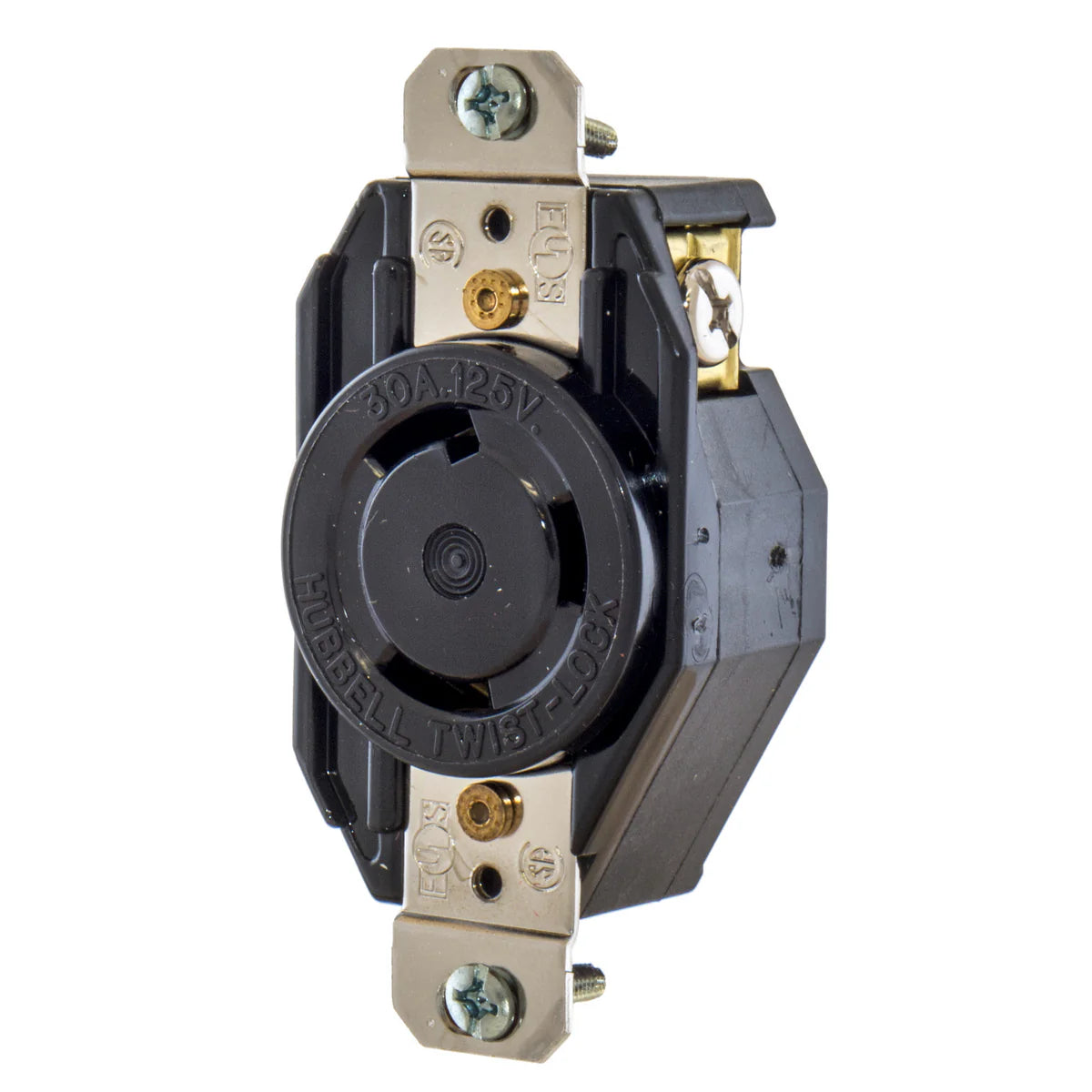

Hubbell L530R LKG RECP 30A 125V SELSPEC L5-30R

Product Description

The Hubbell L530R is a locking receptacle designed for 125 volts and 30 amperes. It features a one-phase grounding and is suitable for commercial and industrial applications. The screw mount design ensures secure installation, while thermoplastic material makes it durable.

• Meets NEMA L5-30R standards
• Operational temperature range of -40 to 85 degrees Celsius
• Compatible with 10 AWG wire

Product Highlights

This locking receptacle is ideal for various industrial and plant wiring applications, including equipment and cord extensions.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358583593

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 125 VAC
• Application: Industrial, MRO, OEM
• Material: Thermoplastic
• NEMA Rating: L5-30R/WD1/WD5
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 85 degrees Celsius
• Standards/Approvals: RoHS Compliant, UL 498, CSA Certified
• Dimensions: 1.703 in W x 1.312 in D
