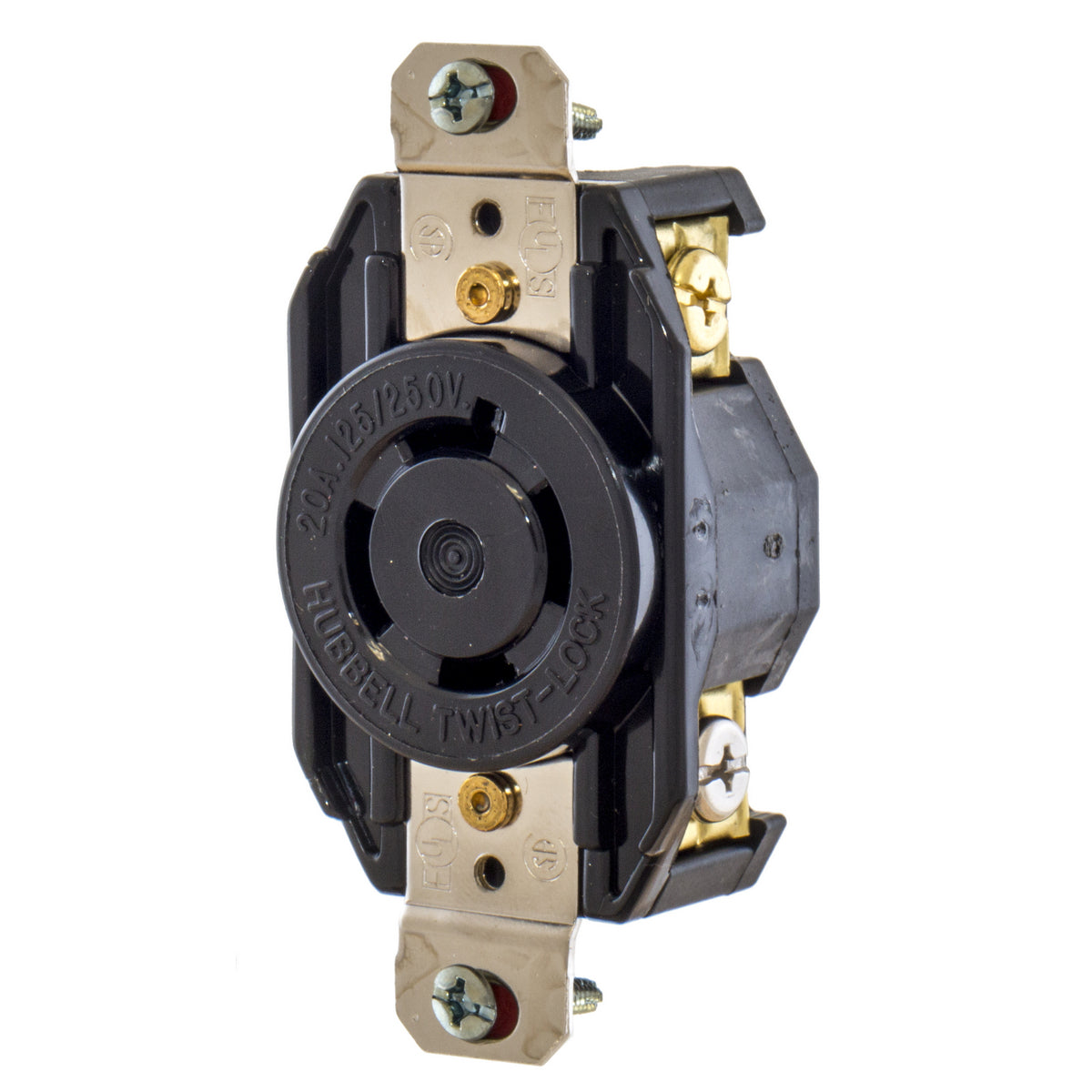

Hubbell L1520R LKG RECP 20A 3PH250V SELSPEC L15-20R

Product Description

The Hubbell L1520R is a locking receptacle designed for three-phase grounding applications. It operates at two hundred fifty volts and can handle twenty amps. This product is suitable for industrial and commercial installations requiring reliable and sturdy electrical connections.

• 20 Amp rating for high power needs.
• Three poles and four wires for versatile connectivity.
• Temperatures range from -40 to 85 degrees Celsius for various environments.

Product Highlights

This locking receptacle is ideal for use in industrial, MRO, OEM, and construction sites, ensuring safety and efficiency in power distribution.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: L1520R

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 250 VAC
• Terminal Type: Screw
• Number of Poles: 3
• Number of Wires: 4
• NEMA Rating: L15-20R/WD1/WD5
• Dimensions: 1.703 in W x 1.234 in D
• Material: Thermoplastic
• Temperature Rating: -40 to 85 degrees Celsius
• Grade: Commercial/Industrial
• Standards/Approvals: RoHS Compliant, UL 498, CSA Certified, UL94 V-2 Flammability Rating
