Product Description

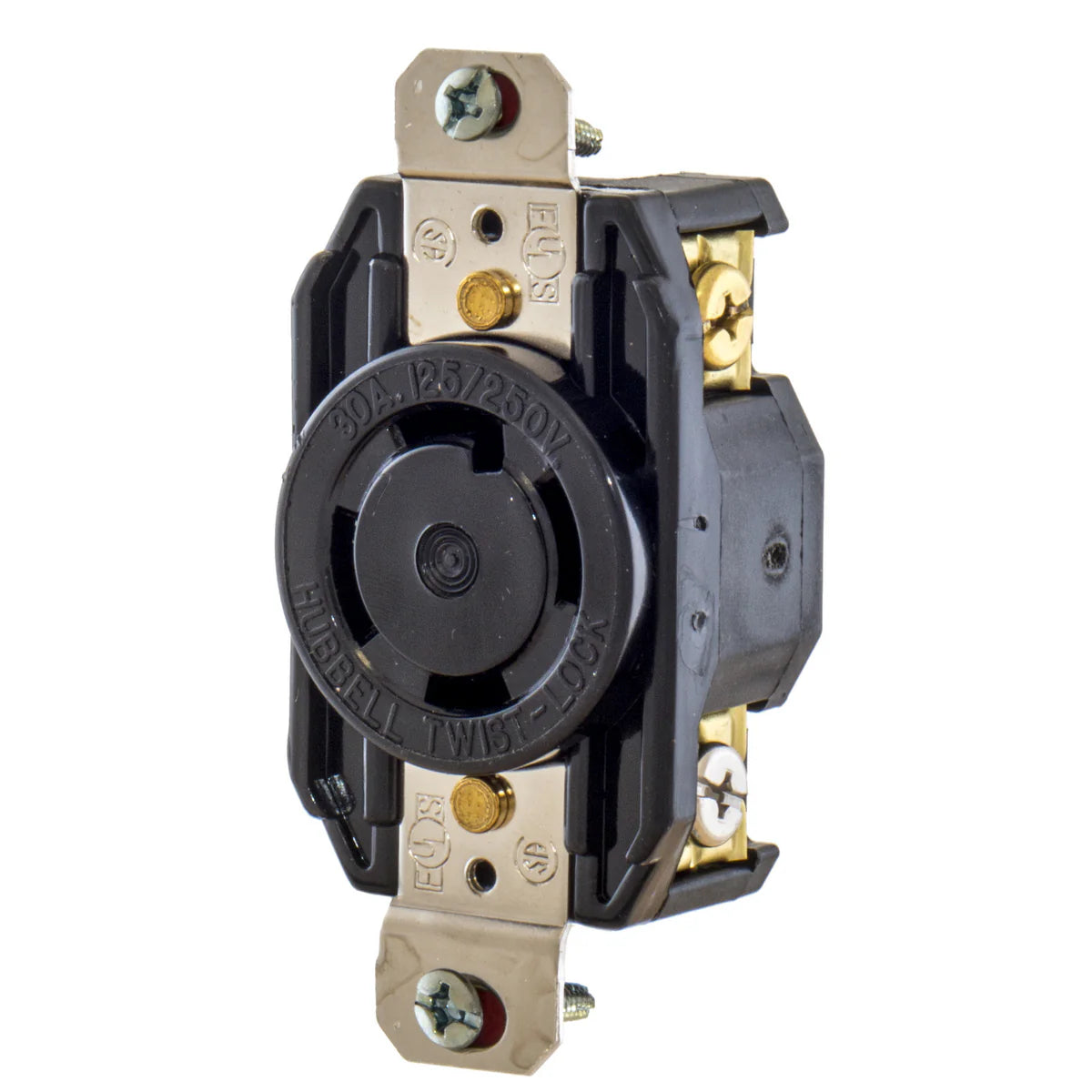

The Hubbell L1430R is a twist-lock locking receptacle designed for industrial and commercial applications. This receptacle operates at a voltage of one hundred twenty-five to two hundred fifty volts with a current rating of thirty amps. It features a standard single screw mount, ensuring secure installation.
- Water-resistant design for durable indoor and outdoor use
- Constructed with thermoplastic for enhanced durability
- Compatible with L14-30R NEMA configuration
Product Highlights
This receptacle is ideal for use in applications such as construction, floor equipment wiring, and portable equipment. It is RoHS compliant and meets UL and CSA standards.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: L1430R
Technical Specifications
-
Amperage Rating: 30 A
-
Voltage Rating: 125/250 VAC
-
Application: Industrial, MRO, OEM
-
NEMA Rating: L14-30R/WD1/WD5
-
Number of Poles: 3
-
Number of Wires: 4
-
Material: Thermoplastic
-
Temperature Rating: -40 to 85 degrees Celsius
