Hubbell KVS31 BURNDY BOLT ON CONN 350

Product Description

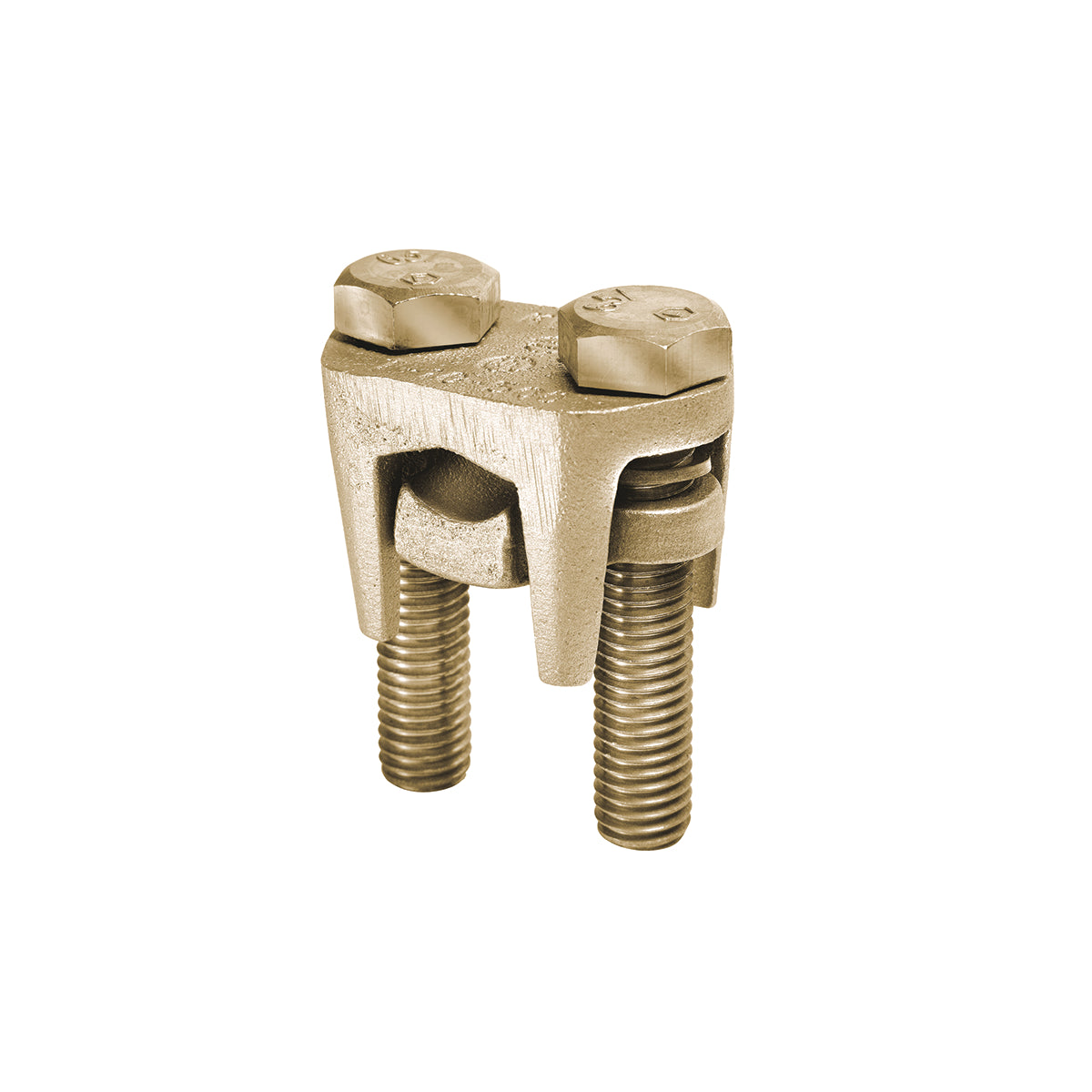

The Hubbell KVS31 is a BURNDY OKLIP Mechanical Grounding Connector designed for heavy duty electrical connections. This two-piece, compact connector is made from high-strength copper alloy, ensuring reliability and durability. It accommodates a range of wire sizes and types, making it suitable for various applications.

• High strength copper alloy for durability
• Suitable for 8/19 AWG to 350 kcmil conductors
• Installed with a standard wrench for convenience

Product Highlights

The KVS31 connector is UL 467 listed and effective for direct burial applications in earth or concrete. Its neoprene rings keep the bolts secure during installation, facilitating a smooth setup process.

Product Information

Standard Information

• Brand: Hubbell
• Manufacturer Part Number: KVS31

Technical Specifications

• Application: For copper, copperweld, heavy duty connections
• Conductor Size: 8/19 AWG to 500 kcmil, 8/7 AWG to 500 kcmil
• Conductor Type: Copper/Stranded
• Dimensions: 6.13 in L x 4.56 in W x 4.5 in H
• Finish: Plain Copper Plated
• Material: Copper Alloy
• Series: KVS
• Standards/Approvals: RoHS Compliant, UL Listed, CSA Certified, PROP65 Warning
• Type: 2-Piece Compact High Strength
