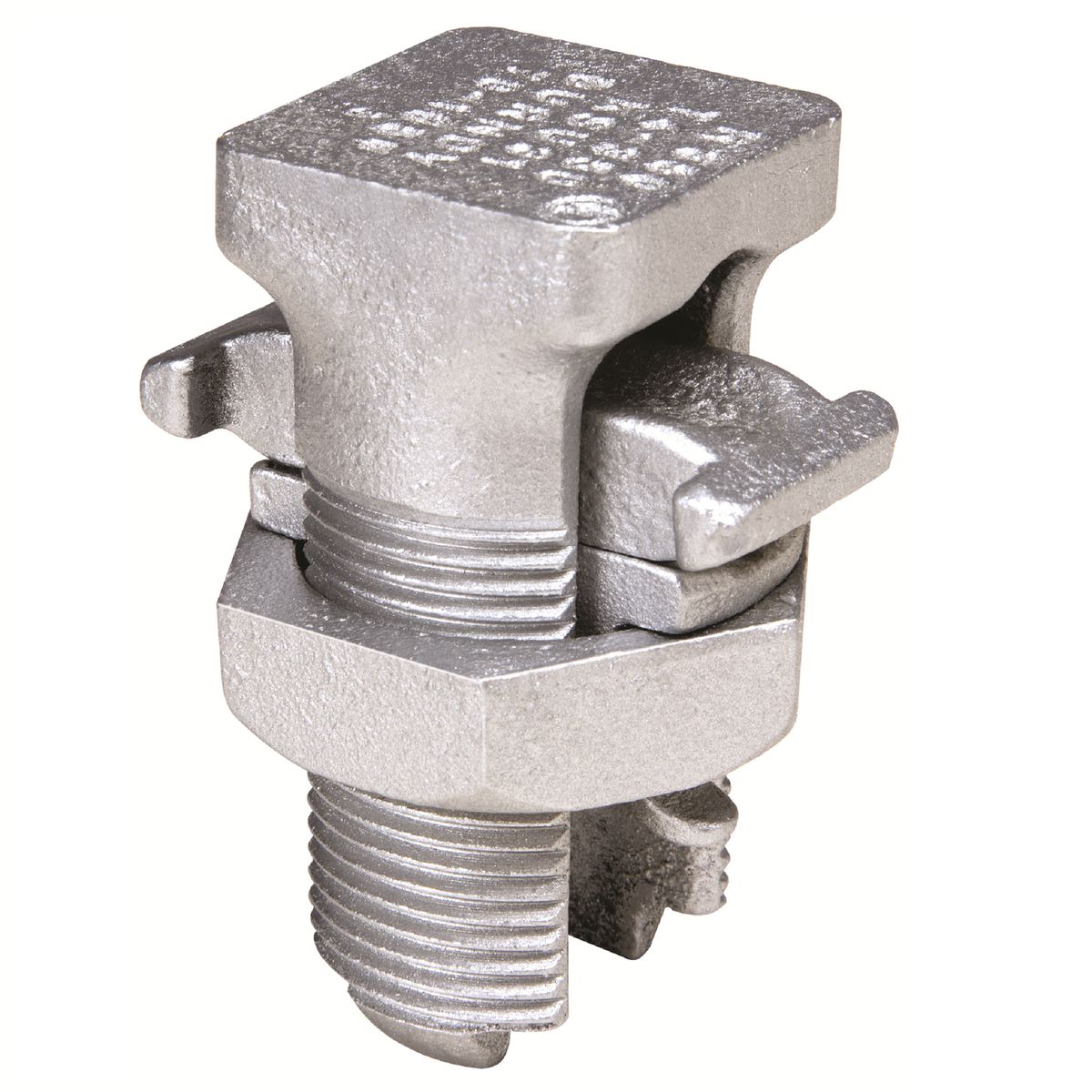

Hubbell KSU27 KSU Universal Split Bolt Connector 3/0AWG to 1 AWG

Product Description

Hubbell KSU27 is a universal split bolt connector designed for electrical connections. It allows for multiple combinations of copper, aluminum, ACSR, AAAC, and steel conductors. The connector supports conductor sizes from three aught to one AWG, and eight AWG to half-inch. The durable copper alloy is tin plated, ensuring long-lasting performance.

• Suitable application for all combinations of copper and aluminum
• Torque rating of five hundred inch-pounds
• Includes a spacer to separate dissimilar conductors

Product Highlights

This split bolt connector is ideal for grounding and bonding applications, ensuring reliable electrical connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181003670

Technical Specifications

• Application: All combinations of copper, aluminum, ACSR, AAAC, 5005 and steel
• Conductor Size: 3/0 to 1 AWG, 8 AWG to 1/2 inch
• Finish: Tin Plated
• Length: 2.34 inches
• Width: 1.12 inches
• Material: Copper Alloy
• Number of Conductors: 1
• Series: KSU
• Torque Rating: 500 inch-pounds
• Standards/Approvals: ARRA Compliant, CSA Certified, RoHS Compliant, UL 486A
