Product Description

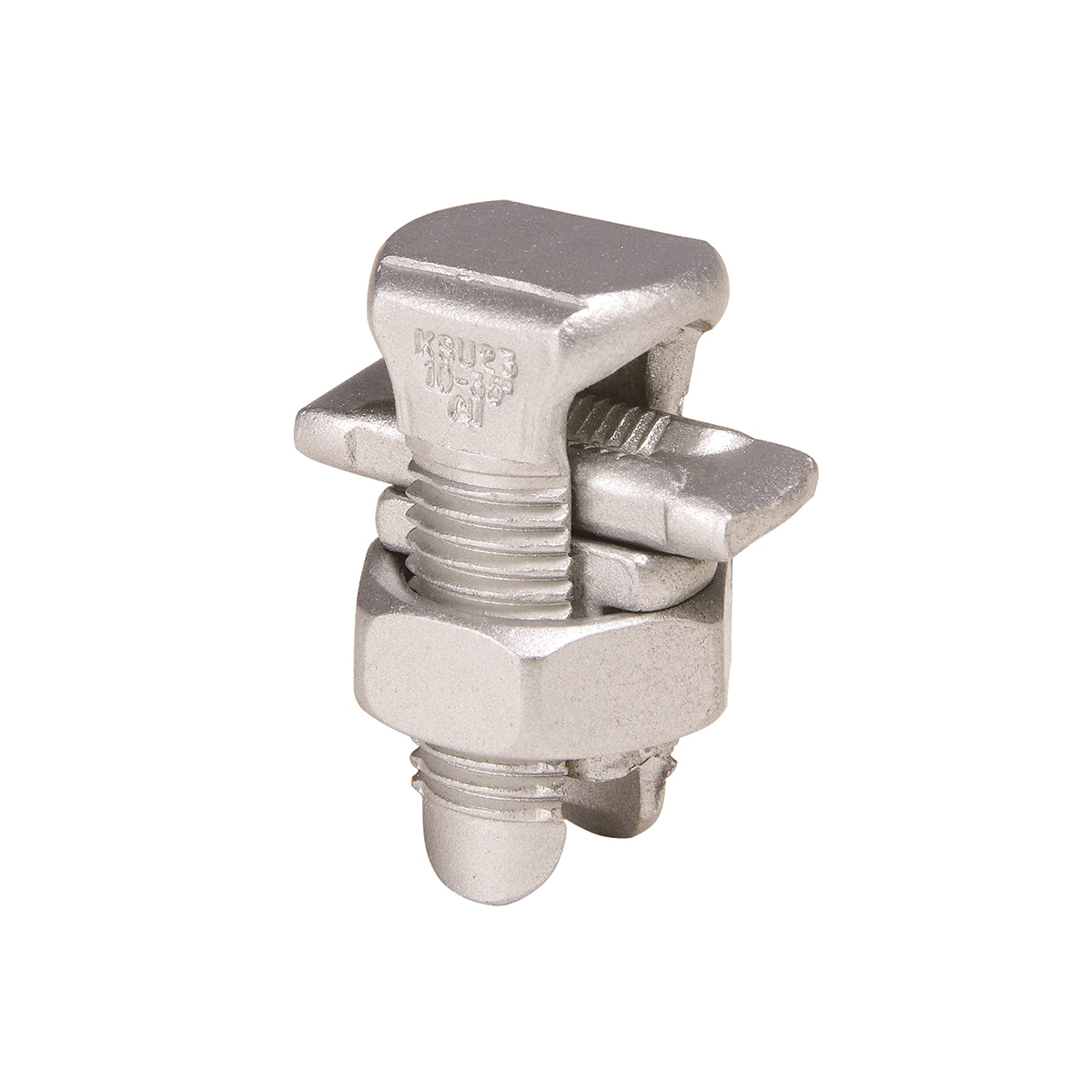

The Hubbell KSU17 is a universal split bolt connector designed for use with various conductor types. This connector can accommodate multiple conductor sizes, including twelve to six AWG and six to twelve AWG. Made from a high-strength copper alloy, it provides durability and conductivity. The connector features a length of zero point ninety-two inches and a width of zero point forty-two inches, with a torque rating of one hundred sixty-five inch-pounds.
- Compatible with copper, aluminum, and ACSR conductors
- Recommended use of PENETROX joint compound for aluminum and ACSR
- High conductivity due to tin-coated copper alloy
Product Highlights
This product is suitable for electrical applications requiring a reliable connection between different conductor types.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPCs: 78181003500
Technical Specifications
-
Application: All combinations of copper, aluminum, ACSR, AAAC, 5005, and steel
-
Conductor Size: 12 to 6 AWG, 6 to 12 AWG
-
Finish: Tin Coated
-
Length: 0.92 inches
-
Manufacturer Part Number: KSU17
-
Material: Copper Alloy
-
Number of Conductors: 1
-
Series: KSU
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65 Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
-
Torque Rating: 165 in-lb
-
Type: Universal
-
Width: 0.42 inches
