Product Description

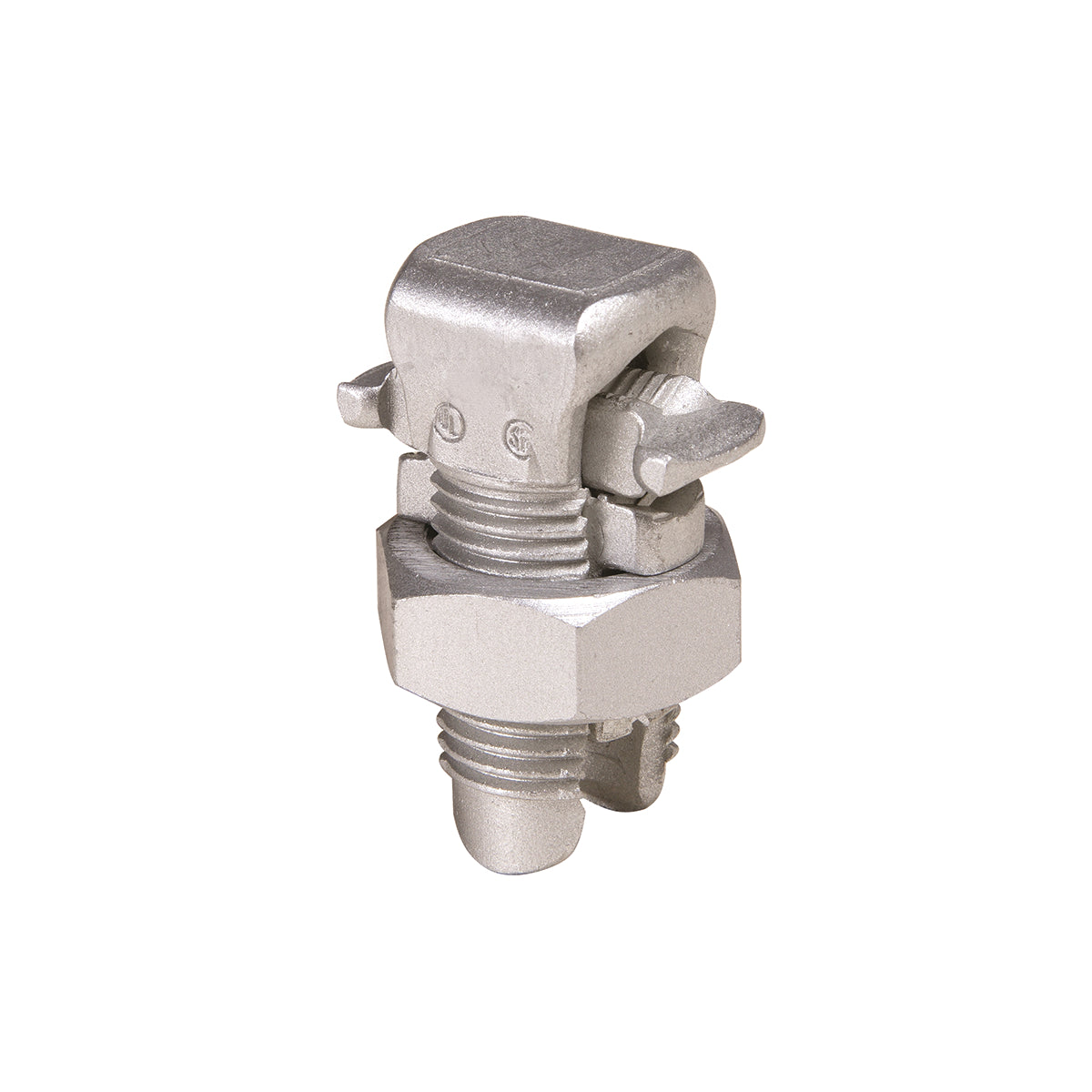

The Hubbell KSA350 is a split bolt connector designed for various conductor types. This model facilitates connections between aluminum and copper conductors, accommodating sizes from four AWG to three hundred fifty kcmil. The length of the connector is three point sixty-two inches, with a width of one point seventy-three inches. It is made from durable aluminum and features a TiN coating.
- Compatible with aluminum to aluminum, copper to copper, and aluminum to copper connections.
- Torque rating at six hundred fifty in-lb for secure connections.
- ARRA compliant with low contact resistance for improved performance.
Product Highlights
This split bolt connector provides maximum pressure for secure connections and features a design that facilitates piercing aluminum surface oxides.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: KSA350
Technical Specifications
-
Application: For all combinations of aluminum to aluminum, aluminum to copper and copper to copper, tin plated aluminum alloy
-
Conductor Size: 4 AWG to 350 kcmil, 1/0 AWG to 350 kcmil
-
Finish: TiN Coated
-
Length: 3.62 in
-
Material: Aluminum
-
Number of Conductors: 1
-
Series: KSA
-
Standards/Approvals: ARRA Compliant | Buy American Act Compliant | UL 486A-486B | RoHS Compliant | PROP65 Warning: This product can expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects.
-
Torque Rating: 650 in-lb
-
Width: 1.73 in
