Product Description

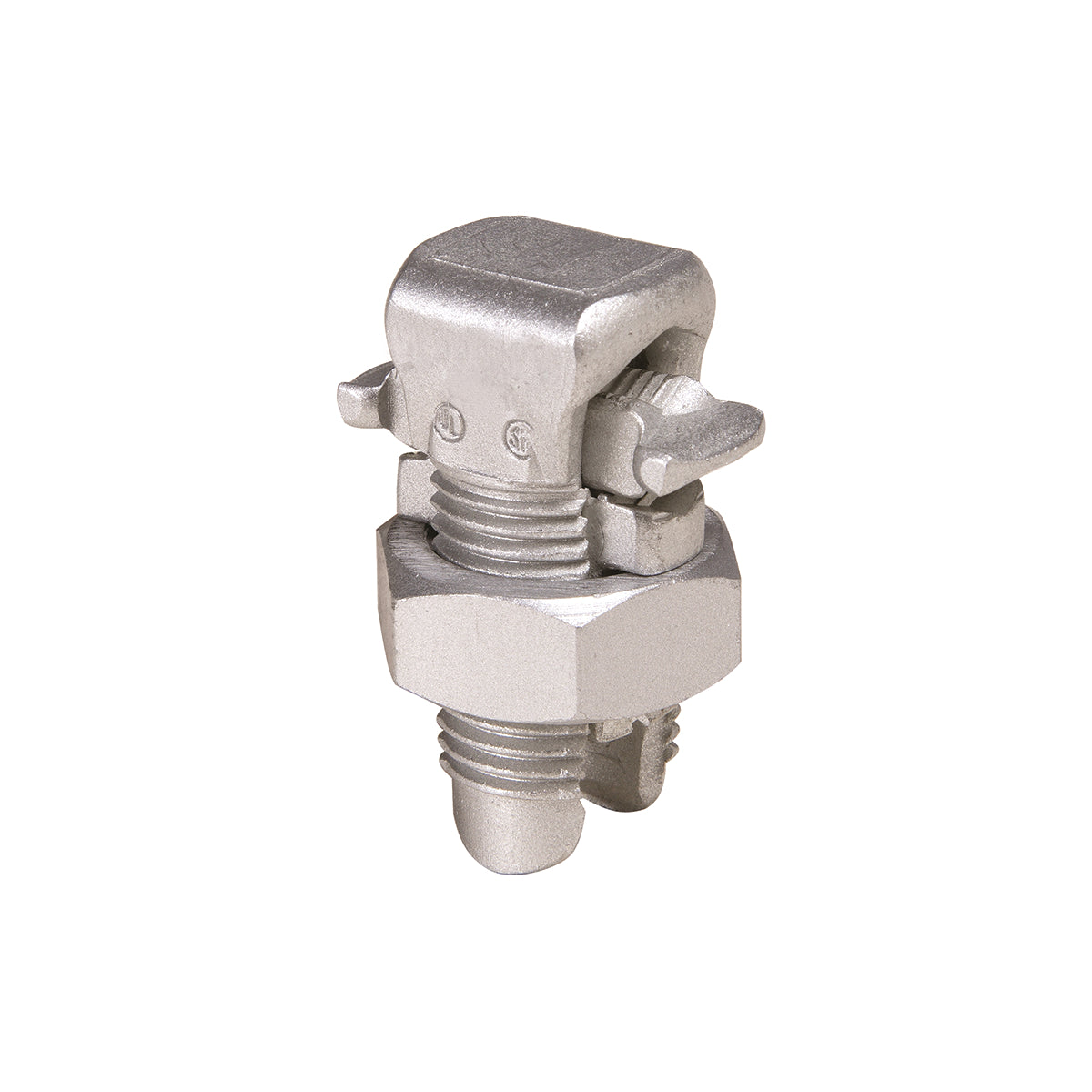

The Hubbell KSA2/0 is a split bolt connector designed for joining conductors. It works with aluminum and copper wires, accommodating sizes from eight to two-ought AWG. The product measures one point ninety-two inches in length and zero point eighty-eight inches in width.
- Torque rating: three hundred eighty-five inch-pounds
- Material: aluminum with TiN coating
- Standards compliant: UL 486A-486B and RoHS
Product Highlights
This connector ensures a secure and reliable connection for electrical applications.
Product Information
Standard Information
-
Application: For all combinations of aluminum to aluminum, aluminum to copper and copper to copper.
-
Conductor Size: 8 to 2/0 AWG, 2 to 2/0 AWG.
Technical Specifications
-
Finish: TiN Coated
-
Length: 1.92 in
-
Manufacturer Part Number: KSA2/0
-
Material: Aluminum
-
Number of Conductors: 1
-
Series: KSA
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, UL 486A-486B, RoHS Compliant, PROP65 compliant.
-
Torque Rating: 385 in-lb
-
Width: 0.88 in
