Product Description

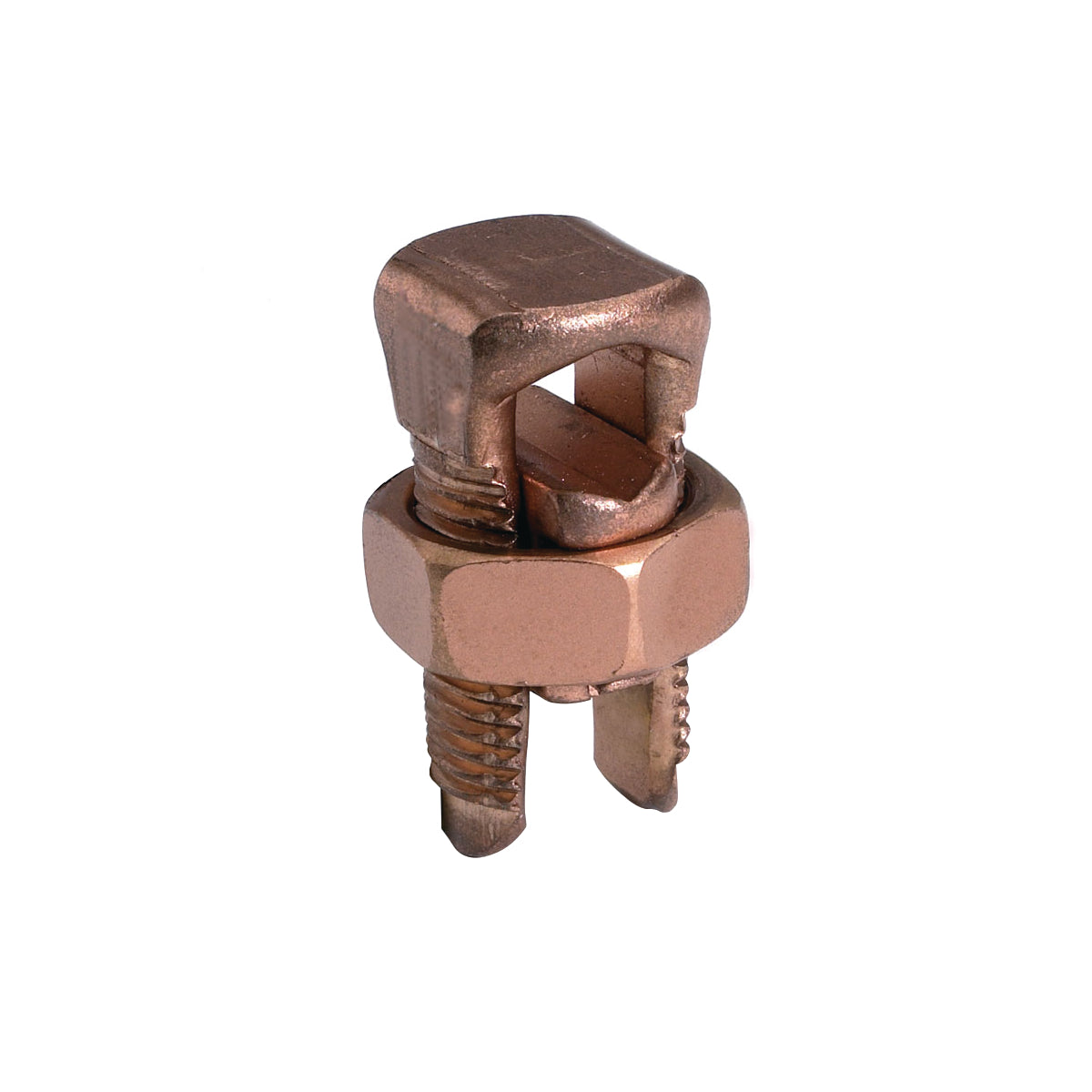

The Hubbell KS39 is a BURNDY SERVIT Split Bolt Connector. It allows direct burial connections with a design that accommodates conductors from five AWG to seven hundred fifty kcmil. The connector is made of copper alloy and features a length of three and twenty-nine hundredths inches and a width of one and ninety-four hundredths inches.
- Suitable for direct burial applications
- High strength construction for reliable connections
- Compatible with multiple conductor sizes
Product Highlights
This connector provides strong and secure connections in grounding and bonding applications.
Product Information
Standard Information
-
Model: KS39
-
Manufacturer: Hubbell
Technical Specifications
-
Application: Direct Burial Cable
-
Conductor Size: 5 AWG to 750 kcmil, 12 AWG to 750 kcmil
-
Finish: Plain Copper Plated
-
Length: 3.29 inches
-
Manufacturer Part Number: KS39
-
Material: Copper Alloy
-
Number of Conductors: 1
-
Series: KS Series
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant
-
Torque Rating: 1000 in-lb
-
Type: Compact
-
Width: 1.94 inches
