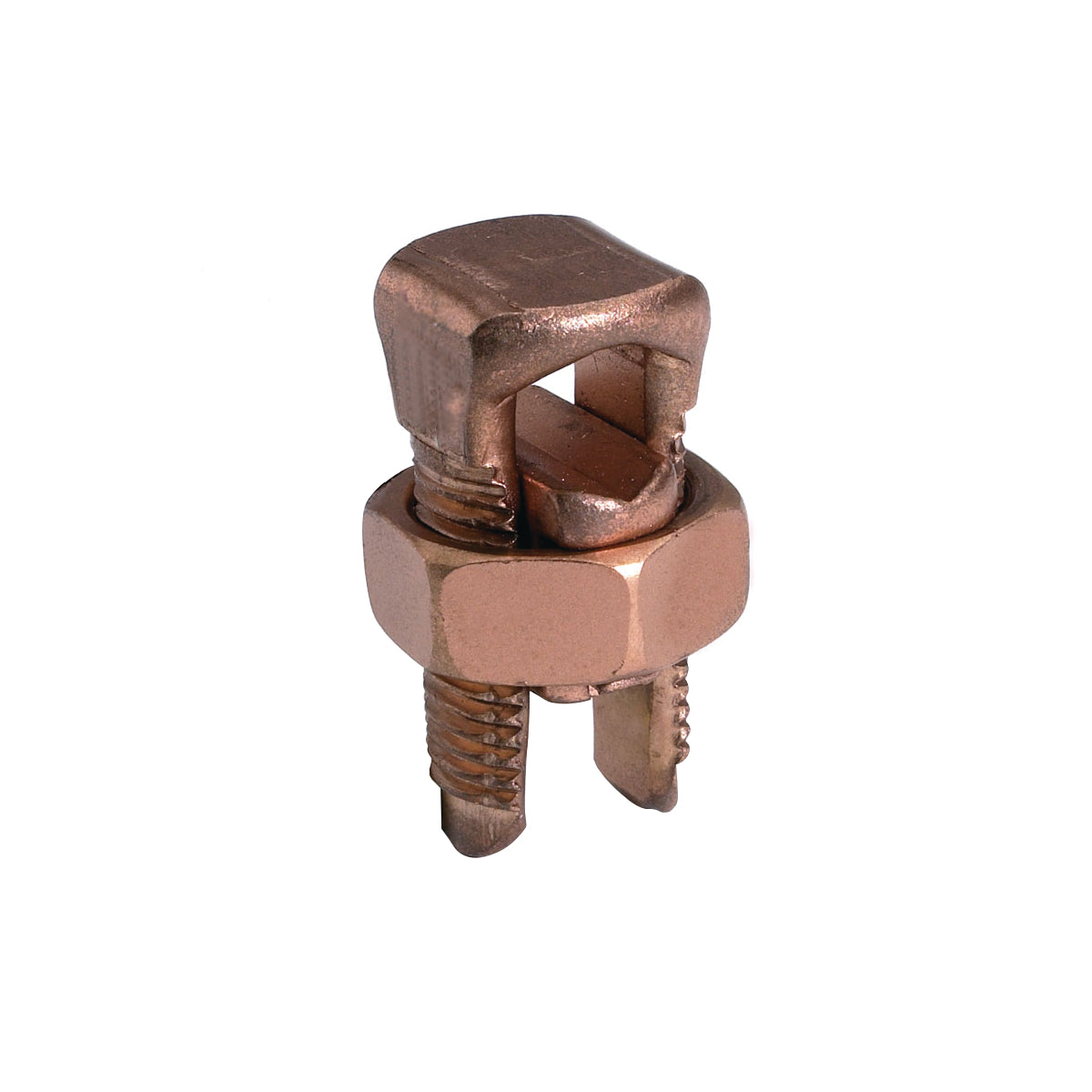

Hubbell KS29 BUR CU SPLIT BOLT 1STR-250MCM CU (KS29DB)

Product Description

The Hubbell KS29 is a BURNDY SERVIT Split Bolt Connector designed for effective electrical connections in various applications. This connector is compact and supports a wide range of conductor sizes from five AWG to two hundred fifty kcmil. It is suitable for use with copper conductors in direct burial installations.

• Capacity for conductors from 5 AWG to 250 kcmil
• High conductivity copper alloy construction
• Torque rating of six hundred fifty inch-pounds

Product Highlights

The KS29 connector provides a secure electrical connection while maintaining high resistance to corrosion and cracking.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: KS29

Technical Specifications

• Application: Direct Burial Cable
• Conductor Size: 5 AWG to 250 kcmil, 12 AWG to 250 kcmil
• Finish: Plain Copper Plated
• Length: 27 inches
• Material: Copper Alloy
• Number of Conductors: 1
• Series: KS Series
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65 Warning for lead exposure
• Torque Rating: 650 inch-pounds
• Width: 1.17 inches
