Product Description

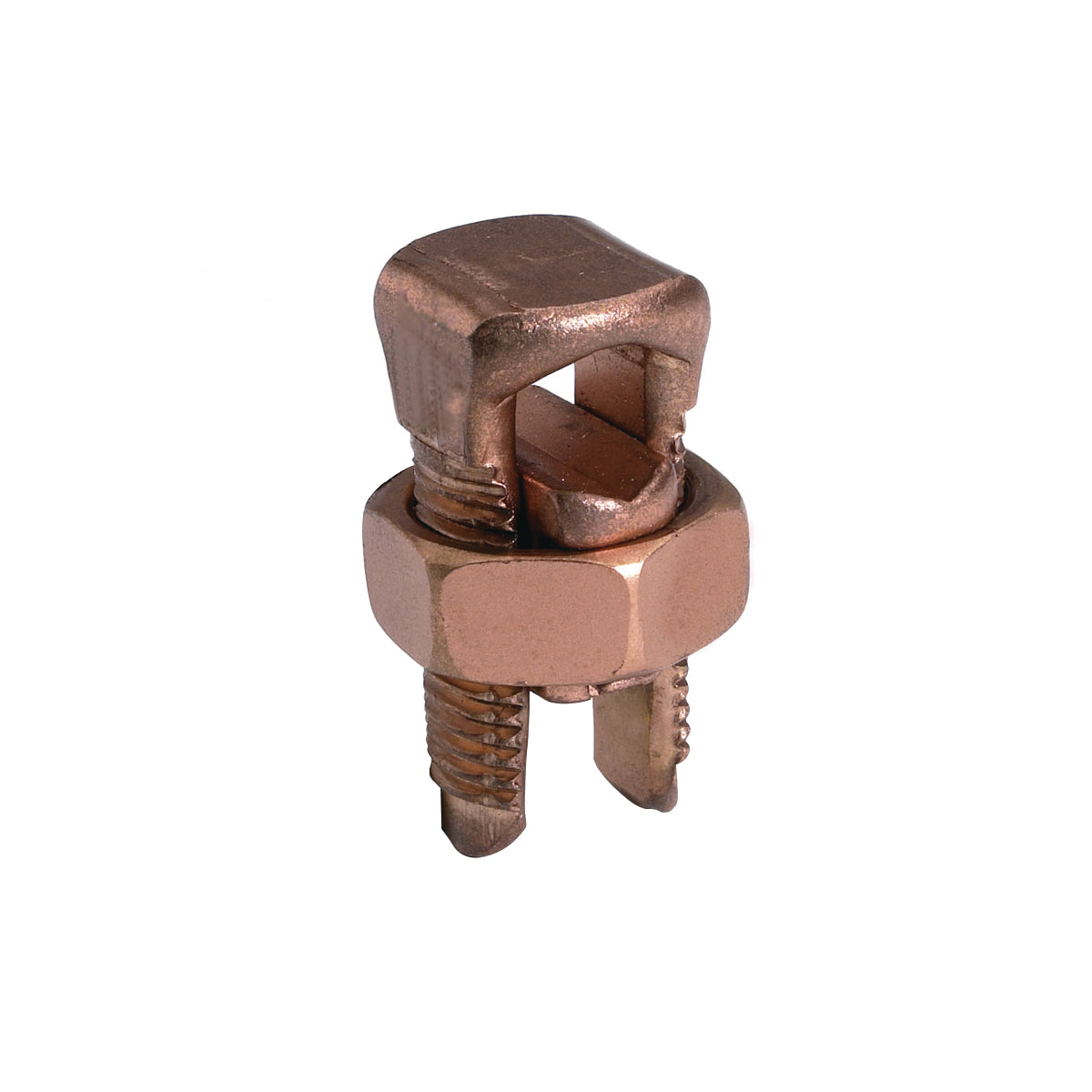

The Hubbell KS27 is a BURNDY SERVIT Split Bolt Connector. It is designed for connectively joining copper conductors in direct burial applications. This connector supports conductor sizes ranging from one to three AWG stranded and solid copper. It features a compact design that makes installation straightforward.
- Compact and high strength copper alloy design
- Supports copper conductors from one to three AWG
- Rated for direct burial applications
Product Highlights
The KS27 provides high conductivity and secure connections for various commercial applications.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: KS27
Technical Specifications
-
Application: Direct Burial Cable
-
Conductor Size: 1 to 3/0 AWG, 8 to 3/0 AWG
-
Finish: Plain Copper Plated
-
Length: 1.86 inches
-
Material: Copper Alloy
-
Number of Conductors: 1
-
Series: KS Series
-
Torque Rating: 500 in-lb
-
Width: 1.17 inches
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65 Warning
