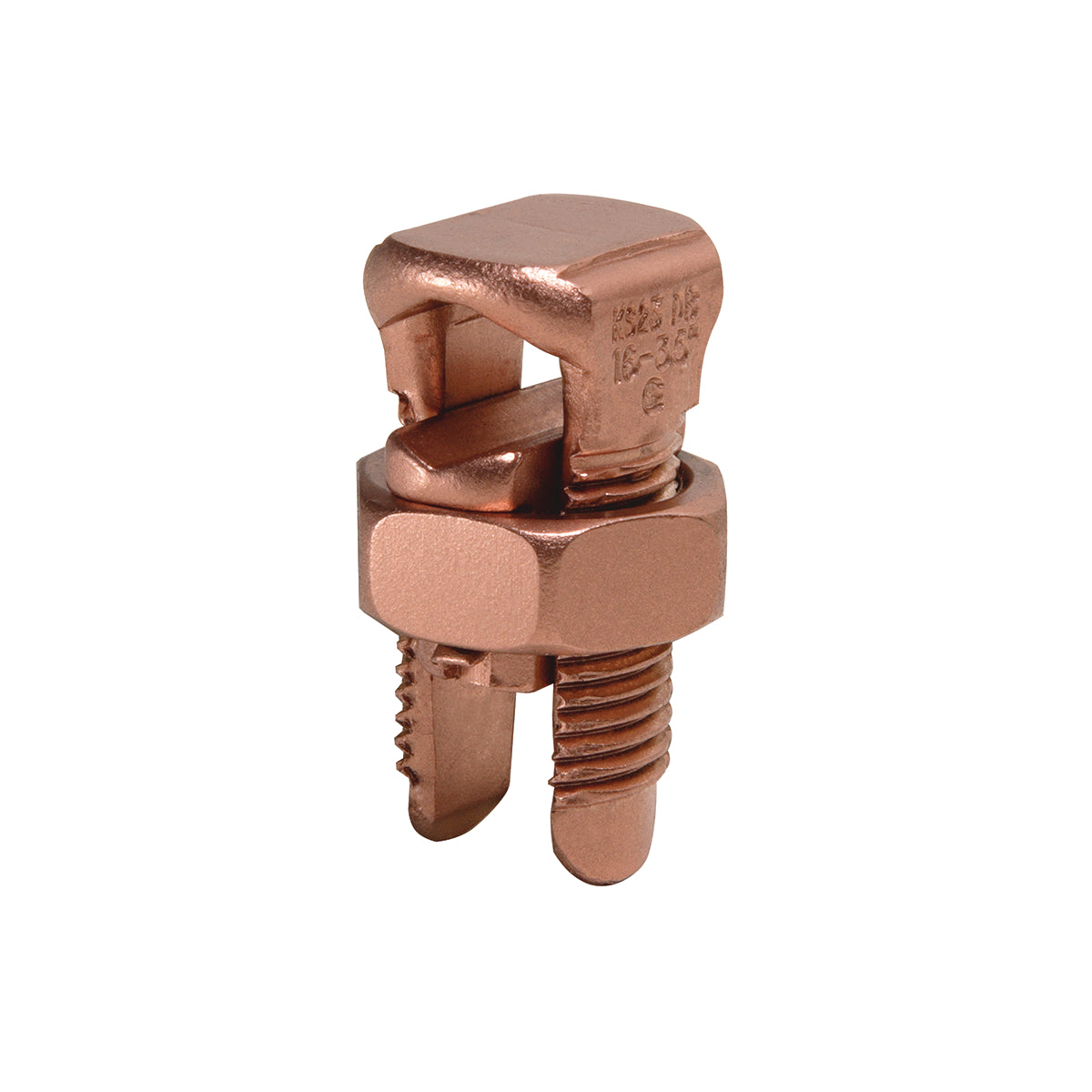

Hubbell KS23 BUR CU SPLIT BOLT 6STR-2STR CU

Product Description

The Hubbell KS23 is a BUR CU split bolt connector designed for efficient and reliable electrical connections. This product accommodates stranded copper conductors ranging from six to two AWG. It is constructed from copper alloy and measures one point fifty-four inches in length and zero point sixty-two inches in width.

• Compatible with 6 to 2 AWG stranded copper conductors
• Meets standards for various applications including direct burial
• Offers a torque rating of 275 inch-pounds

Product Highlights

This split bolt connector provides secure connections for electrical wiring and is resistant to corrosion.

Product Information

Standard Information

• Manufacturer: Hubbell
• Application: Direct burial in earth or concrete, copper conductors

Technical Specifications

• Conductor Size: 6 to 2 AWG stranded copper
• Dimensions: 1.54 inches length, 0.62 inches width
• Finish: Plain copper plated
• Material: Copper alloy
• Number of Conductors: 1
• Series: KS Series
• Torque Rating: 275 inch-pounds
• Standards/Approvals: ARRA compliant, Buy American Act compliant, RoHS compliant, PROP65 warning applicable
