Product Description

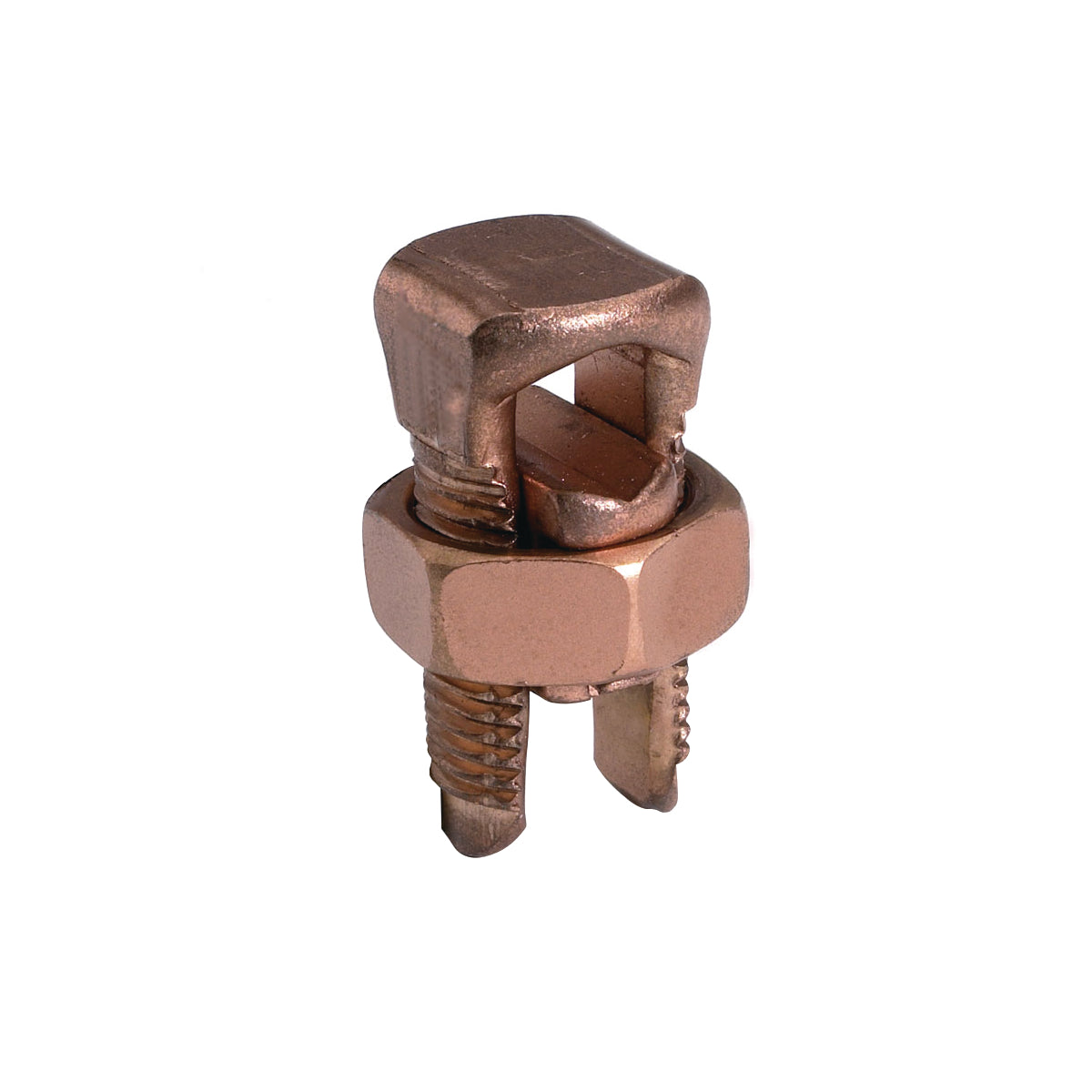

The Hubbell KS17 is a split bolt connector designed for grounding applications. It accommodates conductors ranging from twelve to six AWG and fourteen to six AWG. This model is a compact piece with a length of 1.14 inches and a width of 0.45 inches.
- UL 467 listed for direct burial applications
- Constructed from high-strength copper alloy
- High conductivity for reliable connections
Product Highlights
This split bolt connector is suitable for use in both earth and concrete. It features free-running threads for easy installation and is resistant to corrosion.
Product Information
Standard Information
Technical Specifications
-
Application: Direct Burial in Earth or Concrete
-
Conductor Size: 12 to 6 AWG, 14 to 6 AWG
-
Finish: Plain Copper Plated
-
Length: 1.14 inches
-
Manufacturer Part Number: KS17
-
Material: Copper Alloy
-
Number of Conductors: 1
-
Series: KS Series
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65: This product can expose you to chemicals including lead and lead compounds.
-
Torque Rating: 165 in-lb
-
Type: Compact
-
Width: 0.45 inches
