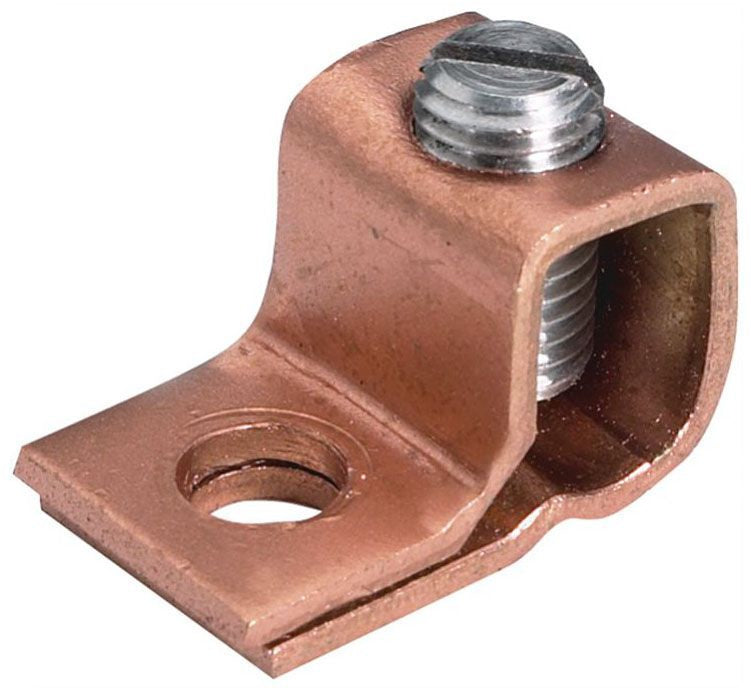

Hubbell KPB4CG1 BUR LAY IN DIRECT BURIAL MECH. GRDG LUG FOR 10-4AWG COPPER

Product Description

The Hubbell KPB4CG1 is designed for use as a direct burial mechanical grounding lug for copper conductors sized ten to four AWG. Its clip-on and lay-in design allows for easy assembly with stainless steel hardware. The connector is suitable for applications where continuous runs of conductors are used, providing reliable electrical connections in outdoor and underground settings.

• Suitable for ten to four AWG copper conductors
• Clip-On/Lay-In design for easy use
• Meets various safety standards and approvals

Product Highlights

This model is ideal for direct burial applications in earth or concrete, ensuring stable connections in challenging environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• Material: Copper Alloy

Technical Specifications

• Application: For direct burial applications in earth or concrete
• Conductor Size: 10 to 4 AWG
• Conductor Type: Copper
• Dimensions: 0.95 inches L x 0.95 inches H
• Finish: Unplated
• Manufacturer Part Number: KPB4CG1
• Number of Bolt Holes: 1
• Series: KPB
• Specifications: 5/16 inches Slotted Screw
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, UL 467/468A/468B, PROP65 Compliance
• Stud Size: #10
• Tongue Size: 0.61 inches W x 0.13 inches THK
• Tongue Type: Straight
• Type: Clip-On/Lay-In
