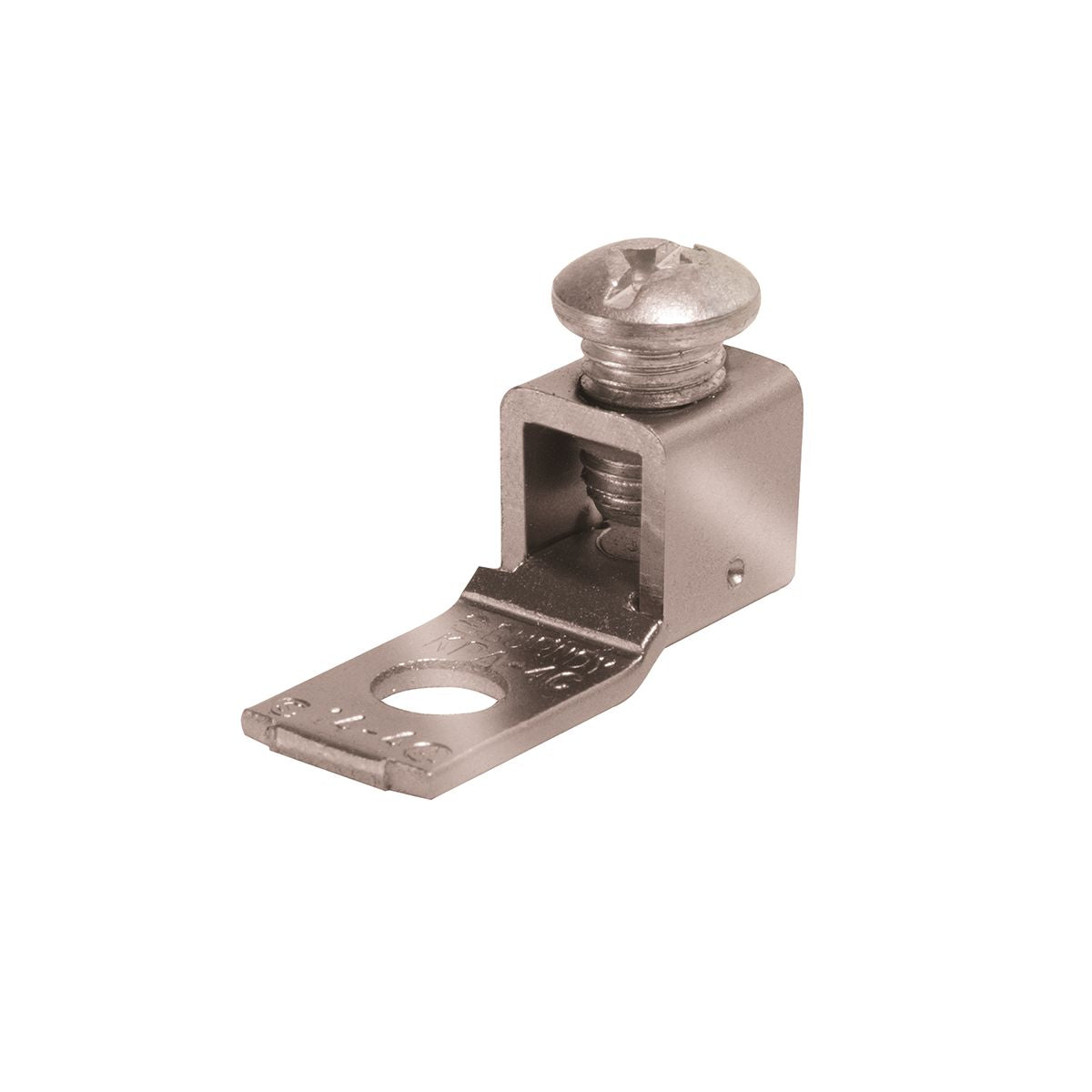

Hubbell KPA4CTP Copper Terminal, 1 Hole, 14 AWG (Sol)-4 AWG (Str), 1/4 Stud

Product Description

The Hubbell KPA4CTP is a copper terminal designed for effective wire connection. It accommodates wire sizes from fourteen AWG solid to four AWG stranded and features a one-quarter inch stud. This terminal is ideal for various applications, including joining copper cables to equipment pads or terminal blocks.

• One-piece design helps reduce installation time.
• Features a tin-plated finish for improved conductivity.
• Offers a reliable connection with a single screw installation.

Product Highlights

This copper terminal is suitable for a range of wire sizes and is designed to ensure a secure and efficient electrical connection.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Sub Brand: Burndy

Technical Specifications

• Material: Copper
• Connection Type: Terminal
• Conductor Size: 10 AWG
• Number of Holes: 1 Hole
• Number of Screws: 1
• Plated: Yes
• Plating Type: Tin

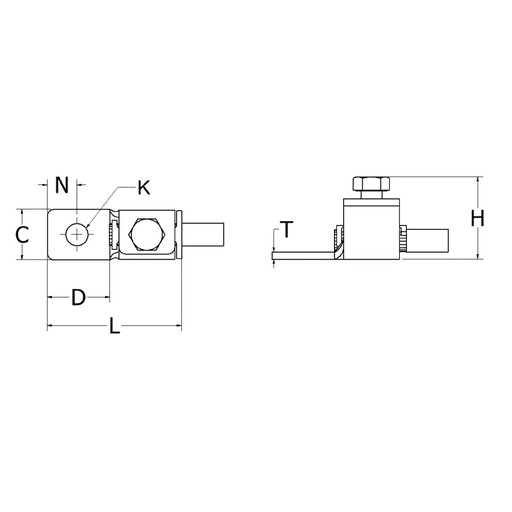

• Stud Size: 1/4 in
• Height: 1 Inch
• Width: 0.5 in
• Length: 1.28 Inch
