Hubbell KPA4C BURNDY SCRULUG 78181035135

Product Description

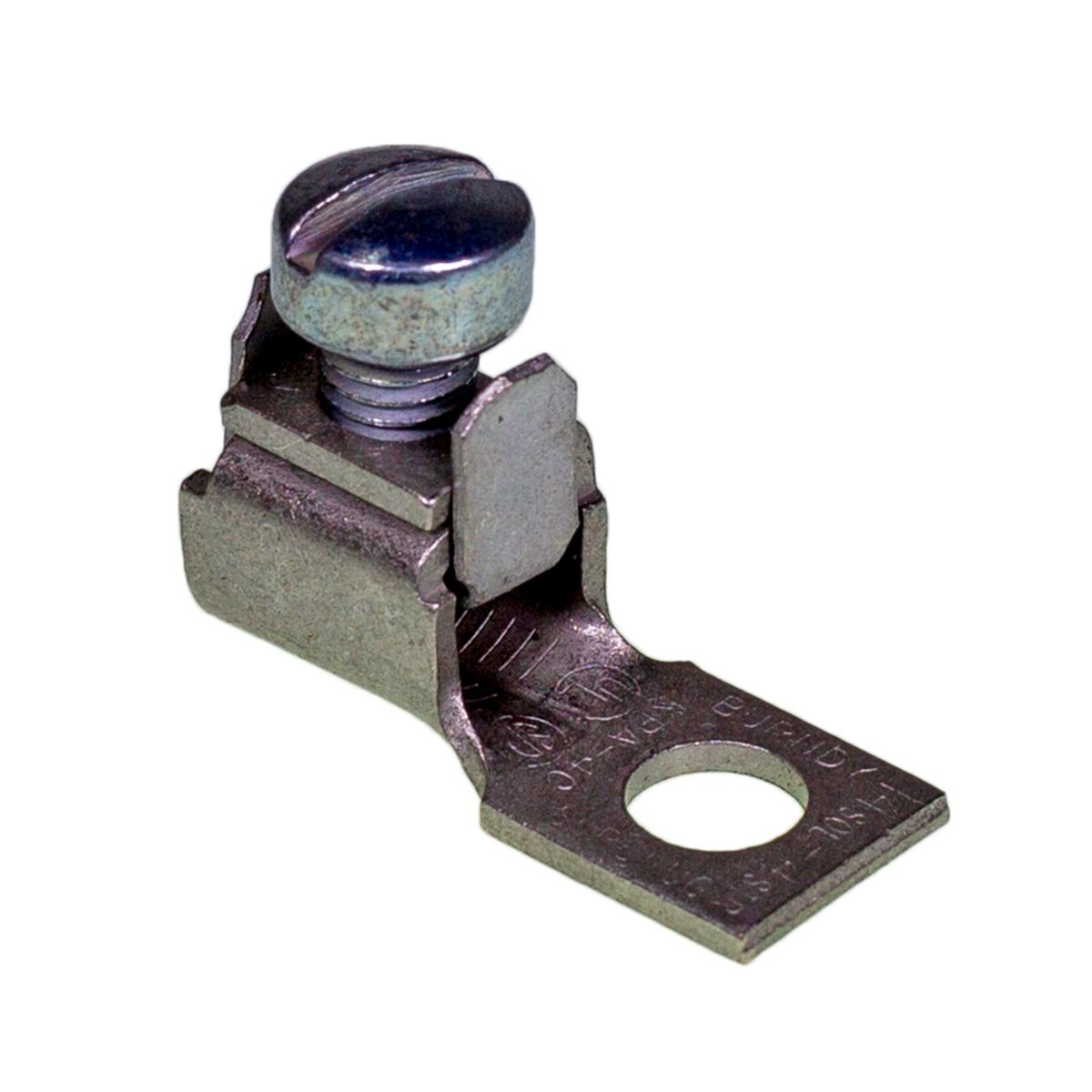

The Hubbell KPA4C BURNDY SCRULUG is a mechanical bolted lug and terminal designed for use with stranded solid copper conductors ranging from fourteen to four AWG. This lug accommodates a quarter-inch stud and includes one bolt hole, making it suitable for various electrical applications.

• Wiring connector designed for stranded solid copper conductors
• Features a straight tongue configuration
• Electro-zinc plated for corrosion resistance

Product Highlights

This product is ideal for light industrial applications where reliable connectivity is essential.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181035135

Technical Specifications

• Application: For joining a wide range of cable to equipment pads or terminal blocks
• Conductor Size: 14 to 4 AWG
• Conductor Type: Stranded Solid Copper
• Dimensions: 1.22 inches L x 0.94 inches H
• Finish: Electro-Zinc Plated
• Number of Bolt Holes: 1
• Stud Size: 1/4 inches
• Tongue Size: 0.5 inches W x 0.06 inches THK
• Tongue Type: Straight
• Series: KPA
