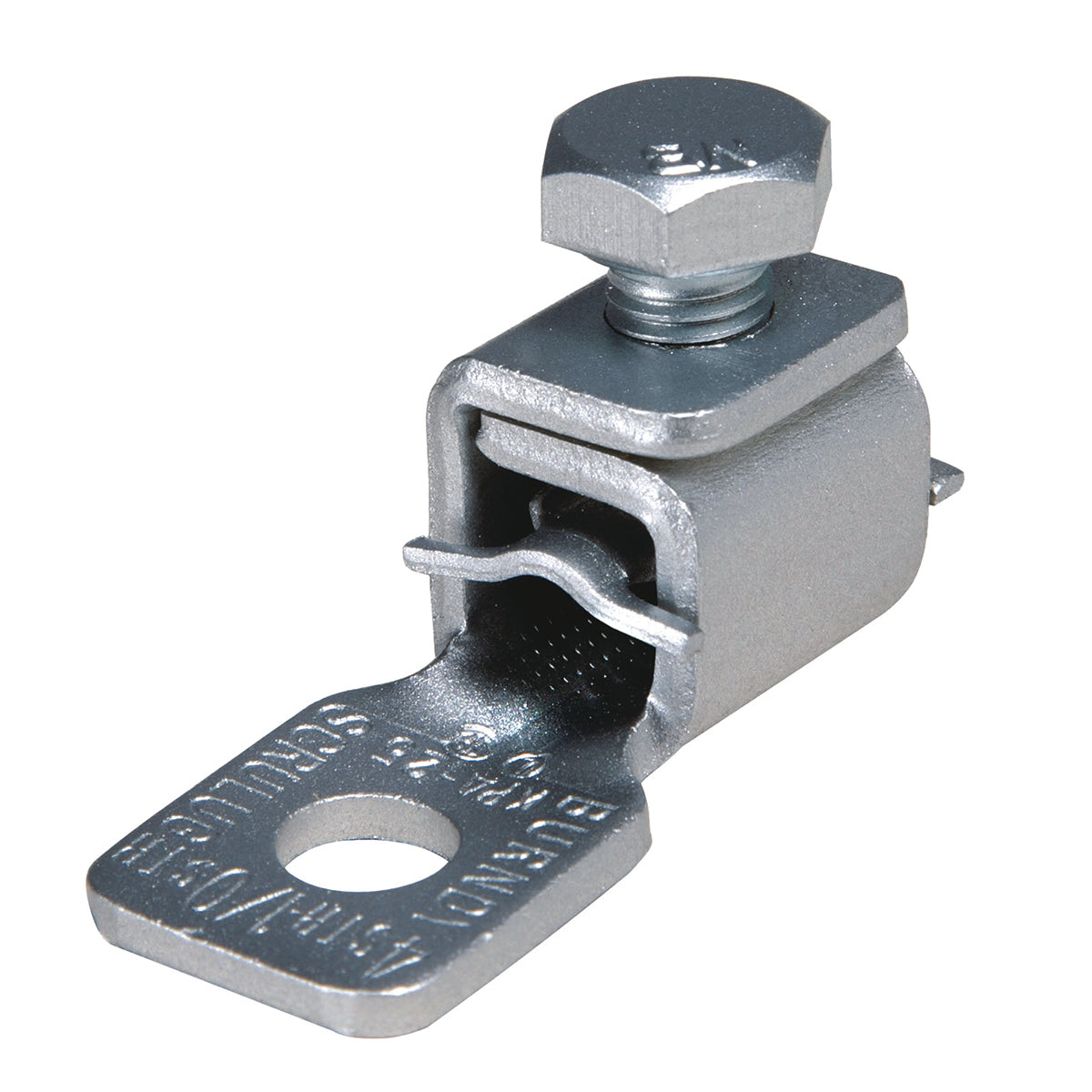

Hubbell KPA34 BURNDY SCRULUG 4/0-500, 1/2 HOL

Product Description

The Hubbell KPA34 is a BURNDY SCRULUG Cable Terminal Lug, designed for connecting copper conductors ranging from four aught (4/0) AWG up to five hundred (500) kcmil. This terminal lug features a half-inch (1/2 in) stud and one bolt hole. Its tongue measures one point five inches wide (1.5 in W) by two-tenths of an inch thick (0.2 in THK). The KPA34 is suitable for light industrial applications and offers excellent performance.

• High copper alloy tin plated terminal for reliable connections.
• Hex socket design allows easy installation with a torque rating of three hundred seventy-five inch-pounds (375 in-lb).
• Electro-zinc plated for corrosion resistance.

Product Highlights

This terminal lug provides a one-piece design for easy installation and dependable performance.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181035695

Technical Specifications

• Application: For joining a wide range of cable to equipment pads or terminal blocks, especially good in light industrial.
• Conductor Size: 4/0 AWG to 500 kcmil
• Conductor Type: Copper
• Dimensions: 3.14 in L x 2.44 in H
• Finish: Electro-Zinc Plated
• Material: Copper Alloy
• Number of Bolt Holes: 1
• Manufacturer Part Number: KPA34
• Tongue Size: 1.5 in W x 0.2 in THK
• Tongue Type: Straight
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 468A/468B, CSA Certified
