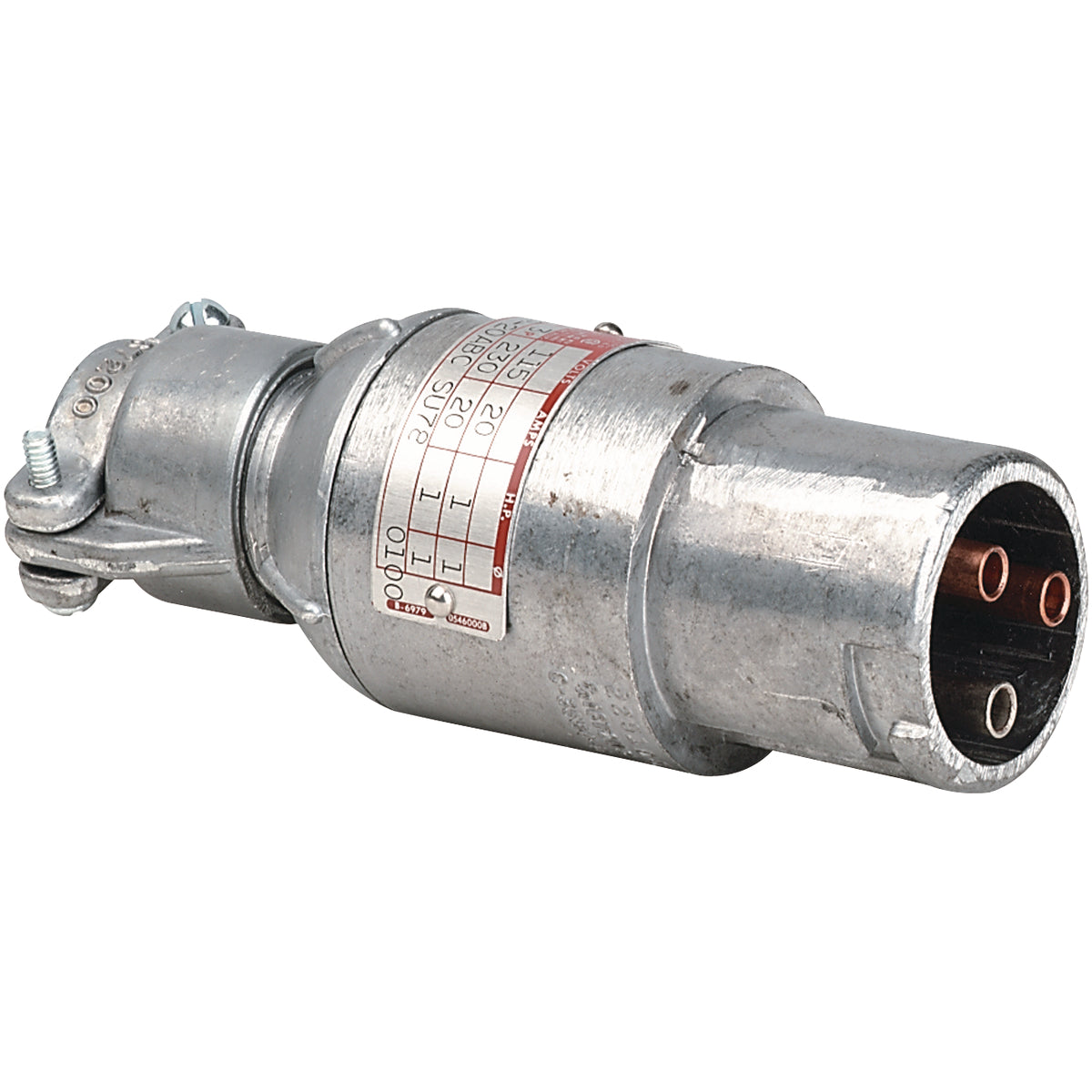

Hubbell KP-20ABC KP20ABC KIL 20A PLUG 1-Phase 115/230 VAC

Product Description

The Hubbell KP-20ABC is a pin and sleeve plug designed for 1-phase applications. It operates at 115/230 VAC with a rated current of 20 A. This plug is suitable for use in hazardous locations where flammable vapors may be present. It features heavy-duty construction for reliable performance in rough conditions.

• Designed for hazardous location applications
• Delayed action contacts for safety
• Utilizes copper-free aluminum for durability

Product Highlights

This product meets the standards for NEMA 7C/7D and is built to withstand harsh environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78393637001

Technical Specifications

• Type: 1-Phase
• Voltage Rating: 115/230 VAC
• Amperage Rating: 20 A
• Application: Hazardous Location Applications
• NEMA Rating: NEMA 7C/7D
• Horsepower: 1 hp
• Material: Copper Free Aluminum
• Dimensions: 6-3/8 in L x 1-7/8 in W x 1-7/8 in H
• Frequency Rating: 60 Hz
• Number of Poles: 3
• Number of Wires: 2
• Standards/Approvals: UL File No. E23572 | CSA LR14667 | NEC Class I, Division 1 and 2, Groups C, D, Class I, Zones 1 and 2, II B, II A
