Hubbell KK4A36U4N Universal Terminal 4 Conductor 2 AWG (Str)-600 kcmil

Product Description

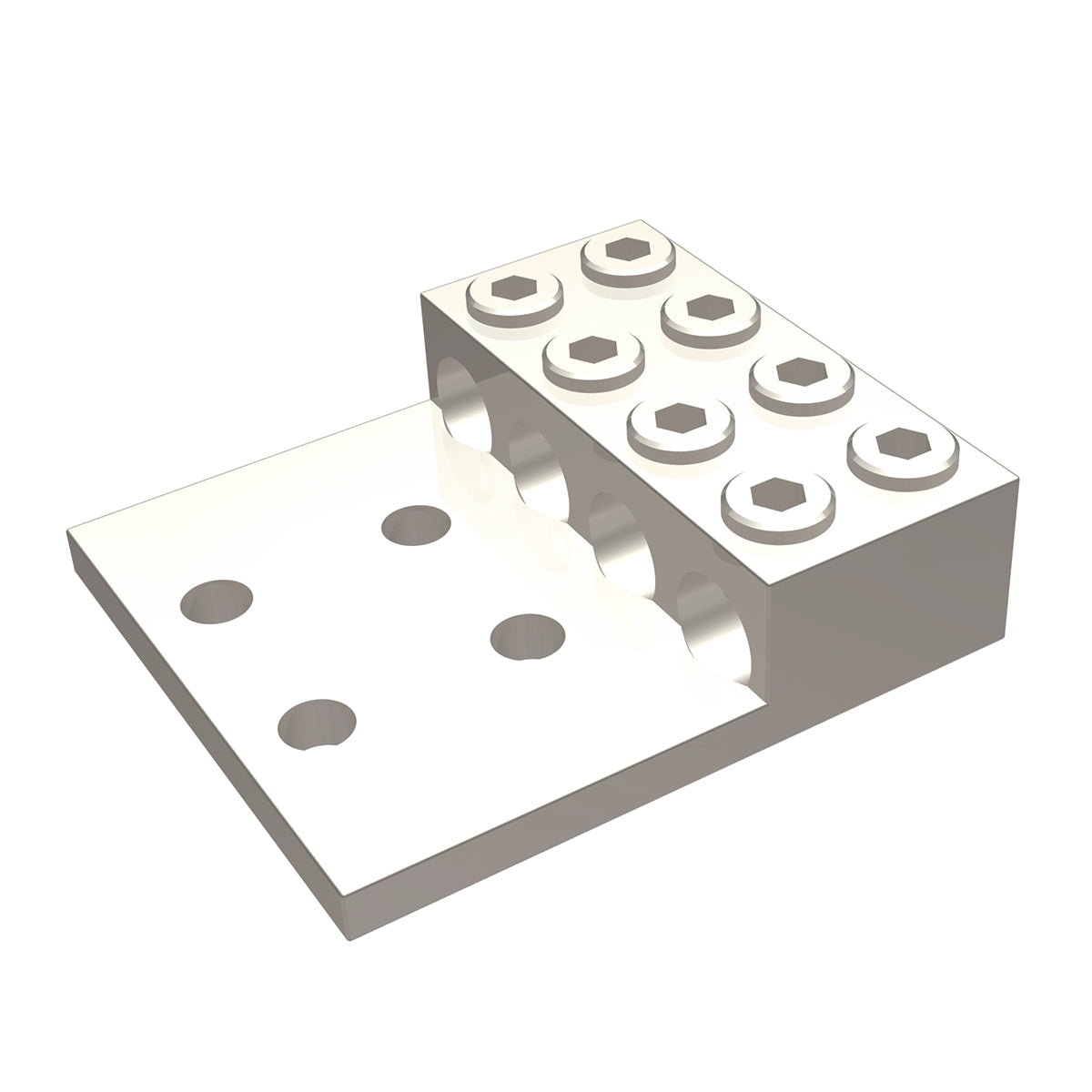

The HUBBELL KK4A36U4N is an aluminum universal terminal with a 4-conductor, 4-hole configuration. It is suitable for 2 AWG (Str)-600 kcmil conductors and features a 1/2" stud with 1.75" stud hole spacing and 8 screws. The terminal is Al/Cu rated and tin plated.

• Aluminum construction
• Universal terminal design
• Suitable for 2 AWG (Str)-600 kcmil conductors

Product Highlights

Aluminum universal terminal, 4 conductor, 4 hole, 2 AWG (Str)-600 kcmil, 1/2" stud, 1.75" stud hole spacing, 8 screws, Al/Cu rated, Tin plated.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: KK4A36U4N
• Country of Origin: N/A

Technical Specifications

• Conductor Size: 2 AWG (Str)-600 kcmil
• Stud Size: 1/2"
• Stud Hole Spacing: 1.75"
• Number of Screws: 8
• Material: Aluminum
• Rating: Al/Cu Rated
• Plating Type: Tin Plated
• Type: Universal Terminal
• Number of Conductors: 4
• Number of Holes: 4
• Application: For Aluminum and Copper Conductors
• Connector Type: Parallel Set-Screw
• EU RoHS Indicator: Yes
• Material - Hardware: Aluminum
• Physical Attribute - Number of Holes: 4
• Plated: Y
• Dimension - Bolt Hole Size inch: 0.56 in
• Dimension - Bolt Size fraction: 1/2
• Dimension - E Spacing between Holes fraction: 1-3/4 in
• Dimension - F Width Center to Center inch: 1.75 in
• Dimension - Height inch: 1.51 in
• Dimension - Height mm: 38.4 mm
• Dimension - Hole Size inch: 0.56 in
• Dimension - Hole Size mm: 14 mm
• Dimension - L Length Overall inch: 5.63 in
• Dimension - Length Overall mm: 143 mm
• Dimension - N inch: 0.63 in
• Dimension - Pad Width inch: 5.04 in
• Dimension - Stud Size inch: 0.56 in
• Conductor - AL Str Size: 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil
• Conductor - AL Str Size Range: 2 Str. - 600 Kcmil
• Conductor - Copper Str Size Range: 2 Str. - 600 Kcmil
• Conductor Type: CU C Str-Size AL C Str-Size
• Number Of Wires: 4
• Buy America(n) Qualified: Buy America Compliant (All status valid till December 2025) Buy American Act Compliant (All status valid till December 2025) BABA Compliant (All status valid till December 2025)
• Certification - CSA Approved: Yes
• Certification - UL Listed Direct Burial: No
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: EX
• UL Listed: Yes
• Bolt Hole Size: 0.56 in
• Connection Type: Terminal
• Direct Burial?: No
• Plated?: Yes
• Brand: Hubbell Incorporated
