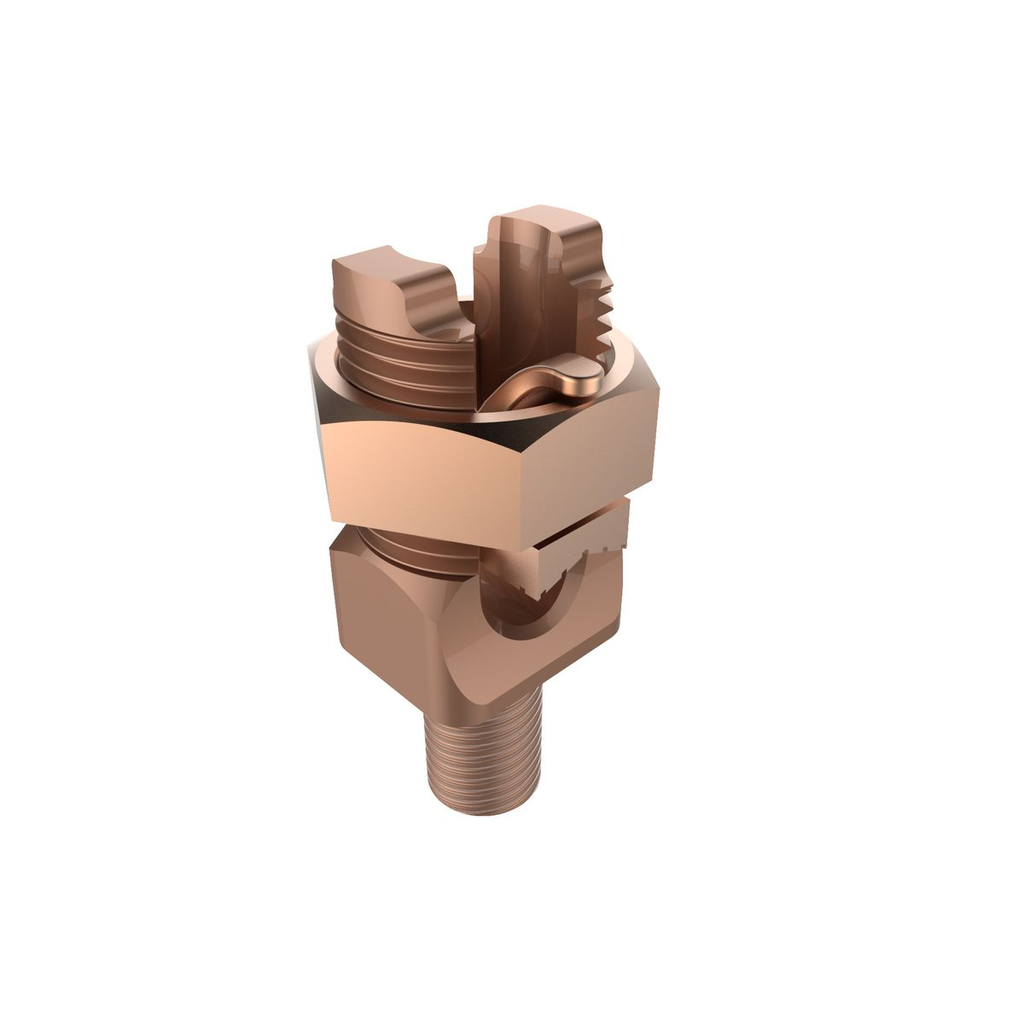

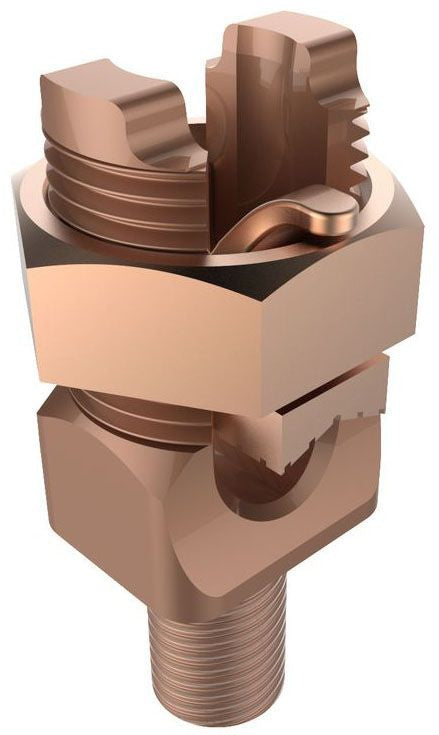

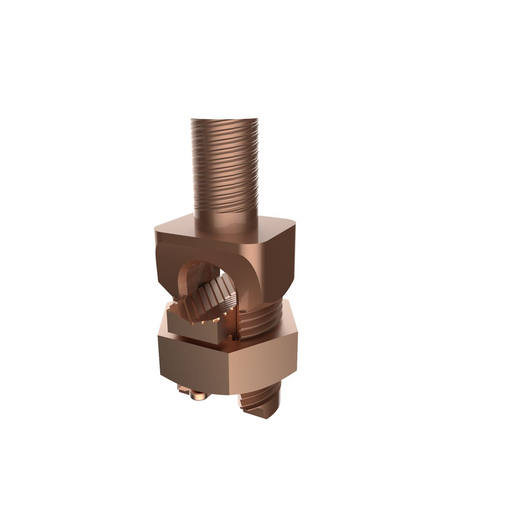

Hubbell KC31 Burndy Mechanical Grounding Connector, 1 AWG - 350 AWG, 5/8 Stud

Product Description

The Hubbell KC31 is a mechanical grounding connector designed to connect cable to flat surfaces. It accommodates conductor sizes from one AWG to three hundred fifty kcmil. The connector is equipped with a five-eighths inch stud for secure attachment.

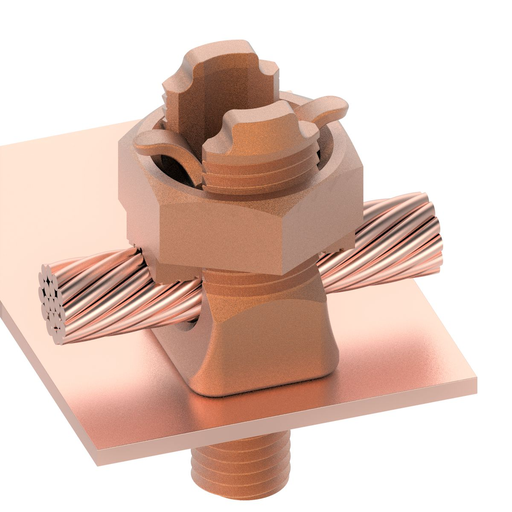

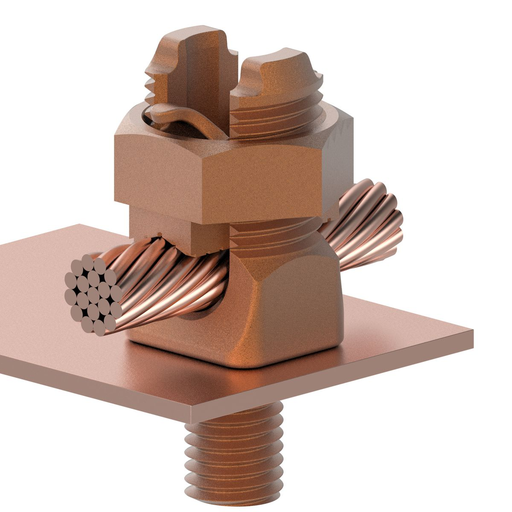

• Designed for one or two cables to steel structures
• One-wrench installation for quick setup
• Suitable for direct burial applications

Product Highlights

The KC31 connector ensures reliable grounding for various electrical applications. It is UL listed and compliant with industry standards, providing a durable connection even in harsh conditions.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Manufacturer: Burndy

Technical Specifications

• Conductor Size: 1 AWG to 350 kcmil
• Connection Type: Cable to Flat
• Dimensions: 3.19 inches length x 1.43 inches width x 2.25 inches height
• Material: Copper
• Plated: No
• Application: Used for grounding one or two cables to steel structures, fence posts, transformers
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant
• Country of Origin: USA
