Hubbell KC28 BURNDY 1-4/0 STR 3/4 POST 1 CON KC28

Product Description

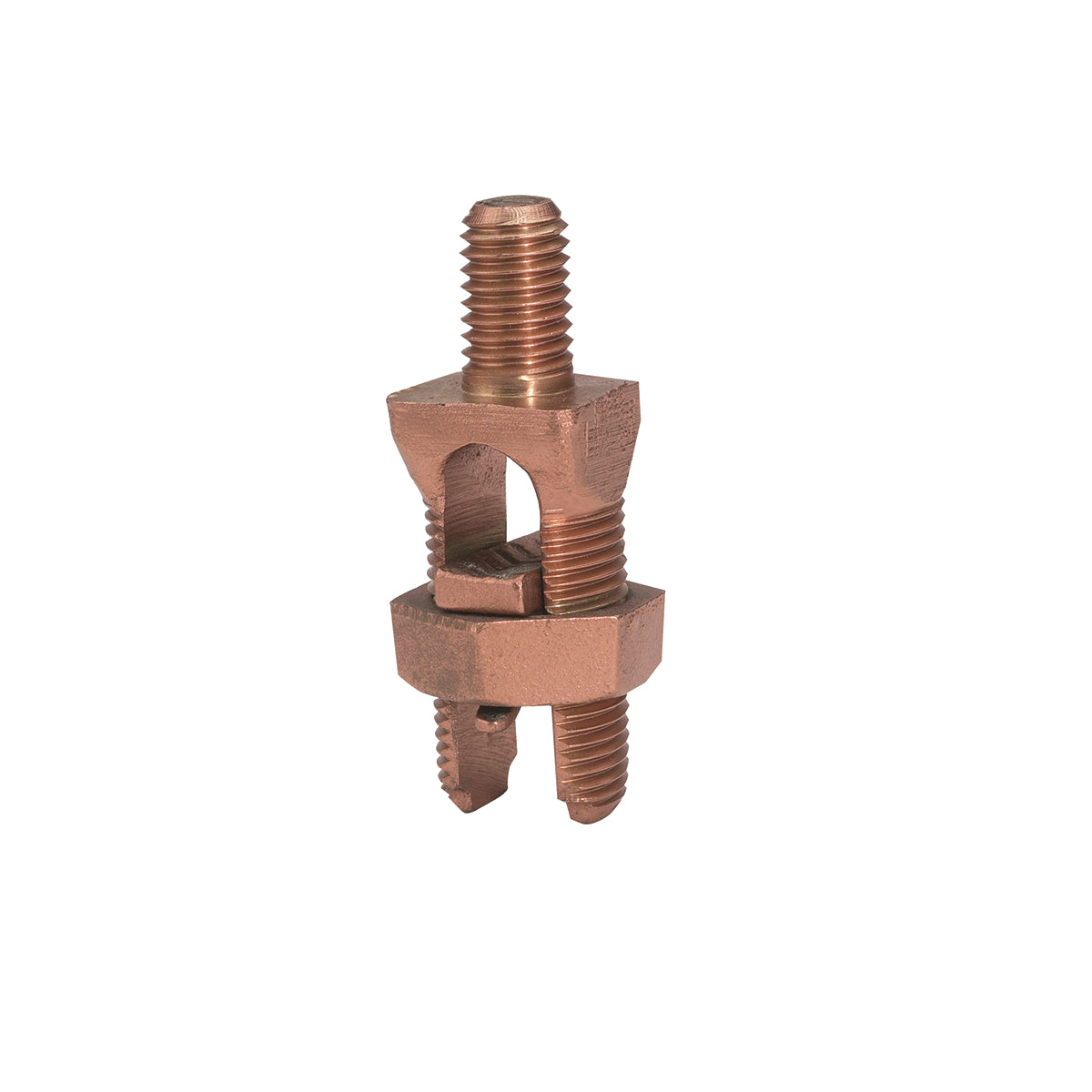

The Hubbell KC28 is a BURNDY mechanical grounding connector designed for use with one conductor from one to four-aught American wire gauge. This connector is built for durability and reliability in grounding applications.

• Compatible with 1 to 4/0 AWG conductors.
• Utilizes a five-eighths inch stud for secure connections.
• Ideal for direct burial applications.

Product Highlights

The KC28 ensures effective grounding for electrical systems and structures.

Product Information

Standard Information

• Application: Used to ground one or two copper cables to steel structures and fence posts.
• Manufacturer: Hubbell

Technical Specifications

• Conductor Size: 1 to 4/0 AWG
• Connection Type: Cable to Flat
• Dimensions: 2.95 inches long x 1.18 inches wide x 1.75 inches high
• Finish: Unplated
• Stud Size: 5/8 inches
• Series: KC Series
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant
• Number of Conductors: 1
