Product Description

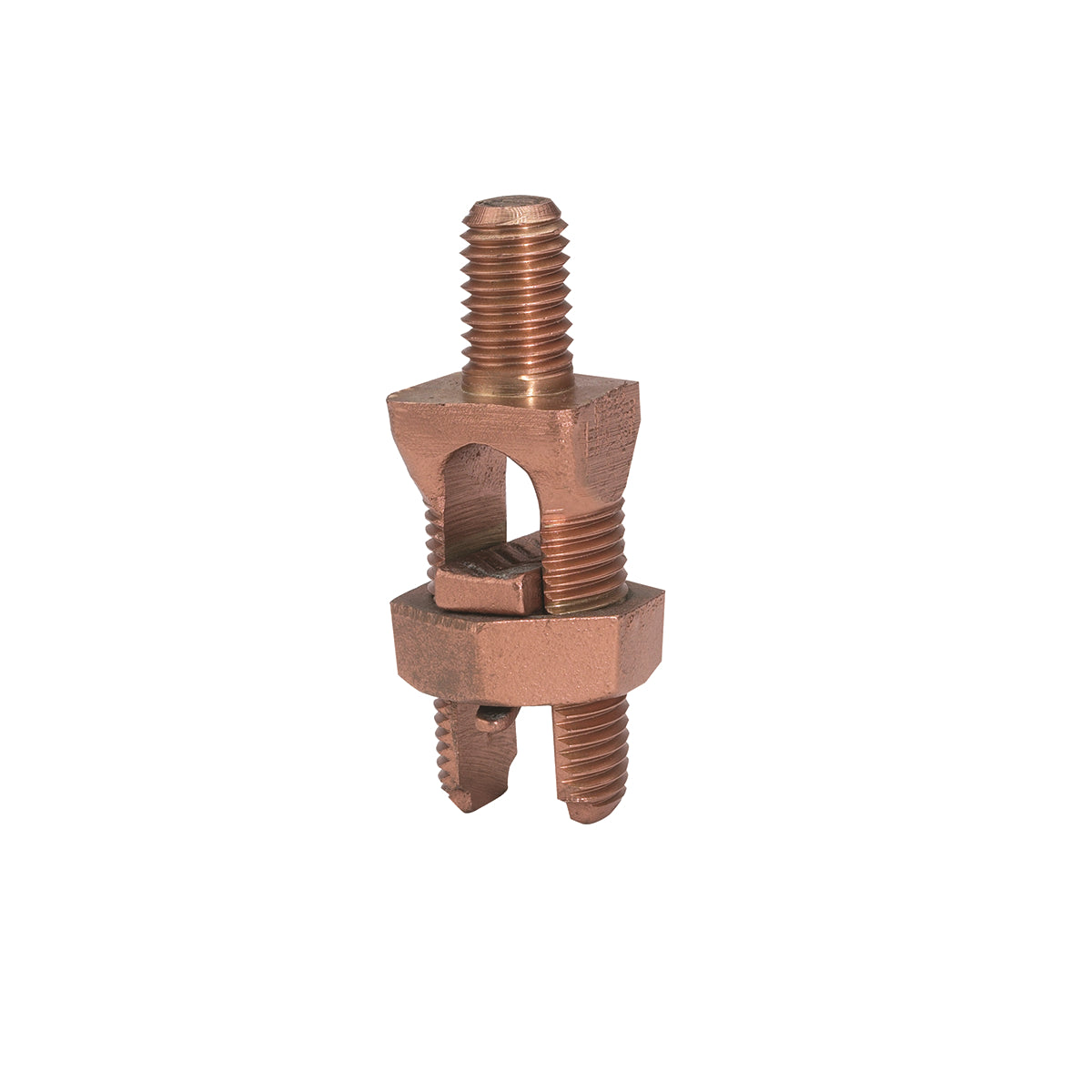

Hubbell KC23 is a mechanical grounding connector designed for connecting copper cables to various structures. This connector works with conductors ranging from ten to two AWG and features a three-eighth inch stud. Its compact design allows for efficient cable to flat connections.
- Connects one or two cables from busbar
- Compatible with 10 to 2 AWG stranded conductors
- Measures 0.469 inches in length, 0.62 inches in width, and 1.05 inches in height
Product Highlights
This connector ensures reliable performance in demanding conditions. It is UL 467 listed and approved for direct burial installations in earth or concrete.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78181025535
Technical Specifications
-
Application: Connects copper cables to steel structures and allows for direct burial
-
Color: Bronze
-
Conductor Size: 10 to 2 AWG
-
Connection Type: Cable to Flat
-
Dimensions: 0.469 inches length x 0.62 inches width x 1.05 inches height
-
Finish: Unplated
-
Series: KC Series
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65 Warning
-
Stud Size: 3/8 inch
