Product Description

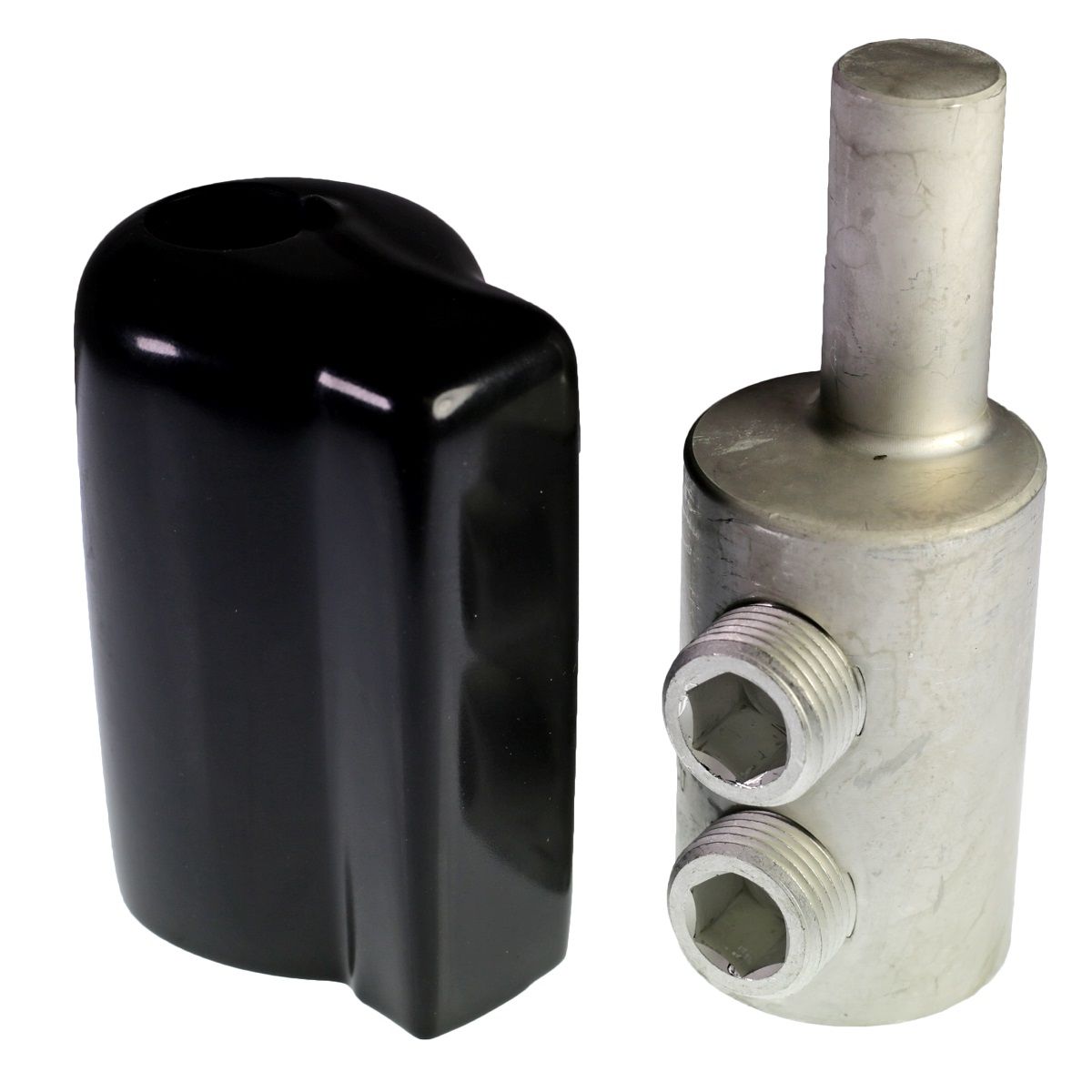

The Hubbell KAPO750 is a mechanical pin adapter designed for conductors ranging from three hundred fifty to seven hundred fifty kcmil. This off-centered pin adapter features a pin diameter of one and three-fourth inches and a barrel length of one point seventy-six inches. The device is rated for six hundred VAC and has a torque specification of five hundred N.
- Suitable for use with upsized conductors and fine strand conductors.
- Includes Plastisol insulated covers.
- Dual rated for both copper and aluminum conductors.
Product Highlights
This mechanical pin adapter is ideal for connecting to mechanical connectors found in various electrical devices.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UNSPSC: 39121427
Technical Specifications
-
Application: To terminate upsized conductor and/or fine strand conductor into mechanical connectors found in molded case circuit breakers, panel board equipment, and other switchgear.
-
Barrel Length: 1.76 inches
-
Conductor Size: 350 to 750 kcmil
-
Dimensions: 4.46 inches long x 1.87 inches wide x 2.37 inches high
-
Manufacturer Part Number: KAPO750
-
Pin Diameter: 1.75 inches
-
Specifications: 500 N Torque
-
Standards/Approvals: cUL Listed, CSA Certified, IEC 947, OSHPD Approved, UL File No. E1491. PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Type: Off Centered
-
Voltage Rating: 600 VAC
