Product Description

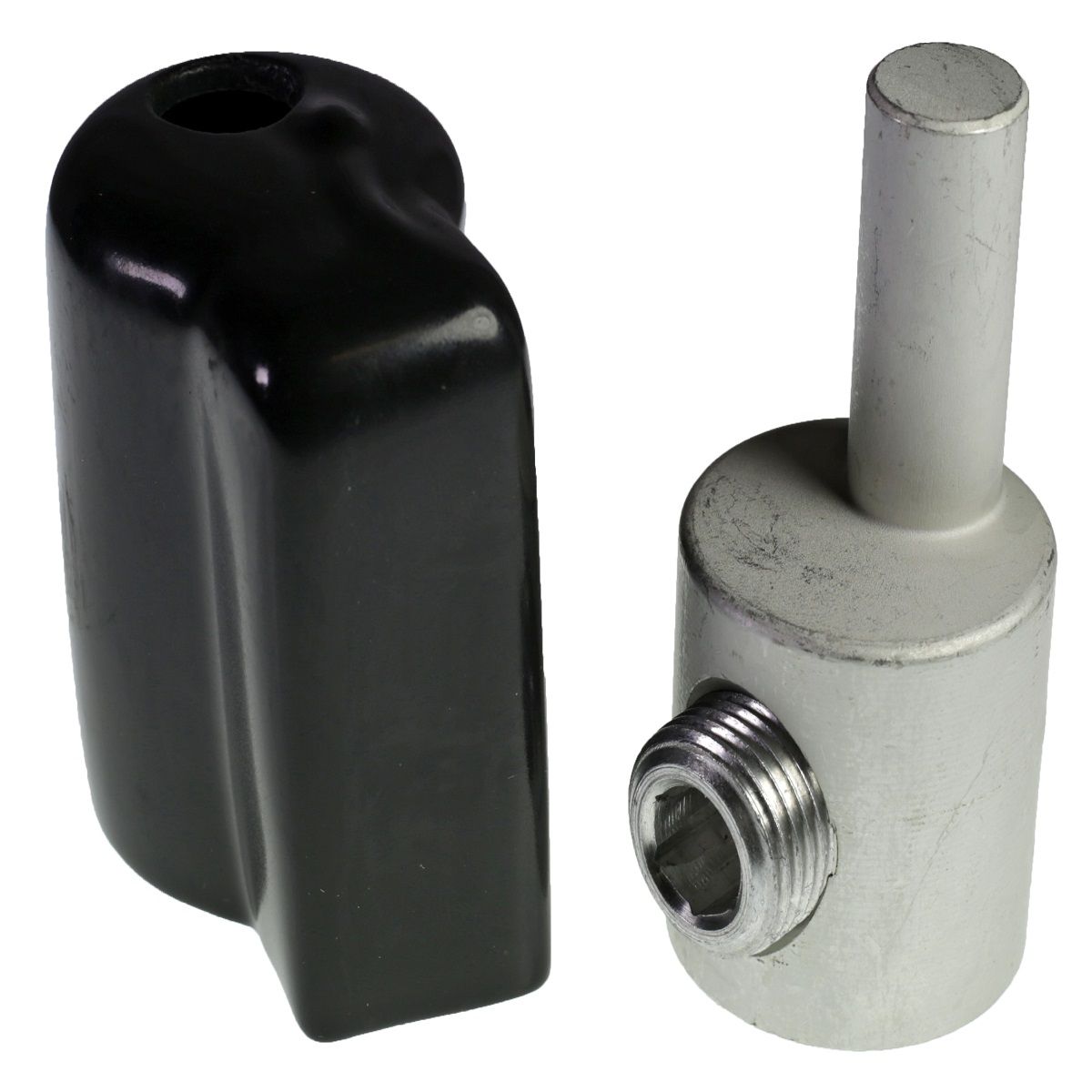

The Hubbell KAPO350 is a mechanical pin adapter designed for efficient connections between 1/0 AWG and 350 kcmil conductors. This model features an off-centered design and is rated for 600 volts and 350 amps. It is suitable for both aluminum and copper conductors, making it versatile for various electrical applications. This unit is essential for use in molded case circuit breakers, panel board equipment, and other switchgear systems.
- Supports both aluminum and copper conductors
- UL listed for fine strand conductors
- Designed for ease of installation
Product Highlights
The KAPO350 provides reliable performance in harsh environments and ensures a secure electrical connection with its robust construction.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: KAPO350
Technical Specifications
-
Application: For terminating upsized and fine strand conductors
-
Barrel Length: 1.34 inches
-
Conductor Size: 1/0 AWG to 350 kcmil
-
Dimensions: 2.75 inches long x 1.5 inches wide x 2 inches high
-
Pin Diameter: 1.38 inches
-
Torque Specification: 500 N
-
Standards: BAA Compliant, cUL Listed, CSA Certified, IEC 947, OSHPD Approved, UL File No. E1491
-
Voltage Rating: 600 VAC
