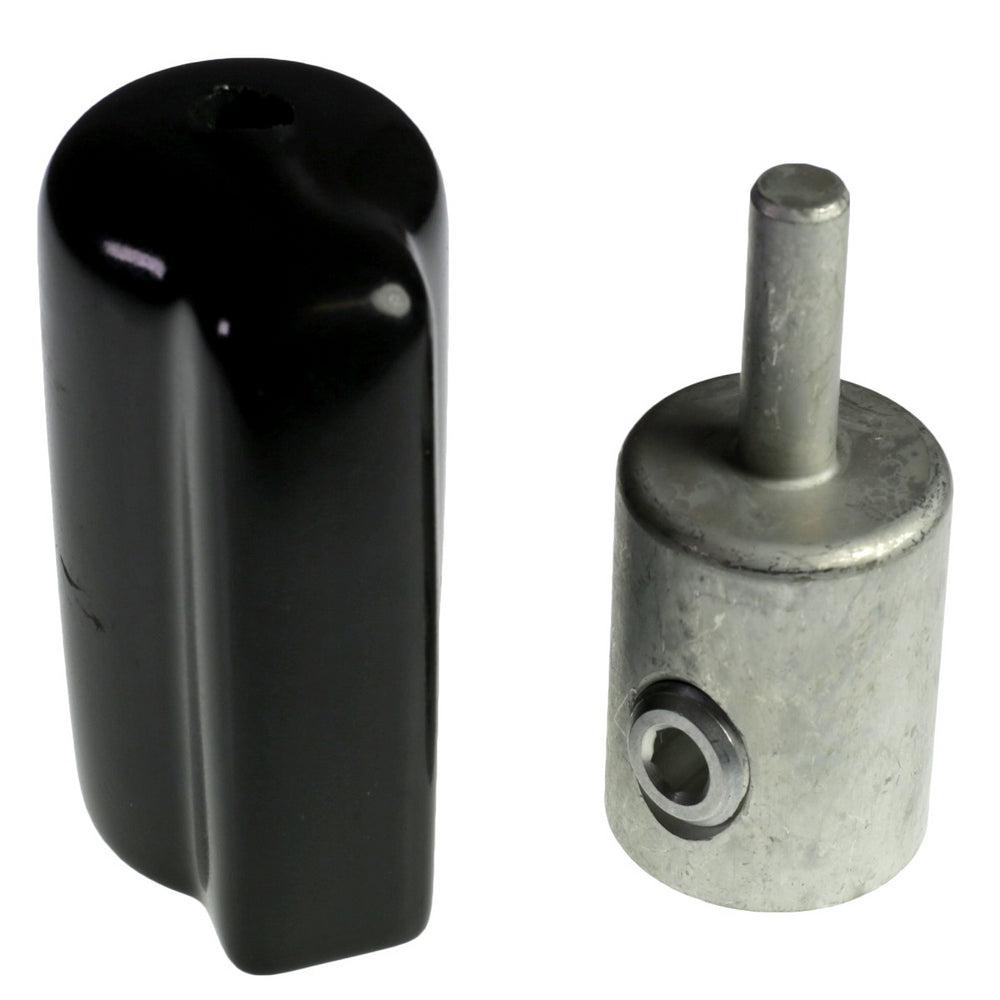

Hubbell KAP1/0 BURNDY 1/0 AWG AL MECH PIN ADAPTOR

Product Description

BURNDY Mechanical Pin Adapter from Hubbell, MPN KAP1/0, is designed for use with conductors sized six to one aught American Wire Gauge (AWG). This product has a pin diameter of one inch and a barrel length of zero point eighty-four inches, making it suitable for various applications in electrical wiring.

• Rated for both copper and aluminum conductor
• UL listed for fine strand conductor use
• Includes Plastisol insulated covers

Product Highlights

This mechanical pin adapter allows for safe and secure terminations in electrical installations.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 62194549332

Technical Specifications

• Application: To terminate upsized conductor and/or fine strand conductor into mechanical connectors found in molded case circuit breakers, panel board equipment, and other switchgear.
• Barrel Length: 0.84 in
• Conductor Size: 6 to 1/0 AWG
• Dimensions: 2.01 in L x 1.12 in W x 1.43 in H
• Manufacturer Part Number: KAP1/0
• Pin Diameter: 1 in
• Specifications: 170 A, 100 N Torque
• Standards/Approvals: BAA Compliant, cUL Listed, CSA Certified, IEC 947, OSHPD Approved, UL File No. E1491, PROP65 warning applicable.
• Type: Centered
• Voltage Rating: 600 VAC
