Hubbell KA8C BURNDY COPPER TERM.LUG 14SOL.- 8STR.CU W/#10 STUD HOLE

Product Description

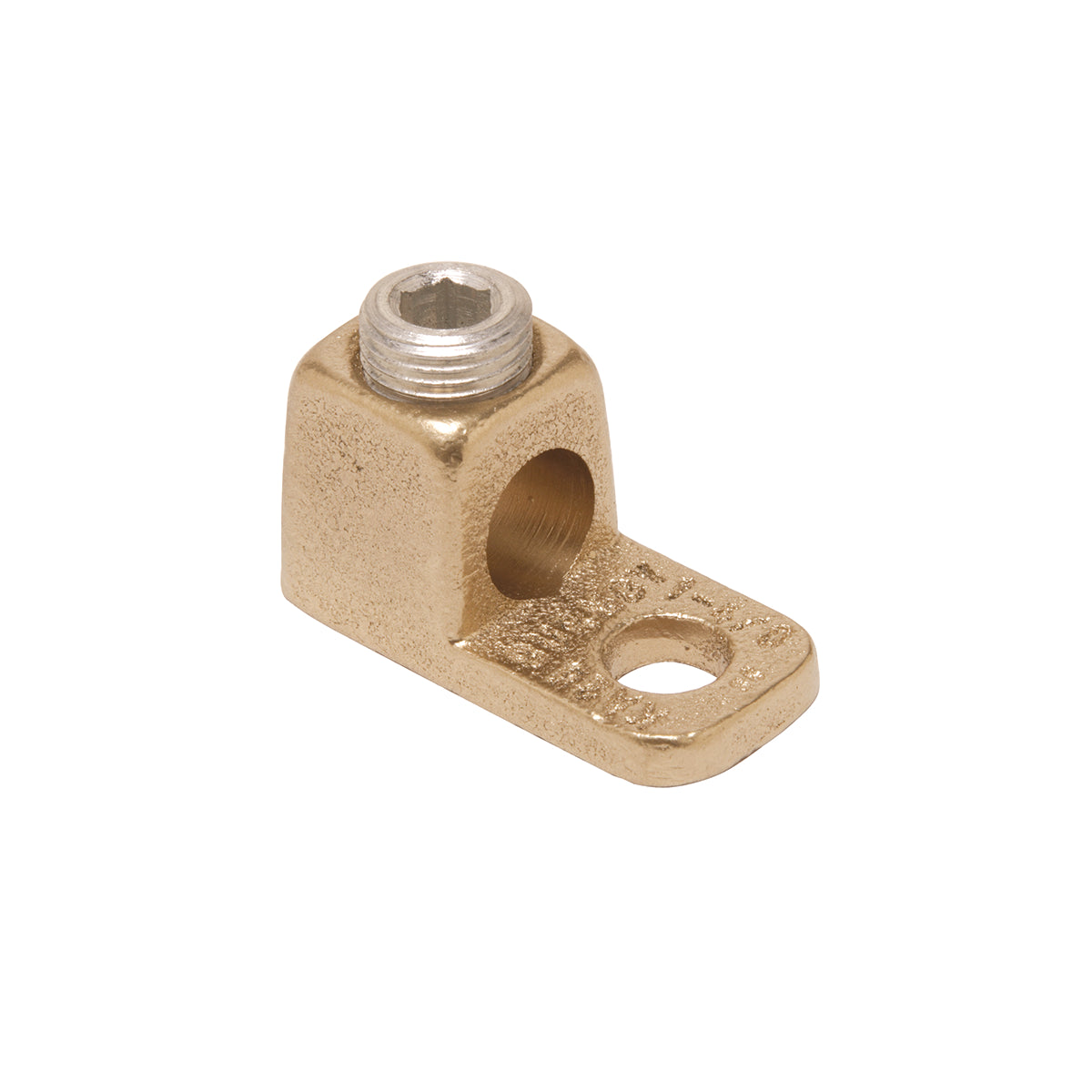

The Hubbell KA8C is a BURNDY copper term lug designed for mechanical connections. This lug is suitable for stranded and solid copper conductors ranging from fourteen to eight AWG. It features a #10 stud and has one bolt hole for easy installation.

• Works with stranded solid copper conductors from fourteen to eight AWG
• Constructed from a copper alloy material
• RoHS compliant and meets several safety standards

Product Highlights

This terminal lug is compact and offers a reliable connection for various electrical needs.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: KA8C

Technical Specifications

• Application: For joining a wide range of copper cable to equipment pads or terminal blocks
• Conductor Size: fourteen to eight AWG
• Conductor Type: Stranded Solid Copper
• Dimensions: thirteen over sixteen inches L x five over eight inches H
• Finish: Unplated
• Material: Copper Alloy
• Number of Bolt Holes: one
• Series: KA Series
• Specifications: seven thirty-seconds inches hole, twenty-five inch-pound installation torque, one screw
• Standards/Approvals: RoHS Compliant, UL 468A/468B, CSA Certified, PROP65 Warning applicable
• Stud Size: #10
• Tongue Size: zero point thirty-eight inches W x zero point zero eight inches THK
