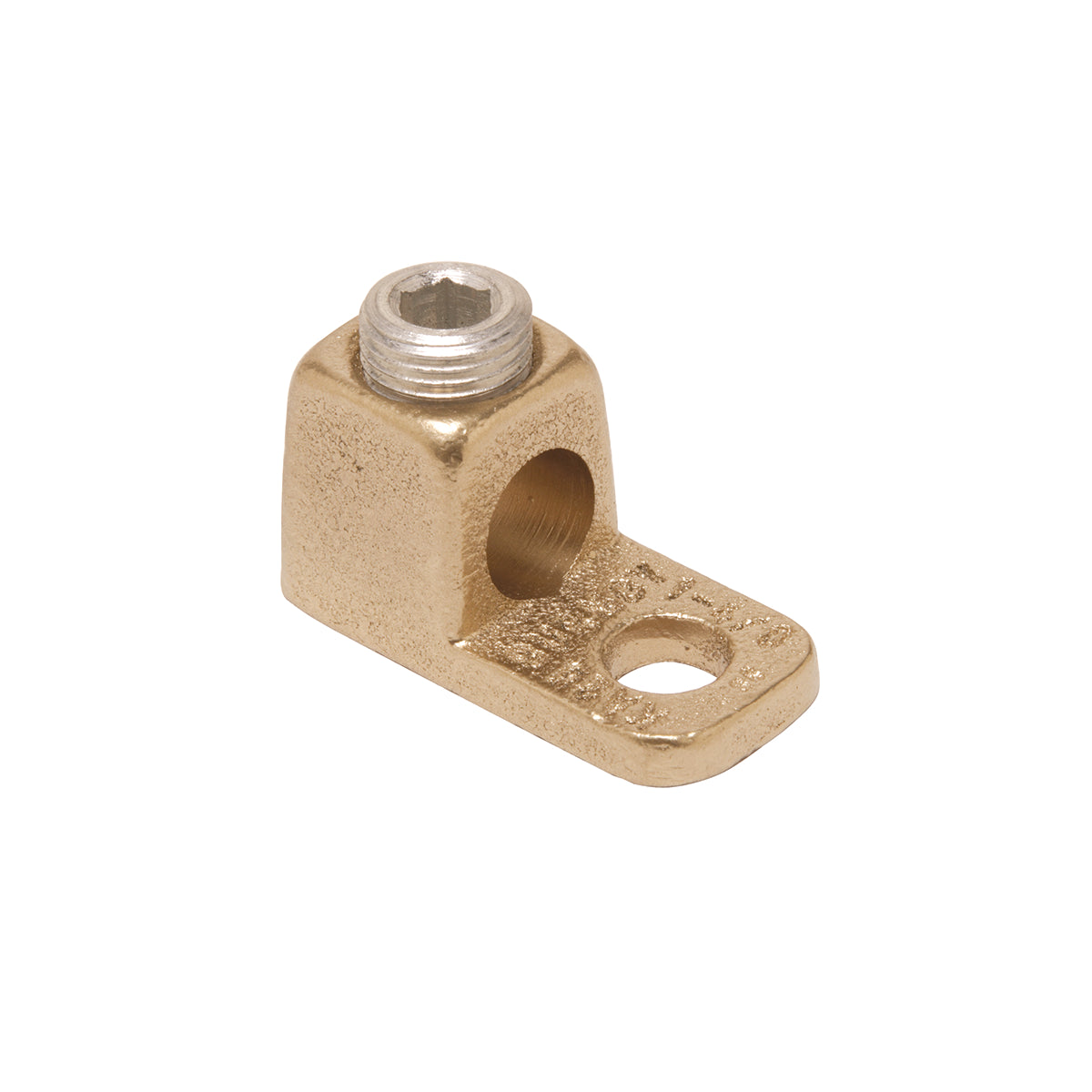

Hubbell KA4C KA Series Terminal Connector Lug 14 to 4 AWG 1/4 in Stud

Product Description

The Hubbell KA4C is a terminal connector lug designed for use with stranded and solid copper conductors. This lug accommodates wire sizes from fourteen to four AWG. It features a one-quarter inch stud hole and is compatible with various applications where secure connections are required.

• Compatible with fourteen to four AWG solid and stranded copper conductors
• One-quarter inch stud hole for secure mounting
• Designed for multiple applications in electrical wiring

Product Highlights

The KA4C terminal lug offers reliable performance and versatility in electrical connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• Category: Electrical > Wiring Connectors > Mechanical Connectors & Lugs > Mechanical Terminal Lugs

Technical Specifications

• Application: For joining a wide range of copper cable to equipment pads or terminal blocks
• Conductor Size: 14 to 4 AWG
• Conductor Type: Stranded Solid Copper
• Dimensions: 1-1/8 in L x 3/4 in H
• Finish: Unplated
• Material: Copper Alloy
• Number of Bolt Holes: 1
• Series: KA Series
• Specifications: (1) Screw, 0.54 in W Pad, 45 Installation Torque
• Standards/Approvals: RoHS Compliant | UL 468A/468B | CSA Certified | PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Stud Size: 1/4 in
• Tongue Size: 0.5625 in W x 0.1 in THK
