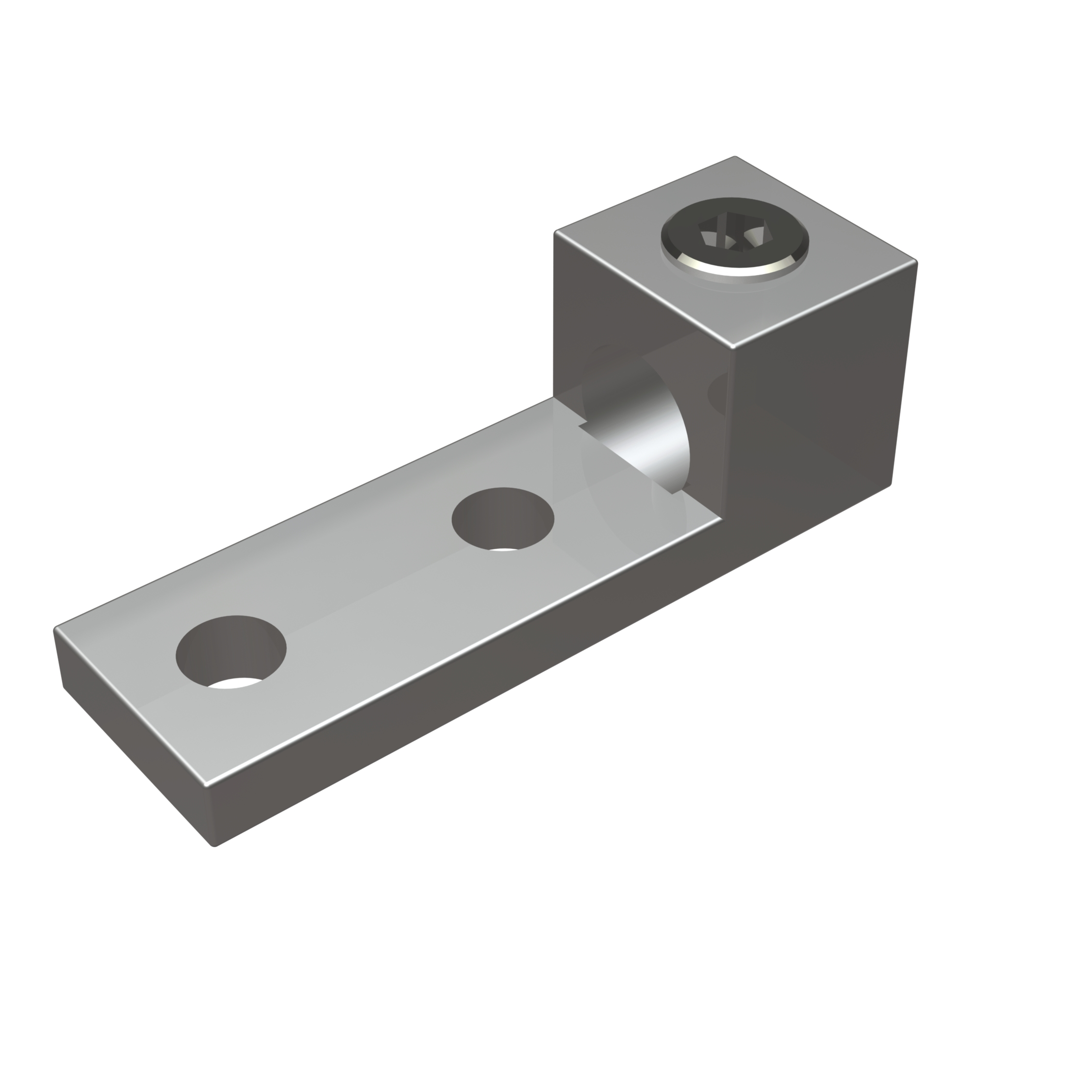

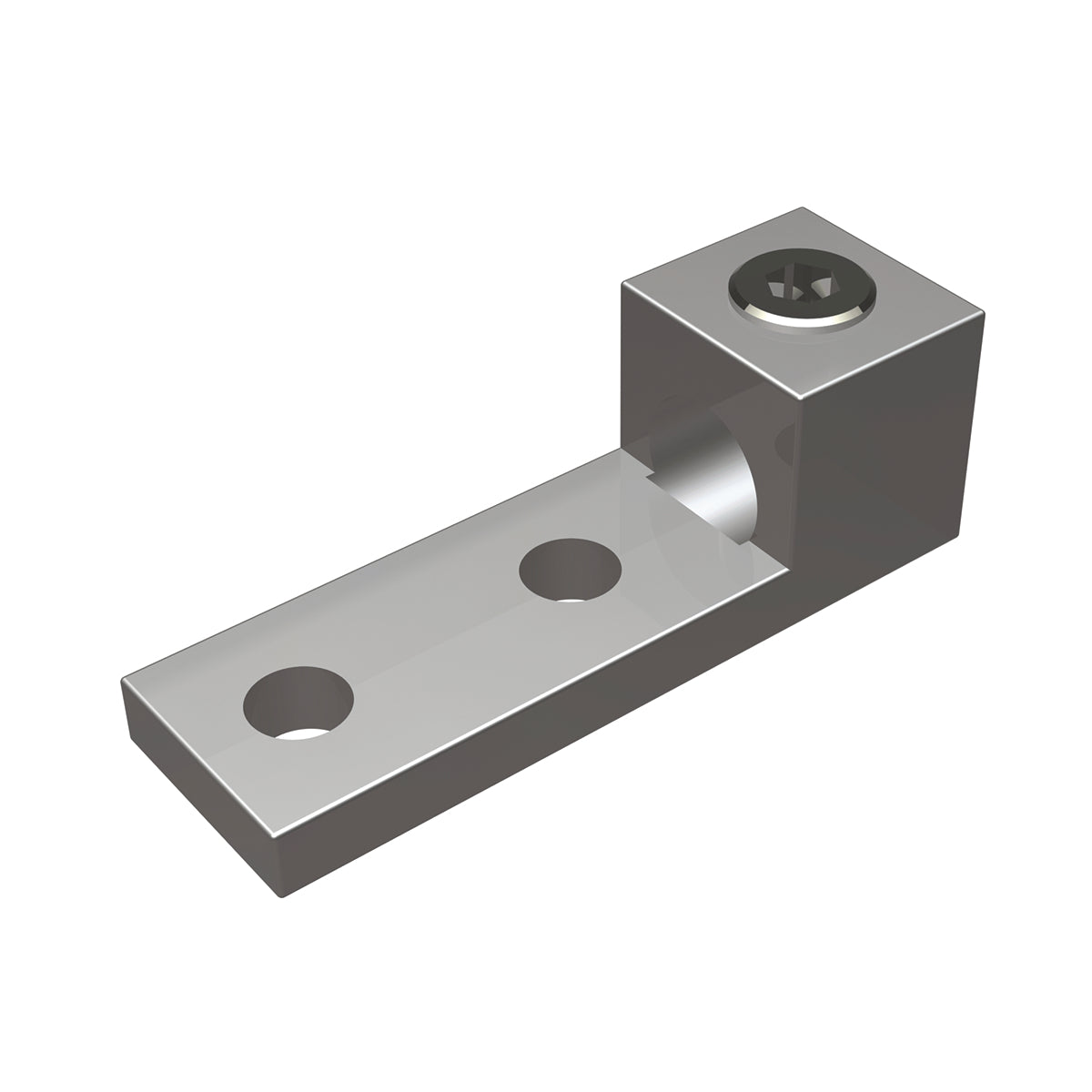

Hubbell KA44U2N Aluminum Universal Terminal 500-1000 kcmil 2 Hole

Product Description

The Hubbell KA44U2N Aluminum Universal Terminal is a reliable electrical connection solution designed for use with aluminum and copper conductors. This terminal, rated for conductor sizes between five hundred to one thousand kcmil, features a dual rated design for versatility in applications.

• Rated for aluminum and copper conductors
• Designed for a bolt hole size of 0.5 inches
• Constructed with electro-zinc plating for durability

Product Highlights

The KA44U2N combines high strength aluminum construction with electro-tin plating, reducing contact resistance and ensuring reliable performance.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Manufacturer Part Number: KA44U2N

Technical Specifications

• Application: For aluminum and copper conductors
• Conductor Size: 500 to 1000 kcmil
• Material: Aluminum
• Number of Bolt Holes: 2
• Stud Size: 0.5 inches
• Tongue Size: 1.77 inches wide by 0.5 inches thick
• Length: 4.75 inches
• Width: 1.75 inches
• Plated: Yes
• Plating Type: Tin
• Connection Type: Terminal
• Buy American Compliant: Yes
