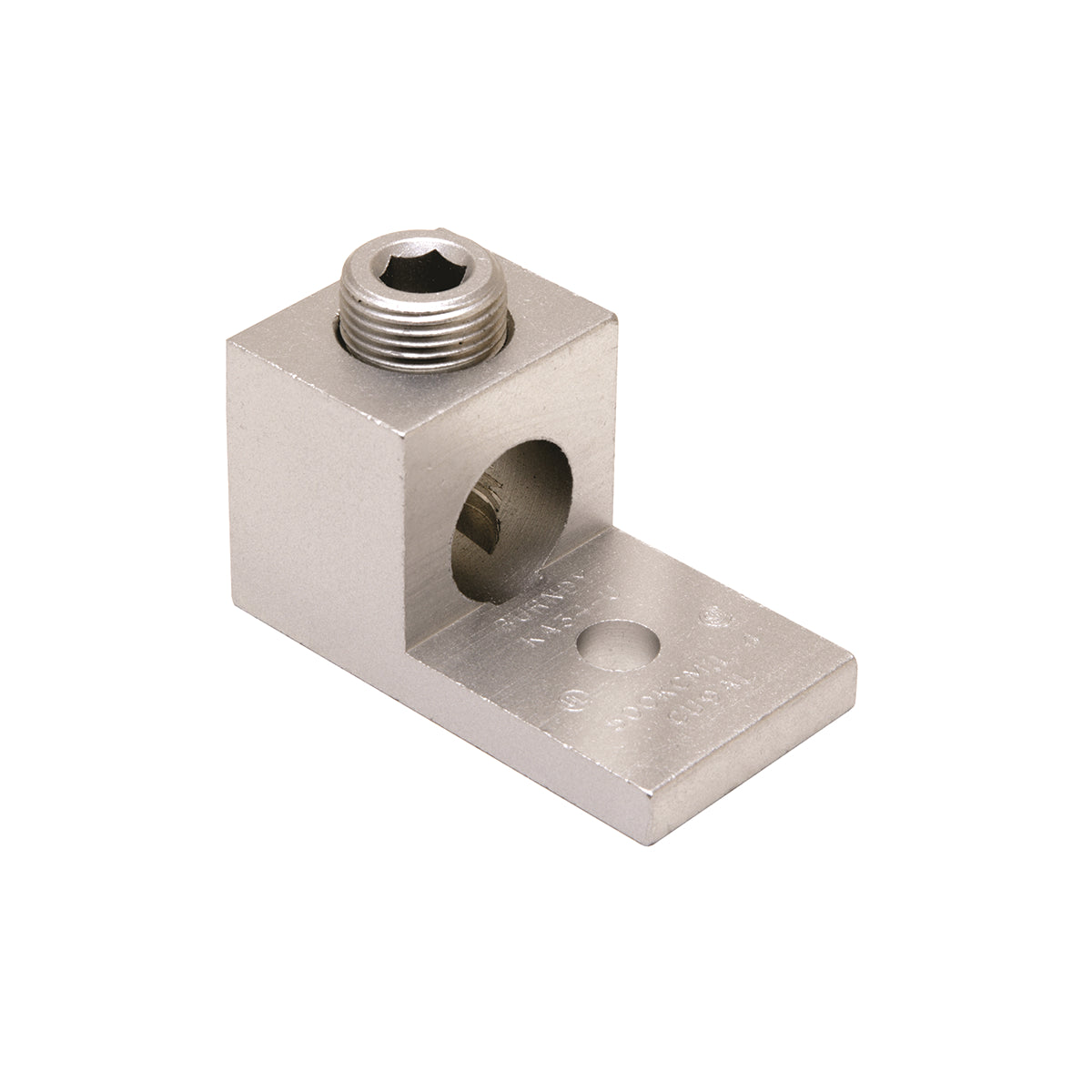

Hubbell KA36U KA-U Dual Rated Universal Mechanical Bolted Lug and Terminal 2 AWG to 600 kcmil Copper/Stranded Aluminum Conductor 3/8 in Stud

HUBBELL
Brand: HUBBELL
SKU: KA36U
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Hubbell KA36U is a mechanical bolted lug and terminal designed for dual-rated use with copper and stranded aluminum conductors. This product accommodates conductor sizes from two AWG to six hundred kcmil, and features a three-eighths inch stud for secure installation. With a single bolt hole, it ensures a solid connection.

  • Constructed from high strength aluminum alloy
  • Electro-zinc plating for low contact resistance
  • Designed for easy installation with a torque specification of five hundred inch-pounds

Product Highlights

This lug is suitable for various electrical applications where reliable connections are necessary. The electro-zinc plating provides corrosion resistance, making it ideal for outdoor usage.

Product Information

Standard Information

  • Manufacturer: Hubbell
  • MPN: KA36U
Technical Specifications
Application
For aluminum and copper conductors
Conductor Size
2 AWG to 600 kcmil
Conductor Type
Copper/Stranded Aluminum
Dimensions
3.19 inches L x 1.56 inches H
Finish
Electro-Zinc Plated
Material
Aluminum
Number of Bolt Holes
1
Series
KA-U
Specifications
1.56 inches H x 1.5 inches W Collar, (1) Allen Key Screw, 500 in-lb Installation Torque, 1-Conductor
Standards/Approvals
ARRA Compliant | BAA Compliant | RoHS Compliant | AL9CU Rated | CSA Certified | UL 468A/468B | UL 486A | UL 486B | Buy American Act Compliant
Stud Size
3/8 inches
Tongue Size
1.52 inches W x 0.44 inches THK
Tongue Type
Straight
Type
Dual Rated Universal
