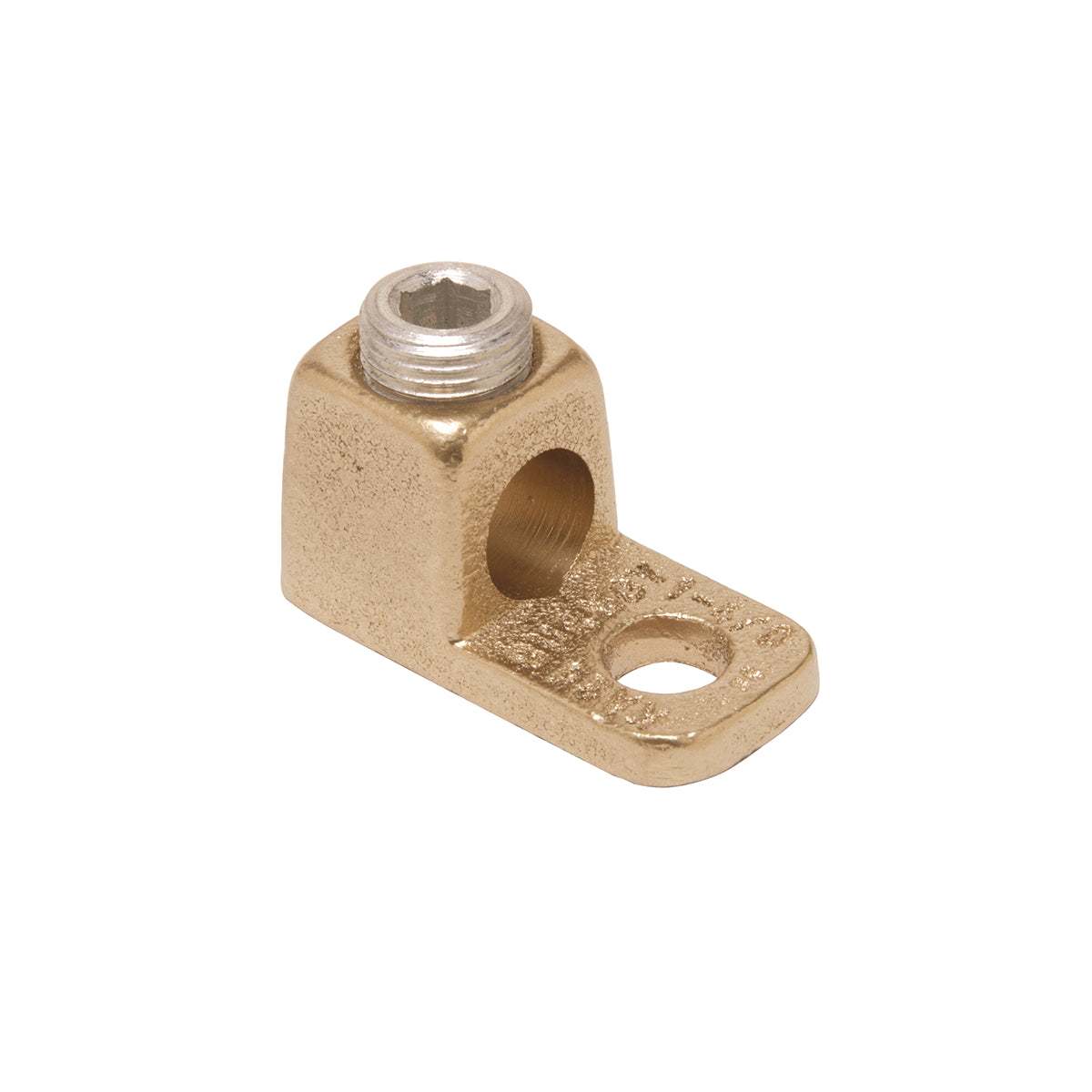

Hubbell KA34 BURNDY COPPER TERM LUG 4/0-500 CUSTR W/ 1/2STUD HOLE

Product Description

The Hubbell KA34 is a BURNDY copper term lug designed for stranded copper conductors. This component accommodates conductor sizes from four aught (4/0) to five hundred thousand circular mils (500 kcmil). It features a half-inch stud and one bolt hole for secure connections.

• Fits 4/0 AWG to 500 kcmil stranded copper conductors.
• Compatible with half-inch studs for reliable attachment.
• Constructed from copper and electro-zinc plated for durability.

Product Highlights

The KA34 is suitable for connecting a variety of copper cables to equipment pads or terminal blocks. The design includes a tongue measuring one point three seven five inches in width and point two eight inches in thickness, ensuring a strong and reliable connection.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181036585

Technical Specifications

• Application: For copper cable, joining a wide range of cable to equipment pads or terminal blocks and light industrial
• Conductor Size: 4/0 AWG to 500 kcmil
• Conductor Type: Stranded Copper
• Dimensions: 2-9/16 in L x 2-3/32 in H
• Finish: Electro-Zinc Plated
• Includes: 1-Hole of 9/16 in and 64/79 in Screw
• Manufacturer Part Number: KA34
• Material: Copper
• Number of Bolt Holes: 1
• Series: KA Series
• Specifications: 1.12 in L Collar, Hex Screw, 275 in-lb Installation Torque, 13/16 in Bolt
• Standards/Approvals: RoHS Compliant, UL 468A/468B, UL 486A, UL 486B
• Stud Size: 1/2 in
• Temperature Rating: 194 deg F
• Tongue Size: 1.375 in W x 0.28 in THK
• Tongue Type: Straight
• Type: Mechanical
