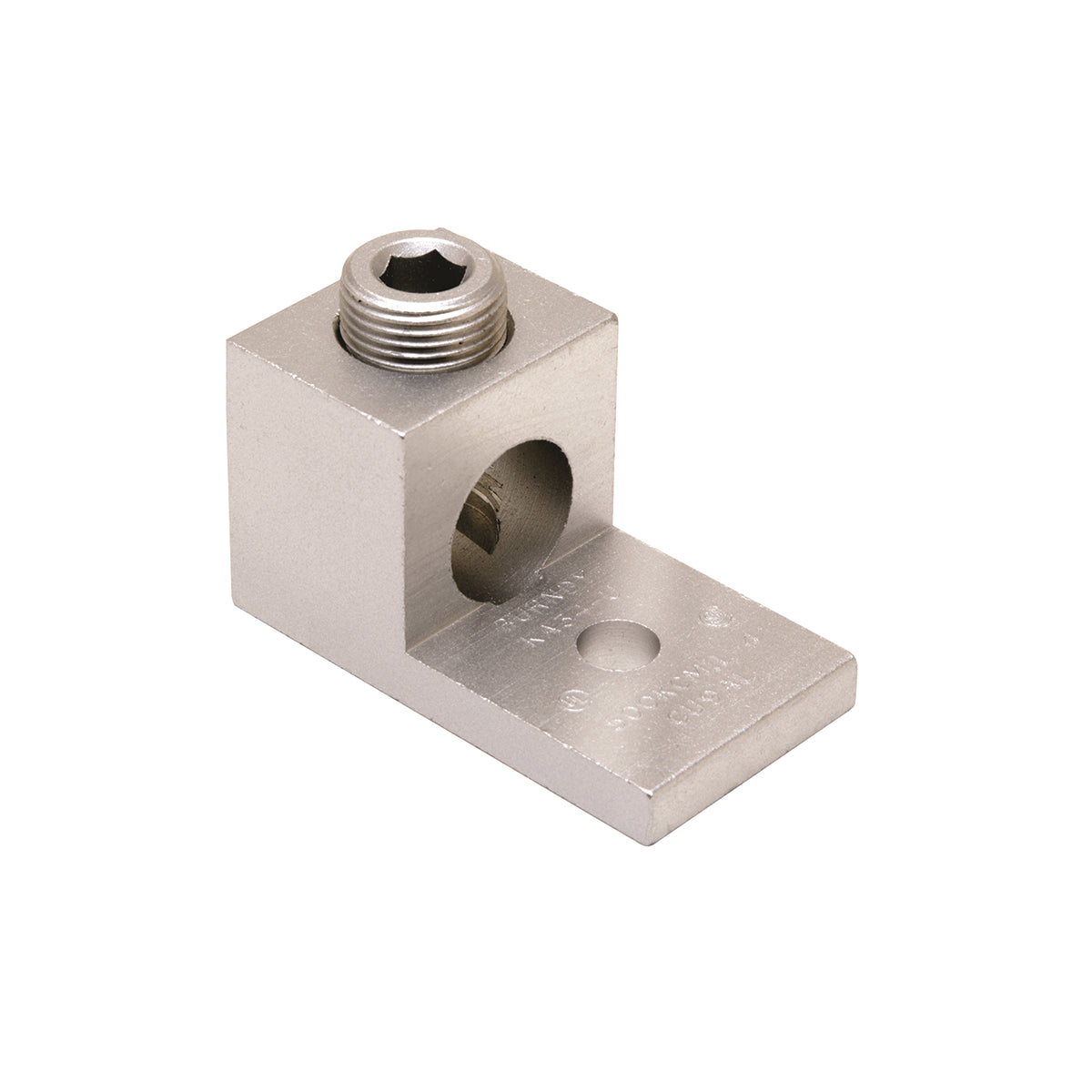

Hubbell KA31U KA-U Dual Rated Universal Mechanical Bolted Lug and Terminal 6 AWG to 350 kcmil Aluminum/Stranded Copper Conductor

Product Description

The Hubbell KA31U is a dual rated universal mechanical bolted lug designed for use with aluminum and stranded copper conductors. This product supports conductor sizes from six AWG to three hundred fifty kcmil and features a three-eighths inch stud. It has a single bolt hole and comes with a straight tongue.

• For use with aluminum and stranded copper conductors
• Temperature rating of one hundred ninety-four degrees Fahrenheit
• Electro-zinc plated for low contact resistance

Product Highlights

The Hubbell KA31U lug is built for reliability in electrical connections and features a robust design that meets industry standards.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181037020

Technical Specifications

• Application: For aluminum and copper conductors
• Conductor Size: 6 AWG to 350 kcmil
• Conductor Type: Aluminum/Stranded Copper
• Dimensions: 2.25 in L x 1.12 in H
• Finish: Electro-Zinc Plated
• Material: Aluminum
• Number of Bolt Holes: 1
• Series: KA-U
• Temperature Rating: 194 deg F
• Tongue Size: 1.14 in W x 0.25 in THK
• Tongue Type: Straight
• Type: Dual Rated Universal
